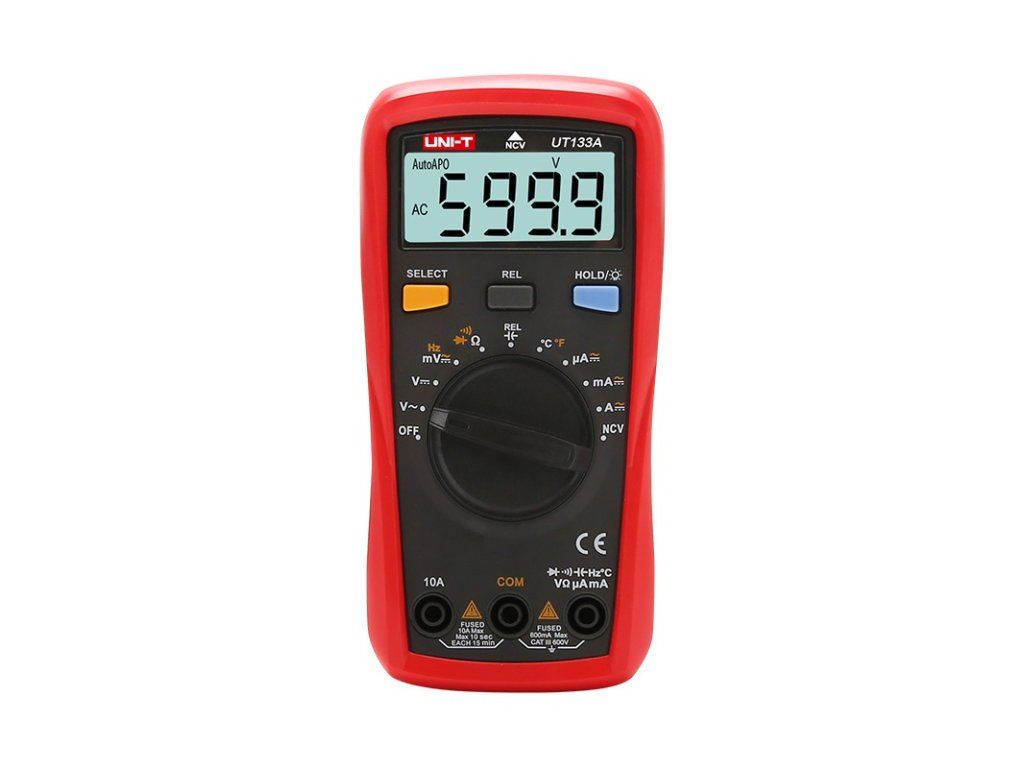

UNI-T UT133A multimeter

Product detailed description

The new generation of UT133 series multimeters offers a higher standard of measurement in the more affordable category of digital multimeters. The innovative and industrial design ensures the multimeter is shock and drop resistant from up to two meters. The new LCD display layout is clearer and more practical for all users, plus the display has a backlight option. TECHNICAL SPECIFICATIONS AC voltage measurement (AC) - 600 V AC current measurement (AC) - 10 A DC voltage measurement (DC) - 600 mV / 600 V DC current measurement (DC) - 600 µA / 10 A Resistance measurement - 600 Ohm / 60 MOhm Capacitor Capacitance Measurement - 9.999 nF / 9.999 mF Frequency measurement - 10Hz -1.000MHz Temperature measurement -40°C -1000°C Line continuity test (buzzer) Diode test Automatic range selection NCV measurement Reverse polarity detection Data hold function Backlit display Automatic shutdown when idle Measurement cables, temperature probe (K-type) included Low battery indication Overload protection, fuse protection Operating temperature : 0 - 40°C Dimensions (mm) : 76.5 x 155 x 49 Power supply : 2 x 1.5 V AAA batteries (included) Weight : approx. 255 g (including batteries) Technical parameters AC voltage measurement (range, resolution, accuracy): 600.0 mV / 0.1 mV / ± (1.0%+2) 6.000 V/ 6000mV // 0.001 V/ 1mV // ± (0.7 %+3) 60.00 V / 0.01 V / ± (1.0 %+2) 600.0 V / 0.1 V / ± (1.2 %+3) AC current measurement (range, resolution, accuracy): 600.0 µA / 0.1 µA / ± (1.2%+3) 6000 µA / 1 µA / ± (1.2 %+3) 60.00 mA / 0.01 mA / ± (1.2 %+3) 600.0 mA / 0.1 mA / ± (1.2 %+3) 6.00 A / 0.001 A / ± (1.5 %+5) 10.00 A / 0.01 A / ± (1.5 %+5) DC voltage measurement (range, resolution, accuracy): 600.0 mV / 0.1 mV / ± (0.7 %+3) 6.000 V/6000 mV // 0.001V/1 mV // ± (0.5%+2) 60.00 V / 0.01 V / ± (0.7 %+3) 600.0 V / 0.1 V / ± (0.7 %+3) DC current measurement (range, resolution, accuracy): 600.0 µA / 0.1 µA / ± (1.0%+3) 6000 µA / 1 µA / ± (1.0 %+3) 60.00 mA / 0.01 mA / ± (1.0 %+3) 600.0 mA / 0.1 mA / ± (1.0 %+3) 6 A / 0.001 A / ± (1.2 %+5) 10.00 A / 0.01 A / ± (1.2 %+5) Resistance measurement (range, resolution, accuracy): 600.0 Ohm / 0.1 Ohm / ± (1.0 %+2) 6.000 kOhm/6000 Ohm // 0.1k ?/ 1? // ± (0.8 %+2) 60.00 kOhm / 0.01 kOhm / ± (0.8 %+2) 600.0 kOhm / 0.1 kOhm / ± (0.8 %+2) 60.00 MOhm / 0.01 MOhm / ± (2 %+5) Capacitor capacitance measurement (range, resolution, accuracy): 9.999 nF / 0.001 nF / in REL mode ± (4 %+10) 99.99 nF / 0.01 nF / ± (4 %+5) 999.9 nF / 0.1 nF / ± (4 %+5) 9.999 µF / 0.001 µF / ± (4 %+5) 99.99 µF / 0.01 µF / ± (4 %5) 999.9 µF / 0.1 µF / ± (4 %+5) 9.999 mF / 0.001 mF / ± (10 %) Frequency measurement: 10.00Hz~1.000MHz ±(0.1%+5) Temperature measurement (range, resolution, accuracy): -40°C~1000°C / 1°C ±(1%+4) -40°F ~ 1832°F / 1°F / ±(1.5%+5) Dimensions: 76.5 x 155 x 49 mm Power: 2 x AAA 1.5 V batteries (included) Weight: approx. 255 g (including batteries) Operating temperature: 0 - 40°C PACKAGE CONTENTS: - Multimeter - Battery - Measuring tips - K-type thermocouple - Instructions for use
