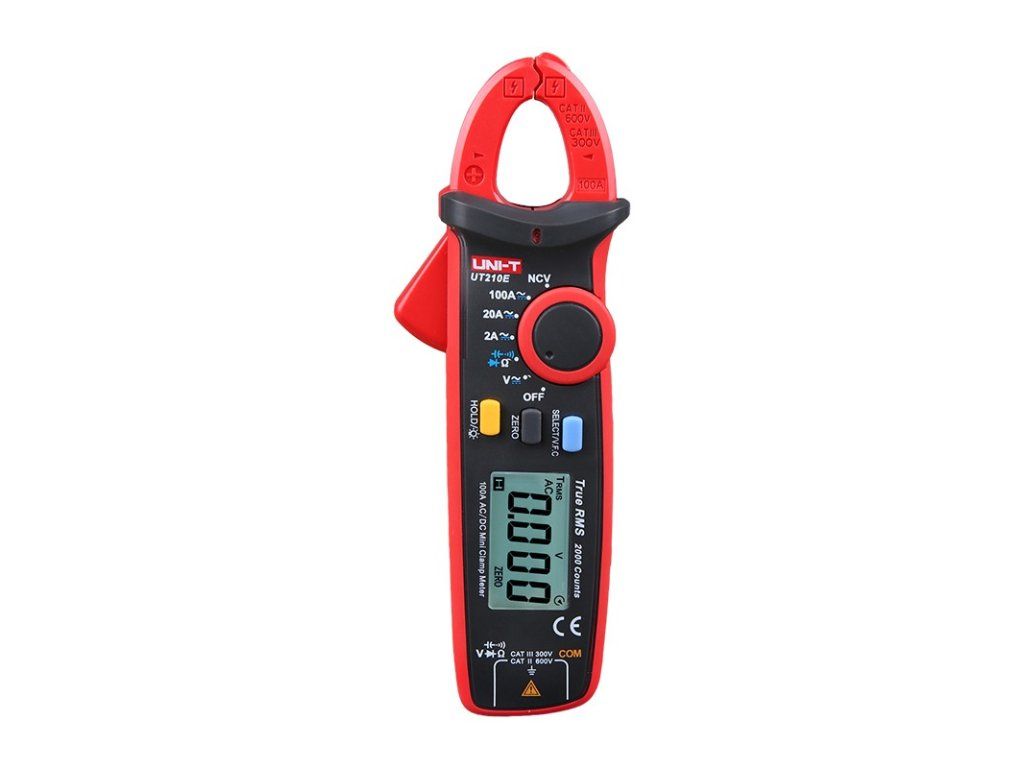

UNI-T UT210E clamp-on multimeter

Product detailed description

The UT210E is a handy professional instrument ideal for quick electrical tests. This pocket-sized meter with TRUE RMS function can measure AC and DC voltages 2A/20A/100A as well as resistance or capacitance. The instrument is equipped with a VFC function that eliminates high frequency interference from the mains that can negatively affect the measurement result. TRMS Automatic range adjustment Fine range for measuring smaller currents Non-contact voltage detection function Small size TECHNICAL SPECIFICATIONS: - Alternating (AC) current: 2A / 20A / 100A - Accuracy ±(2.5%+5) - DC current: 2A / 20A / 100A - accuracy ±(2.5%+3) - Alternating (AC) voltage: 2V / 20V / 200V / 600V - accuracy ±(1%+3) - DC voltage: 200mV / 2V / 20V / 200V / 600V - accuracy ±(0.7%+3) - Resistance: 200Ohm / 2kOhm / 20kOhm / 200kOhm / 2MOhm / 20MOhm - accuracy ±(1%+2) - Capacitance: 2nF / 20nF / 200nF / 2µF / 20µF / 200µF / 2mF / 20mF - accuracy ±(4%+5) FUNCTIONS Max. display reading 2000 Automatic range adjustment Clamp diameter 17mm TRMS NCV Data Hold MAX/MIN mode Zero mode Display backlight Automatic shutdown Annunciation Low battery indication Input protection Input impedance for DCV 10MOhm GENERAL CHARACTERISTICS Power supply: 2 x 1.5V AAA batteries Weight: 170g Dimensions: 175x60x33mm LCD Dimensions: 39x26mm PACKAGING CONTENTS: - Multimeter - Battery - Tips - Instructions
