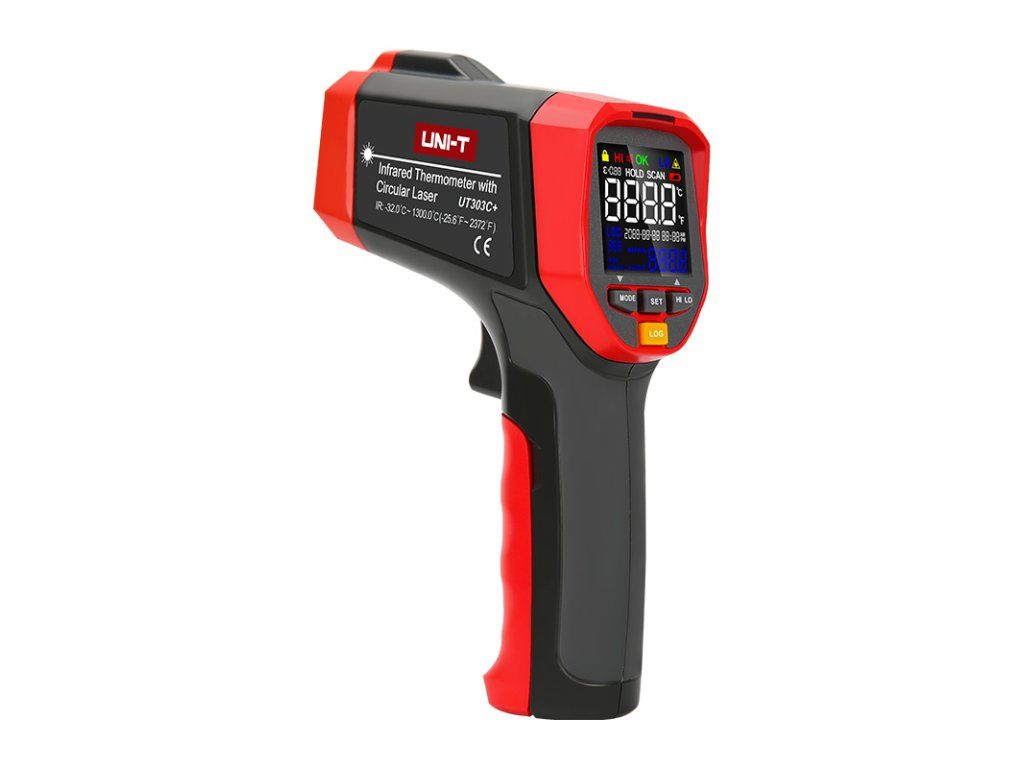

UNI-T UT303C+ non-contact thermometer

Product detailed description

This product comes with a 3-year warranty. The UT303C+ infrared thermometer can quickly and accurately determine surface temperatures between -32°C and +1300°C by measuring the infrared energy emitted from the target surface. For easier and more intuitive aiming of the instrument at the target surface, a unique ring laser aiming indication is built in, which only Uni-Trend offers on its instruments. The ratio of distance to diameter of the surface to be measured is 30:1. It is possible to preset the emissivity of the surface to be measured from 0.1 to 1.0 and store the 5 most commonly used emissivities in memory. The indication of the preset functions and measured values is provided by a bright and contrasting EBTN colour display and the limit values are indicated by red, green and blue LEDs at the top edge of the instrument and a buzzer. It is possible to set the system time and schedule repeat measurements in the future with a set interval and store up to 99 measured values in memory. For each stored value, the measurement time is also stored. These measurements use the built-in standard hole for attachment to a tripod. The temperature measurement time is up to 250msec in 95% of cases. It is possible to set a minimum and maximum limit of values, and if values are measured outside this interval, this is indicated acoustically and visually. Indication of minimum, maximum and average temperatures and deviations from the average ( MIN, MAX, AVG, DIF ) is possible. Product parameters : - infrared thermometer for non-contact measurement of surface temperatures - temperature range - 32°C to + 1300°C, can be switched to °Fahrenheit - delineation of the surface to be measured by circular laser indication - setting and storage of 5 emissivity values in memory - the ratio of the distance to the diameter of the surface to be measured is 30:1 - 35 x 35 mm EBTN contrast colour display - indication of limit values by red, green, blue LEDs and buzzer - accurate system time, programming of interval temperature measurement - memory for 99 sets of measurements - tripod mounting hole Specifications : - temperature range: -32°C to 1300°C (-25.6? to 2372?) - temperature measurement accuracy less than or equal to 0°C: ±1.5°C or ±1.5% of measurement, whichever is greater - temperature measurement accuracy <0°C: ± (1.5°C + 0.1°C /°C measurement, whichever is greater) - temperature measurement accuracy less than or equal to 32°F: ± 3.0°F or ± 1.5% of the measurement, whichever is greater - temperature measurement accuracy <32°F: ± (3.0°F + 0.1°F /°F measurement, whichever is greater) - measurement repeatability: 0.7°C or 0.7% (1.5°F or 0.7% of measurement, whichever is greater) - spectral response: 8µm to 14µm - response time 95% of the time: 250 ms - the distance to diameter ratio of the surface to be measured for this instrument is 30:1 - delineation of the circular measurement area by the laser: yes - class 3R circular laser: wavelength 630nm to 670nm, output power ?3mW - display: 35 x 35 mm contrast colour EBTN back-illuminated display - limit indication by red, green, blue LEDs and buzzer - emissivity adjustment of the measured surface between 0.1 and 1.0 - 5 types of emissivity can be stored in memory - 5 sets of preset high/low temperature warning values can be stored in memory - measurement lockout for processes that require long-term temperature monitoring - system time, programming of interval temperature measurement - memory for 99 sets of measurements - automatic shutdown during inactivity - power supply: 9V battery (1604A) - battery life: continuous temperature measurement ?8 hours - low battery indication: yes - drop test from height: 1 m - tripod mounting hole: yes - mAX / MIN / AVG / DIF value suspension - operating temperature: 0°C to 50°C (32°F to 122°F) - operating humidity: <90% RH (non-condensing) - storage temperature: -20°C to 60°C (-4°F to 140°F) - product color: red and gray - net product weight: 310 g - product size (HxWxD): 172 x 113.5 x 53 mm Package contents : - uT303C+ thermometer: 1pc - 9V battery: 1pc - packaging: 1pc blister - manual: 1pc Packaging for wholesale customers : - standard carton quantity: 10pcs - standard carton dimensions (HxWxD): 425 x 335 x 365 mm - total carton weight: 6,65 kg
