UNI-T UT526 Multifunction Tester

Product detailed description

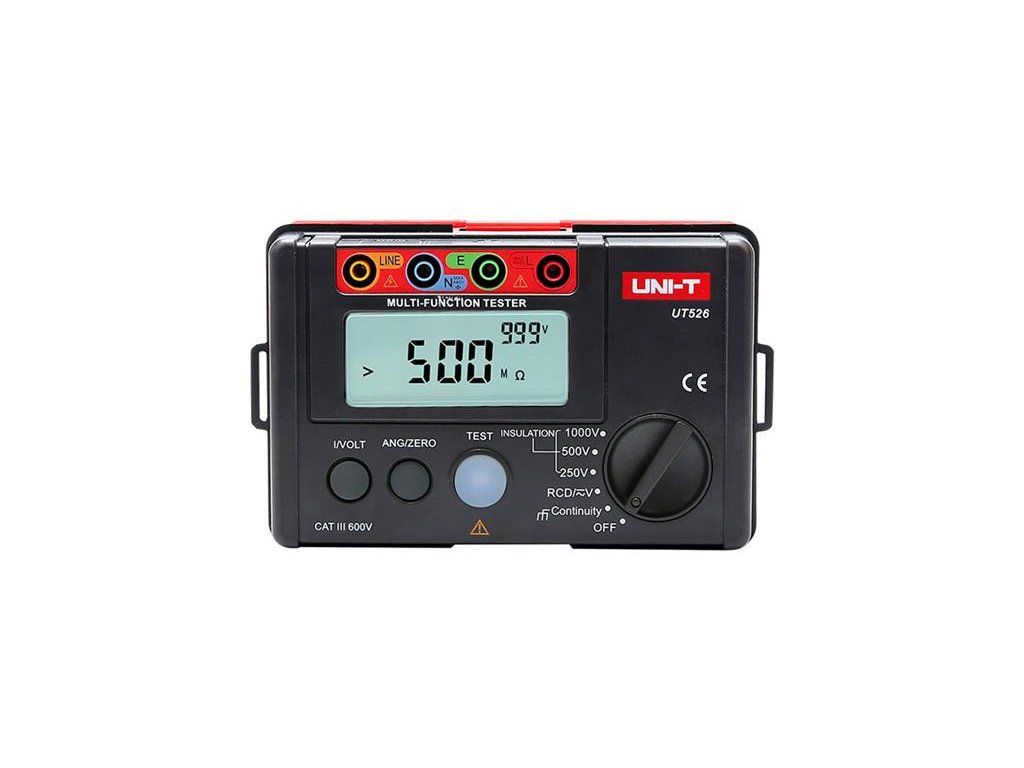

UNI-T UT526 Multifunction Tester
The UT526 instrument is a universal measuring and testing instrument for carrying out inspections of electrical appliances. It allows checking the equipment of current protectors, measuring the resistance of the grounding loop, measuring the insulation resistance, measuring the frequency of AC voltage, and measuring DC and AC voltage. The instrument is newly designed in a rugged enclosure with new analog, digital and microprocessor circuits.
This instrument has been designed, manufactured and tested to IEC61010 (Safety Requirements for Electrical Equipment) safety standard in the CATIII 600V overvoltage category. It fully complies with STN EN 61557 for measuring insulation and transient resistance.


Product Parameters :

- maximum display: 9999
- display dimensions: 71 x 34 mm
- display shows: function modes, value, units and symbols
- range switching: automatic
- measurement of equipment time of current protectors: types 10mA, 30mA, 100mA, 300mA
- ground loop measurement: in the range of 0.01Ω to 2000Ω
- insulation resistance measurement: 0.05 MΩ to 1MΩ
- aC voltage frequency measurement: in the range of 20Hz to 100Hz
- aC and DC voltage measurement: 0V to 440V
- power supply: 6 pcs alkaline battery 1.5 V AA
- an indispensable helper for every inspection technician
- calibration protocol must be ordered separately
- incredible price/performance ratio


Technical parameters :

Measurement of the equipping time of current protectors
measuring current: 10mA/30mA/100mA/300mA
measuring voltage: 220V ±10%, frequency 45Hz to 65Hz
current measurement accuracy at AC 220V: ±(10% + 2)
time measurement range at 10mA current: 0 to 2000msec
time measurement range at current 30mA): 0 to 500msec
time measurement range at current 100mA): 0 to 300msec
time measurement range at 300mA current): 0 to 300msec
timekeeping accuracy: ±(5%+2)


Grounding loop measurement
measuring nominal voltage: approx. 5.0V
measuring current: >200mA, for < 2Ω
loop resistance measurement range: 0.01Ω to 2000Ω
measurement accuracy: 0.01Ω to 2000Ω ±(2%+5)


Insulation resistance measurement
test rated voltage at no-load: DC 250V ±10% or 500V ±10% or 1000V ±10%
measuring range: 0.05 to 200MΩ, or 0.05 to 300MΩ, or 0.05 to 500MΩ
rated measuring current at 250kΩ, 500kΩ or 1MΩ load: 0.9mA to 1.1mA
short-circuit current: <1.8mA
measurement accuracy in the range 0.05 MΩ to 500 MΩ: ±(5%+5)


AC and DCV voltage measurement
dC measurement range: 0 to ±440V
aC measurement range: 0 to 440V (50/60Hz)
resolution: 1V
measurement accuracy: ±(2%+3)
voltage measurement in the range <10V: reference only


Frequency measurement
measuring range: 20Hz to 100Hz
resolution: 1Hz
measurement accuracy: reference only



General parameters :

- low battery indication: yes, symbol " " on the display
- overload indication (out of range): yes, "OL" symbol on the display
- power supply: battery AA 1.5V, 6 pieces
- current consumption: basic approx. 10mA, approx. 50mA at 1000V range
- lCD display size: 71 x 34 mm
- working environment: temperature 0 to +40°C, humidity max. 85% RH
- accuracy is guaranteed in the following environment: temperature: 23 ±5°C, humidity: 45-75% RH
- storage environment: temperature -20°C to +60°C, humidity max. 90% RH
- dimensions of the instrument: 160 x 100 x 71 mm
- colour of the device: red and grey
- instrument weight: 380g
- weight: 0.7 kg (including batteries and packaging)


Contents of the individual package :

- uT526: 1pc
- battery 1.5 V, AA: 6pcs
- test cables with crocs: 3 pcs (red, green, blue)
- case: 1pc
- instructions for use: 1pc


Wholesale packaging :

- standard quantity per carton: 10pcs
- standard carton size: 445 x 440 x 180 mm (0.063 CBM)
- total weight of standard carton: 12.8 kg


Manufacturer
www.uni-t.cz
