UNI-T UT663B endoscope

Product detailed description

We offer a 3-year warranty on this product.

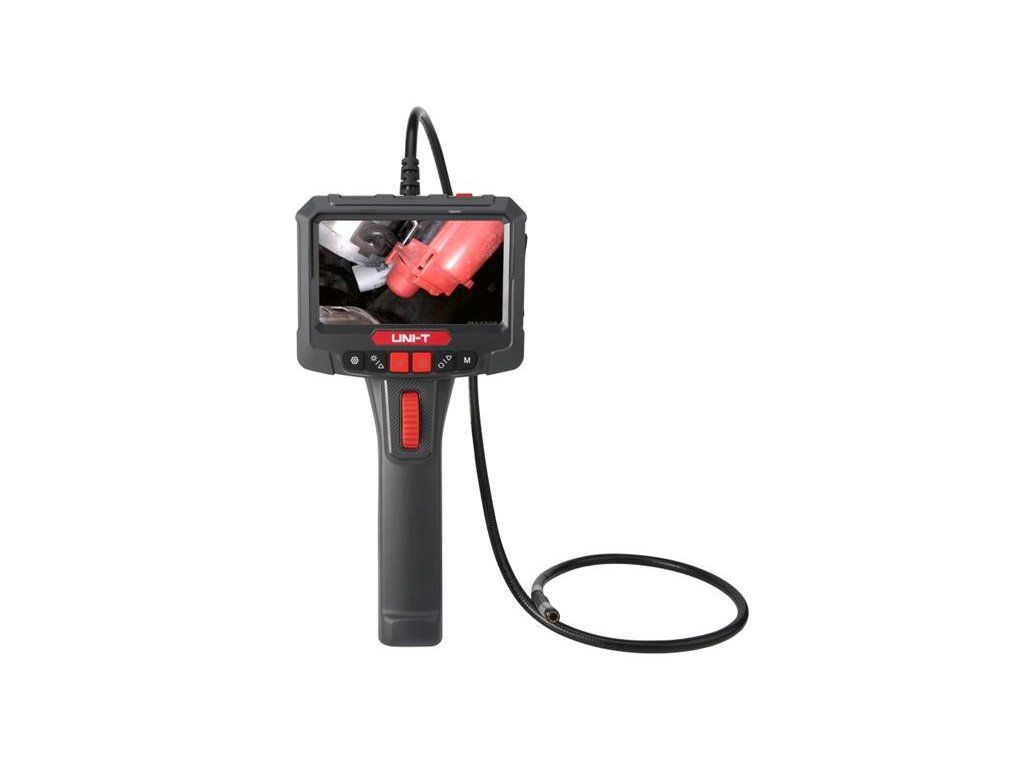

UNI-T UT663B 360° rotatable industrial boroscope.
The UNI-T UT663B Series Industrial Endoscope is specifically designed and manufactured to meet market demands for complex environments that are beyond the reach of the human eye. The camera features 180° bidirectional rotation, allowing it to move around blind spots and adjust angles, making it suitable for a variety of narrow and curved spaces that are difficult to access.
It is used to inspect engines, pipes, vents, cavities in building walls, drain pipes and other hard-to-reach places. The camera probe is mounted on the end of a 1 metre long mouldable cable and is fitted with LED lighting, the flexible serpentine tube can be bent to the desired shape. The ergonomic handle design offers a good grip and is non-slip and impact resistant. The probe is IP67 rated and can be submerged in water. The UT663B is an indispensable tool in the automotive and mechanical engineering industry, service stations, workshops or construction.


Product Parameters :

- certification:CE, RoHS
- 5″ HD Color display
- 8 LEDs with adjustable brightness
- 180° bidirectional rotation
- taking photographs
- battery : Li-ion
- high temperature shutdown protection
- iP67 camera
- flexible cable length: 1 m


Technical parameters:

- display size: 5″ HD Color
- camera resolution: 1920 x 1080 pixels JPG, 1920 x 1080 pixels AVI
- basic functions: photo capture, video recording, playback, high temperature warning, image rotation, audio recording
- standard 32 GB-TF storage (maximum 64 GB)
- angle of rotation : 180° bidirectional
- flexible cable length: 1 m

- probe diameter with lens: 8 mm
- light sensor chip: CMOS
- lens angle of view (FOV) : 70°
- lens focus (DOF): 20mm to 100mm
- light intensity adjustment: 4 levels + off
- field of view illumination: 8 LEDs
- lens pixels: 1000 K
- probe housing resistance: IP67

- power supply: battery 3.7 V / 3000 mAh
- battery life: 4 h

Working conditions:
- lens temperature 0 °C to 80 °C
- working temperature: 0 to 45 °C
- humidity: < 90%RH

- dimensions of the instrument: 273 mm x 66 mm x 139 mm
- product weight: 690 g


Contents of the package:
- endoscopic camera
- detachable probe with lens
- 32GB-TF card
- instructions for use

- standard quantity per carton: 6pcs

MANUFACTURER: UNI-TREND
