UNI-T UT665P endoscope

Product detailed description

We offer a 3-year warranty on this product.

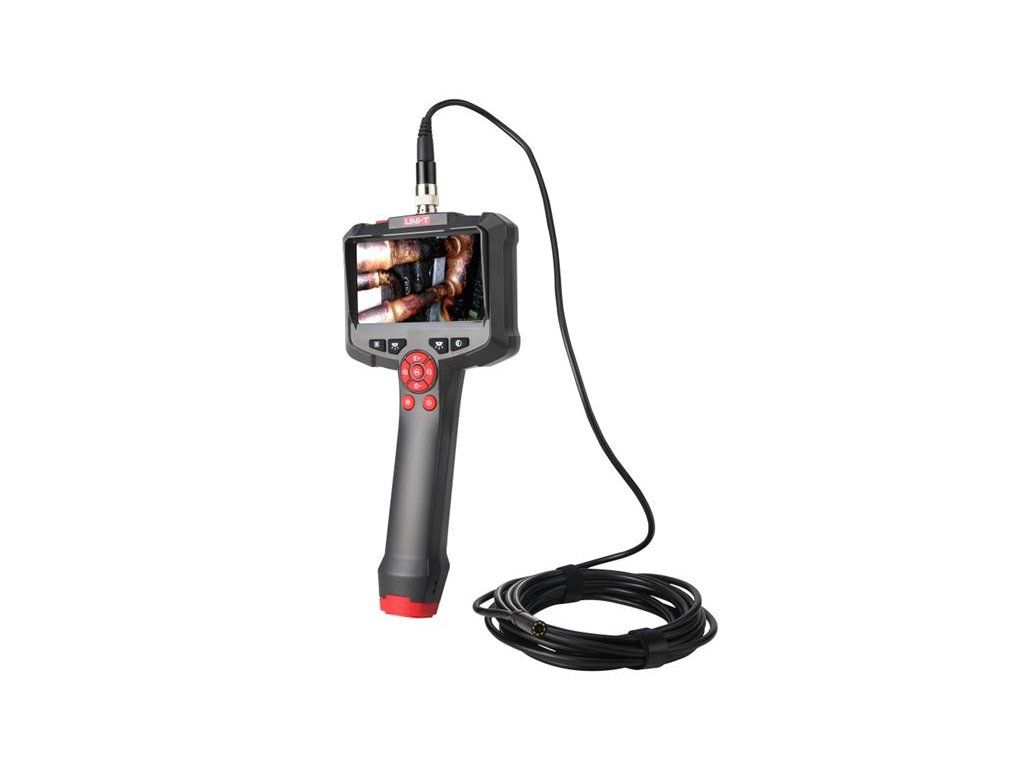

UNI-T UT665P handheld industrial boroscope with one lens.
The UT665P Series Industrial Endoscope is professionally designed and manufactured to meet the market demands for complex environments that are inaccessible to the human eye. It is used to inspect engines, pipes, vents, cavities in building walls, drain pipes and other hard-to-reach places. The camera probe is mounted on the end of a 1 metre long mouldable cable and is fitted with LED lighting, the flexible serpentine tube can be bent to the desired shape. The ergonomic handle design offers a good grip and is non-slip and impact resistant. The user-friendly user interface interface makes operation simple and clear and ensures easy communication. The probe is IP67 rated and can be submerged in water. The UT665P is an indispensable tool in the automotive and mechanical engineering industry, service stations, workshops, or construction.


Product Parameters :

- certification:CE, RoHS
- display: 4.3″
- 8 LEDs with adjustable brightness
- battery : Li-ion
- iP67 camera
- image rotation
- flexible cable length: 1 m


Technical parameters:

- display size: 4.3″
- system language: english
- camera resolution: 1280 x 720 pixels
- basic functions: screen rotation, contrast adjustment, black and white image, color conversion, zoom in and out, screen brightness adjustment
- flexible cable length: 1 m

- probe diameter with lens: 8 mm
- light sensor chip: CMOS
- lens angle of view (FOV) : 70°
- lens focus (DOF): 20mm to 100mm
- light intensity adjustment: 4 levels + off
- field of view illumination: 8 LEDs
- lens pixels: 300 K
- probe housing resistance: IP67

- power supply: battery 3.7 V / 2000 mAh
- battery life: 6 h

Working conditions:
- lens temperature 0 °C to 80 °C
- working temperature: 0 to 45 °C
- humidity: < 90%RH

- dimensions of the instrument: 256 mm x 120 mm x 50 mm
- product weight: 270 g


Contents of the package:

- endoscopic camera UT665P: 1pc
- detachable probe with lens: 1pc
- hook, side mirror, magnet, fixed clasp
- instructions for use

- standard quantity per carton: 20 pcs

MANUFACTURER: UNI-TREND
