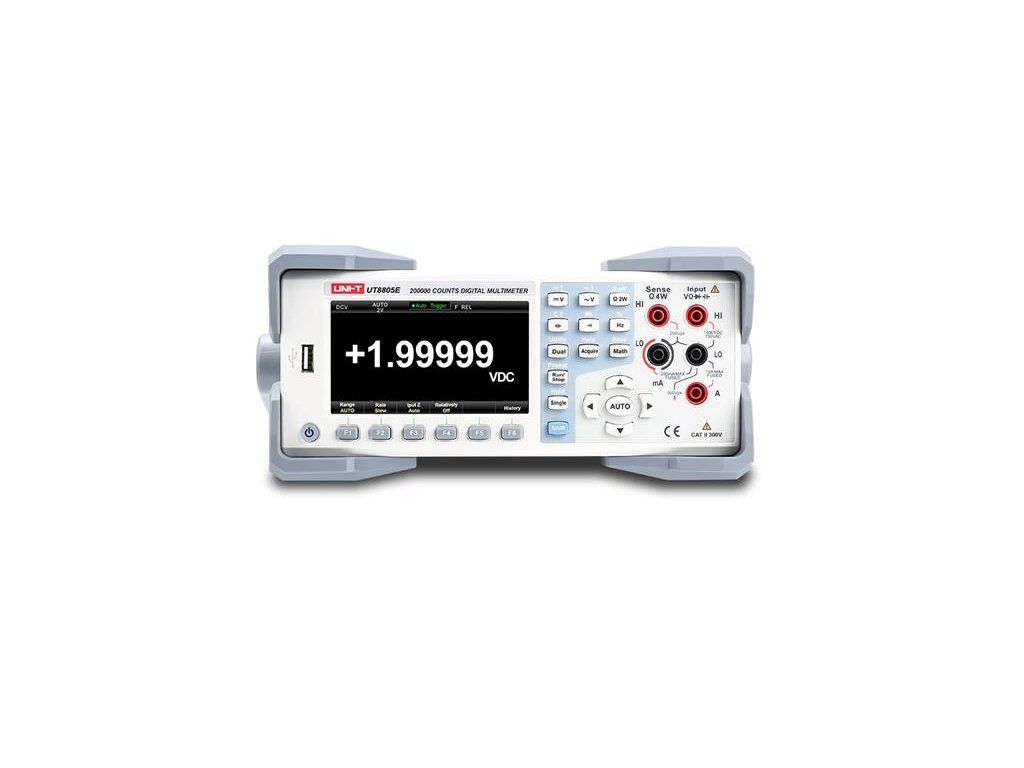

UNI-T UT8805E bench multimeter

Product detailed description

We offer a 3-year warranty on this product.

The UT8805E is a benchtop digital multimeter with a maximum display value of 199999 with automatic or optional manual range adjustment, color display, and true RMS value measurement function. Its circuit design utilizes large scale (LSI) analog-to-digital (A/D) converters, a microprocessor, multi-function measurement, and highly stable thin-film resistor fabrication technology, making it a digital multimeter with excellent performance.
The instrument can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, temperature, frequency, pulse width, diode testing and circuit continuity, etc. In addition, it also has data storage function, maximum/minimum/average value measurement, measurement with comparison function, relative value measurement, peak value detection, tendency graph capture, and the ability to record/read up to 10,000 data records.
The UT8805E comes with a 4.3 inch 480 x 272 pixel resolution TFT color display that allows for a versatile and clear display of measurement results using bar graph readings or trend graphs. The display allows dual data display, e.g. when measuring AC voltages or currents it also displays the frequency, when measuring temperature it also displays the thermocouple resistance, etc.
It is a high-end electrical measuring instrument suitable for measurement in electronics, communications, manufacturing, national defense, electric power, chemical and other industries. This instrument strictly complies with IEC61010-1, EN61010-2-030 safety standards, pollution level II, CATI 1000V overvoltage, CAT II 300V, it is equipped with double insulation, waterproof and dustproof with IP65 protection. It is an indispensable experimental tool for various colleges.


Product Parameters :

- display type: 4.3" TFT-LCD with 480 x 272 px resolution
- number of display positions: 200 000
- measurement speed: 5000 rdgs/s (2.5 reads/s; 10 reads/s; 5000 reads/s)
- dual display: yes, simultaneous display of two quantities
- dC voltage measurement: ranges 200mV to 1000V
- dC current measurement: ranges 200μA to 10A
- aC True-RMS voltage measurement: ranges 200 mV to 750 V
- aC True-RMS current measurement: ranges 2mA to 10A
- resistance measurement: ranges 200Ω to 100MΩ (optional 2- and 4-wire resistance measurement)
- capacitance measurement: ranges 2nF to 2000μF
- frequency range: 20Hz to 1MHz, AC True-RMS voltage/currents 20Hz to 100kHz
- circuit continuity test and diode test: yes
- temperature measurement: with built-in thermocouple with cold end compensation
- temperature measurement with external thermocouple: yes, preset conversions for ITS-90, Pt100 and Pt385 and thermocouple types B, E, J, K, N, R, S, T
- various mathematical operations: maximum, minimum, mean, standard deviation, pass/fail, dBm, dB, relative measurement, histogram, trend graph, bar graph
- supports USB, GPIB, RS-232C and LAN, USB-TMC, IEEE 488.2 standard, VXI11 and SCPI language
- compatible with the latest SCPI command set for mainstream multimeter
- recording and storage of historical data
- possibility to save data and configure settings on a USB drive
- 1GB NAND FLASH storage, high-capacity memory system and test data
- english and Chinese menus and online help system
- software for the supervisor PC
- wide supply voltage range


Technical parameters :

- maximum measured voltage: 1000 V (DC) / 750 V (AC)
- input terminal protection 10A : (CE) F1, internal slow fuse 10 A /250 V
- input terminal protection μA, mA : (CE) F2, 250mA/250V fast fuse on rear panel
- 4.3" TFT colour display: dual, full icon display; maximum 200000, 480 x 272pixels
- range selection : automatic or manual
- polarity display: automatic
- mathematical operations: pass/fail, relative, min/max/average, standard deviation, dBm, dB, hold, histogram, trend graph, bar graph


Specification of measurement ranges :

- 1.DC voltage measurement ( range / input impedance / accuracy % (90 days) / (1year )) :
200,000 mV / 10MΩ or >10GΩ / 0.008+0.004 / 0.01+0.004
2.00000 V / 10MΩ or >10GΩ / 0.008+0.003 / 0.01+0.003
20.0000 V / 10MΩ or >10GΩ / 0.008+0.004 / 0.01+0.004
200,000 V / 10MΩ / 0.012+0.003 / 0.015+0.003
1000.00 V / 10MΩ / 0.012+0.003 / 0.015+0.003

- 2.DC current measurement ( range / input voltage drop / accuracy % (90 days) / (1year )) :
200,000 μA / <30 mV / 0.050+0.005 / 0.055+0.005
2.00000 mA / <0.3 V / 0.050+0.005 / 0.055+0.005
20.0000 mA / <30 mV / 0.070+0.020 / 0.095+0.020
200,000 mA / <0.3 V / 0.060+0.008 / 0.070+0.008
2.00000 A / <0.1V / 0.150+0.020 / 0.170+0.020
10.0000 A / <0.3V / 0.200+0.010 / 0.250+0.010

- 3. resistance measurement ( ranges / max. test current / accuracy % (90 days) / (1year )) :
200,000 Ω / 1mA / 0.012+0.005 / 0.030+0.005
2.00000 kΩ / 1mA / 0.012+0.003 / 0.020+0.003
20.0000 kΩ / 100μA / 0.012+0.003 / 0.020+0.003
200,000 kΩ / 10μA / 0.012+0.004 / 0.020+0.004
2.00000 MΩ / 1μA / 0.020+0.004 / 0.040+0.004
10.0000MΩ / 500nA / 0.100+0.004 / 0.250+0.004
100 000 MΩ / 500 nA ‖ 10MΩ / 0.800+0.004 / 1.75+0.004



- 4.True RMS AC voltage measurement ( ranges / frequency range / accuracy % (90 days) / (1year )) :
200,000 mV / 20Hz to 45Hz / 1.5+0.10 / 1.5+0.10
45Hz to 20kHz / 0.19+0.05 / 0.2+0.05
20 kHz to 50 kHz / 1.0+0.05 / 1.0+0.05
50 kHz to 100 kHz / 3.0+0.05 / 3.0+0.05

2.00000 V / 20Hz to 45Hz / 1.5+0.10 / 1.5+0.10
45Hz to 20kHz / 0.19+0.05 / 0.2+0.05
20 kHz to 50 kHz / 1.0+0.05 / 1.0+0.05
50 kHz to 100 kHz / 3.0+0.05 / 3.0+0.05

20.0000 V / 20Hz to 45Hz / 1.5+0.10 / 1.5+0.10
45Hz to 20kHz / 0.19+0.05 / 0.2+0.05
20 kHz to 50 kHz / 1.0+0.05 / 1.0+0.05
50 kHz to 100 kHz / 3.0+0.05 / 3.0+0.05

200,000 V / 20Hz to 45Hz / 1.5+0.10 / 1.5+0.10
45Hz to 20kHz / 0.19+0.05 / 0.2+0.05
20 kHz to 50 kHz / 1.0+0.05 / 1.0+0.05
50 kHz to 100 kHz / 3.0+0.05 / 3.0+0.05

750,000 V / 20Hz to 45Hz / 1.5+0.10 / 1.5+0.10
45Hz to 20kHz / 0.19+0.05 / 0.2+0.05
20 kHz to 50 kHz / 1.0+0.05 / 1.0+0.05
50 kHz to 100 kHz / 3.0+0.05 / 3.0+0.05



- 5.True RMS AC current measurement ( ranges / frequency range / accuracy % (90 days) / (1year )) :
2.00000 mA / 20Hz to 45Hz / 1.5+0.10 / 1.5+0.10
45Hz to 2kHz / 0.5+0.10 / 0.5+0.10
2kHz to 10kHz / 2.5+0.20 / 2.5+0.20

200,000 mA / 20Hz to 45Hz / 1.5+0.10 / 1.5+0.10
45Hz to 2kHz / 0.5+0.10 / 0.5+0.10
2kHz to 10kHz / 2.5+0.20 / 2.5+0.20

200000 mA / 20Hz to 45Hz / 1.5+0.10 / 1.5+0.10
45Hz to 2kHz / 0.3+0.10 / 0.3+0.10
2kHz to 10kHz / 2.5+0.20 / 2.5+0.20

2.00000 A / 20Hz to 45Hz / 1.5+0.20 / 1.5+0.20
45Hz to 2kHz / 0.5+0.20 / 0.5+0.20
2kHz to 10kHz / 2.5+0.20 / 2.5+0.20

10.0000 A / 20Hz to 45Hz / 1.5+0.15 / 1.5+0.15
45Hz to 2kHz / 0.5+0.15 / 0.5+0.15
2kHz to 10kHz / 2.5+0.20 / 2.5+0.20



- 6. capacitance measurement ( ranges / max.test current / accuracy % (90days) / (1year )) :
2,000nF / 0.5μA / 2.8+1.0 / 3+1.0
20.00 nF / 1μA / 1+0.5 / 1+0.5
200.0nF / 10μA / 1+0.5 / 1+0.5
2,000μF / 100μA / 1+0.5 / 1+0.5
20.00μF / 1mA / 1+0.5
200.0μF / 1mA / 1+0.5
2,000 mF / 1 mA / 2+0.5 / 2+0.5



- 7. temperature measurement ( thermocouple type / cell temperature range / accuracy % (1year)) :
RTD α=0.00385 / -200°C to 660°C / 0.16°C
B / 0°C to 1820°C / 0.76°C
E / -270°C to 1000°C / 0.5 °C
J / -210°C to 1200°C / 0.5°C
K / -270°C to 1370°C / 0.5 °C
N / -270°C to 1300°C / 0.5°C
R / -50°C to 1760°C / 0,5 °C
S / -50°C to 1760°C / 0,6 °C
T / -270°C to 400°C / 0.5°C



- 8. frequency and duty cycle measurement ( ranges / accuracy % (90 days) / (1year )) :

20Hz to 2kHz / 0.01+0.003 / 0.01+0.003
2kHz to 20kHz / 0.01+0.003 / 0.01+0.003
20kHz to 200kHz / 0.01+0.003 / 0.01+0.003
200kHz to 1MHz / 0.01+0.005 / 0.01+0.006
AC voltage range 200mV to 750V.


- 9. circuit and diode continuity measurement
A constant current source of 1 mA ± 5% is used to measure the resistance or voltage drop across the diode.
The open circuit voltage is < 8V. The circuit continuity measurement threshold is adjustable. Indication option
buzzer.

General characteristics and mechanical properties :

- power supply: AC 90V-110V, 45-440Hz; AC 110V-132V, 45-440Hz; AC 200V-240V, 45-66Hz; AC 216V-264V, 45-66Hz
- power consumption: max. 20W
- operating environment: 0°C~28°C<90%; 28°C-40°C<75%; 40°C~55°C<50% (non-condensing)
- altitude: ≤2000 m
- dimensions: 260 mm x 116 mm x 332 mm
- weight: 4.4 kg
- colour: off-white and grey


Contents of the individual package :

- uT8805E desktop multimeter: 1pc
- three-wire power cord: 1pc
- test leads: 1 pair
- USB connection cable: 1pc
- rS232 connection cable: 1pc
- quick Guide UT8805E: 1pc
- uT8805E warranty card: 1pc
- computer software for PC: 1 set
