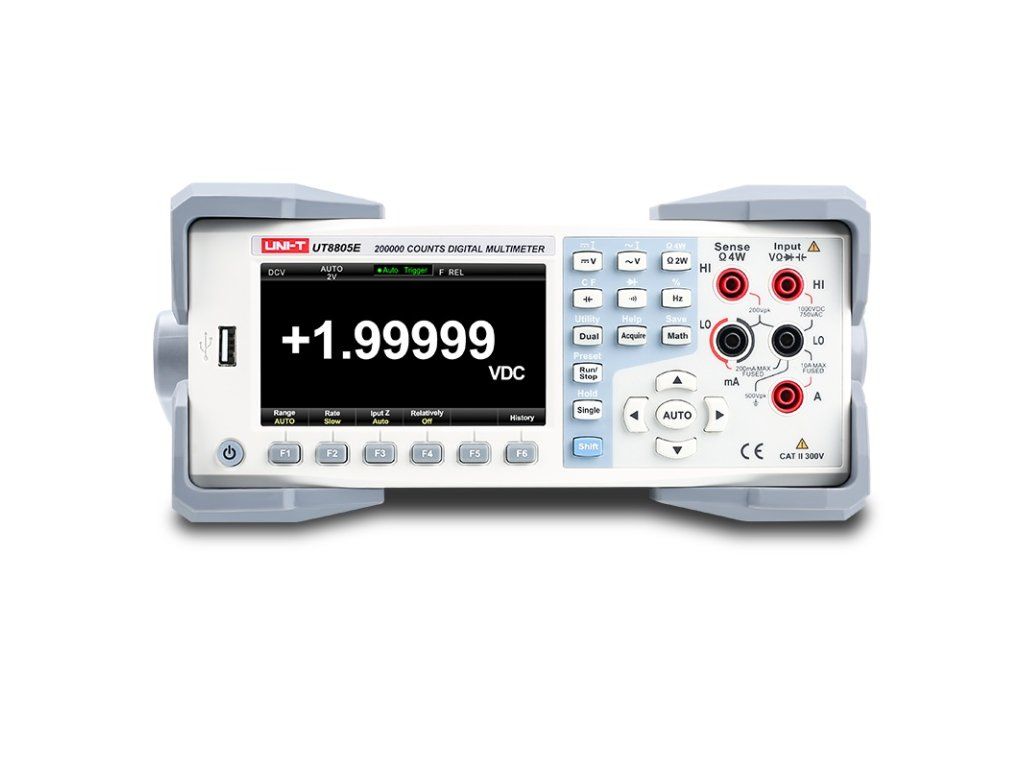

UNI-T UT8805E Benchtop Multimeter

Product detailed description

The UT8805E is a benchtop digital multimeter with a maximum display value of 199999 with automatic or optional manual range adjustment, color display and true RMS measurement function. Its circuit design utilizes large scale (LSI) analog-to-digital (A/D) converters, a microprocessor, multi-function measurement and highly stable thin film resistor technology, making it a digital multimeter with excellent performance. The instrument can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, temperature, frequency, pulse width, diode testing and circuit continuity, etc. In addition, it also has data retention function, maximum/minimum/mean value measurement, measurement with comparison function, relative value measurement, peak detection, trend graph capture and the ability to record/read up to 10,000 data records. The UT8805E comes with a 4.3-inch TFT color display with 480 x 272 pixel resolution, allowing for versatile and clear display of measurement results using bar graph readings or trend graphs. The display allows dual display of data, e.g. when measuring AC voltages or currents it also displays frequency, when measuring temperature it also displays thermocouple resistance, etc. It is a high-end electrical measuring instrument suitable for measurements in electronics, communications, manufacturing, national defense, electric power, chemical and other industries. This instrument strictly complies with the safety standards of IEC61010-1, EN61010-2-030, pollution level II, CATI 1000V overvoltage, CAT II 300V, it is double insulated, waterproof and dustproof with IP65 protection. It is an indispensable experimental tool for various colleges. - Display type: TFT-LCD with 4.3" diagonal and 480 x 272 px resolution - Number of display positions: 200,000 - Measurement speed: 5000 rdgs/s (2.5 reads/s; 10 reads/s; 5000 reads/s) - Dual display: yes, simultaneous display of two quantities - Circuit continuity test and diode test: yes - Temperature measurement: with built-in thermocouple with cold end compensation - Temperature measurement with external thermocouple: yes, preset conversions for ITS-90, Pt100 and Pt385 and thermocouple types B, E, J, K, N, R, S, T - Various mathematical operations: maximum, minimum, average value, standard deviation, pass/fail, dBm, dB, relative measurement, histogram, trend graph, bar graph - Supports USB, GPIB, RS-232C and LAN interfaces, USB-TMC, IEEE 488.2 standard, VXI11 and SCPI language - Compatible with the latest SCPI command set for mainstream multimeter - Historical data recording and storage - Ability to save data and configure settings to a USB drive - 1GB NAND FLASH storage, large capacity memory system and test data - English and Chinese menus and online help system - PC supervisor software - Wide power supply voltage range TECHNICAL SPECIFICATIONS: - DC voltage measurement: ranges 200mV to 1000V - DC current measurement: ranges 200µA to 10A - AC True-RMS voltage measurement: ranges 200mV to 750V - AC True-RMS Current Measurement: 2mA to 10A ranges - Resistance measurement: ranges 200Ohm to 100MOhm (optional 2- and 4-wire resistance measurement) - Capacitance measurement: 2nF to 2000µF ranges - Frequency range: 20Hz to 1MHz, AC True-RMS voltage/current 20Hz to 100kHz - 10A input terminal protection: (CE) F1, internal 10A /250V slow fuse - Input terminal protection µA, mA: (CE) F2, 250mA/250V fast fuse on rear panel - TFT 4.3" color display: dual, full icon display; 200000 max, 480 x 272pixels - Range selection: automatic or manual - Polarity display: automatic - Mathematical operations: pass/fail, relative, min/max/average, standard deviation, dBm, dB, hold, histogram, trend graph, bar graph General characteristics and mechanical properties : - power: AC 90V-110V, 45-440Hz; AC 110V-132V, 45-440Hz; AC 200V-240V, 45-66Hz; AC 216V-264V, 45-66Hz - power consumption: max. 20W - operating environment: 0°C to 28°C<90%; 28°C to 40°C<75%; 40°C to 55°C<50% (non-condensing) - altitude: ?2000 m - dimensions: 260 mm x 116 mm x 332 mm - weight: 4.4 kg - colour: grey and white Contents of individual packing : - uT8805E desktop multimeter 1pc - 3-core power cord 1pc - test leads 1 pair - USB connection cable 1pc - rS232 connection cable 1pc - uT8805E Quick Guide 1pc - uT8805E warranty card 1pc - computer software for PC 1 set
