Victron Energy Display GX

Product detailed description

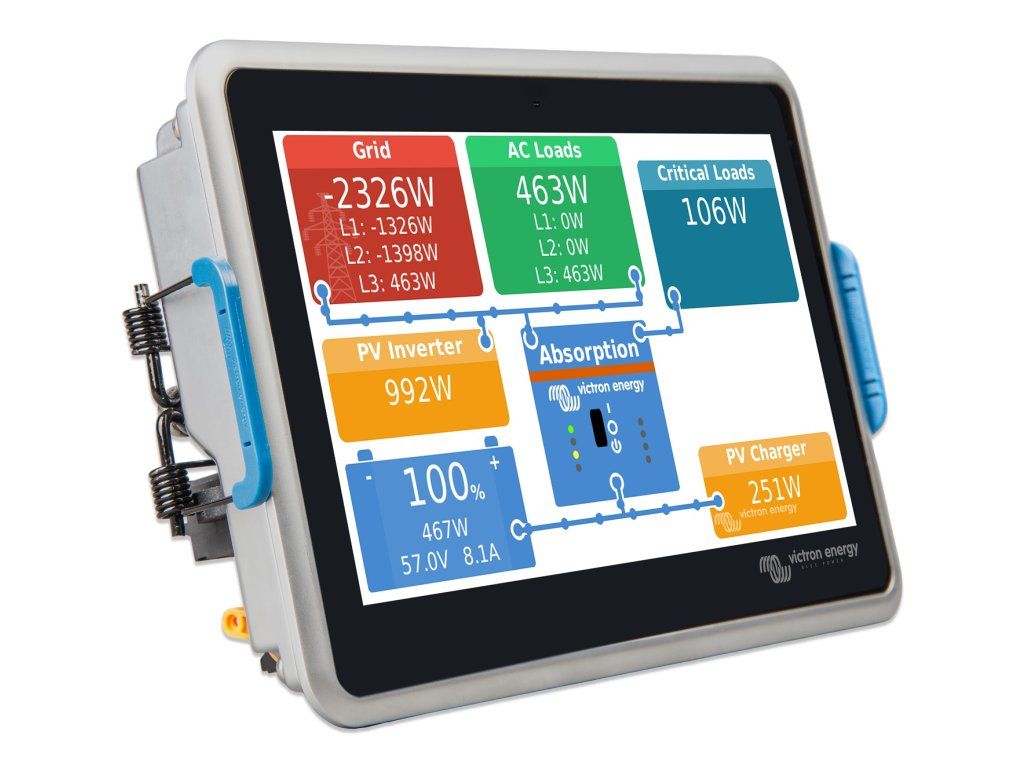

Communication center, for solar system, Wi-Fi, Bluetooth, LAN, VE.Direct, VE.Bus, VE.Can, USB, I/O, relay, microSD slot Ekrano GX represents the next generation in the GX product family. With its full range of connections and interfaces, as well as a built-in 7" touchscreen, it is the most powerful GX device to date, allowing you to always have perfect control of your system wherever you are and maximize its performance. Easily access your system through the Victron Remote Management (VRM) portal, using the built-in touchscreen, multi-function display (MFD) or VictronConnect app and integrated Bluetooth and Wi-Fi connectivity. Ekrano GX is also the successor to Color Control GX. Built-in 7" touchscreen the 7" touchscreen provides an instant overview of your system and allows you to adjust settings. The touch function can be disabled (or enabled) via a recessed button on the back to prevent unauthorized use. Brightness can be adjusted manually or automatically thanks to the built-in ambient light sensor. When mounted using the supplied steel bracket, the display is externally waterproof (IP54). Remote Console on VRM Monitor, control and configure the Ekrano GX remotely over the Internet just as if you were standing in front of the device. The same features are also available via a local LAN or built-in Wi-Fi access point. Perfect monitoring and control Instantly monitor battery charge status, energy consumption, PV, generator and grid power generation or check tank levels and temperature readings. Easily control the shore power input current, (automatic) start/stop of generators or change any settings to optimize the system. Monitor alerts, perform diagnostic checks and troubleshoot remotely. Easy installation and configuration The Ekrano GX is easy to install using the panel mounting cutout and includes a steel bracket and springs for blind hole mounting. All ports are easily accessible from the rear. The power and relay terminals can be screwed into place and the IO terminal block has quick release terminals for easy access. A Bluetooth interface allows for quick connection and configuration via the VictronConnect app. Specifications: 7" diagonal Resolution: 1024 × 600 px Interfaces: Wi-Fi, Bluetooth, 1× RJ-45 (Ethernet), 2× USB (type A), 3× VE.Direct, 2× VE.Can, 1× VE.Bus, 2× relay, 1× microSD slot, 2× digital input, 3× tank level sensor input, 2× temperature sensing sensor input Supply voltage: DC 8-70 V Coverage: front side: IP54 (when installed with steel bracket), IP31 (when installed with springs) rear side: IP21 Dimensions: 187 × 124 × 29.8 mm
