Victron Energy EV Charging station NS, Wallbox

Product detailed description

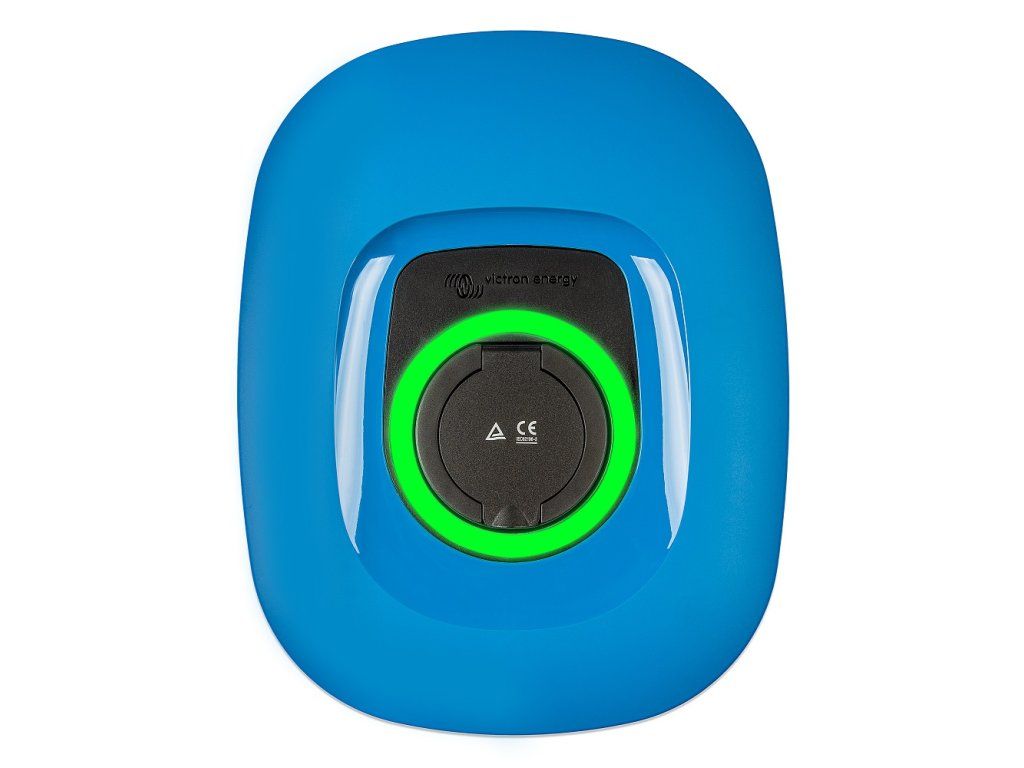

This device is technically identical to the Victron Energy EV Charging station, it is without the built-in LCD display and has a new modern design that is available in 3 colours - blue standard and white or black as an option. High performance EV charging station The EV charging station can operate in three-phase and single-phase. It provides a maximum of 22 kW AC in three-phase mode or 7.3 kW in single-phase mode. Wi-Fi communication Wi-Fi: 802.11 b/g/n for configuration and monitoring. The internal Wi-Fi module can be configured in access point mode or station mode for initial setup and monitoring. Light ring for quick display of device status Fully programmable RGB light ring around the charging port for quick indication of device status. It can be programmed from the web interface to display different light effects depending on the current status (disconnected, charged, etc.). The goal is to help the user see the current status from a distance. Three working modes are available: - Manual mode allows configurable output current between 6-32 A. Charging power can be controlled in different ways: via the web interface, from the GX and VRM devices and via VictronConnect. It allows you to manually start or stop the charging process when the vehicle is connected to the charging station. - Automatic mode to ensure maximum efficiency of the PV system. Detects when excess power is available and uses only that power to charge the vehicle. - Scheduled mode to allow automatic charging at custom time intervals. The scheduler allows charging at different time intervals, for example at certain times of the night when grid power is cheaper. In addition to the start and end time, various parameters such as charging current and interval can be defined. Integration with GX devices The EV charging station can be configured and monitored from the GX screen devices and the remote console. Integration with VRM Several options are available on the VRM portal: real-time reports, custom reports for configurable time periods, advanced features such as remote firmware updates. For more information, please refer to the attached datasheet or online manual. Package contents: 1x Victron Energy EV Charging station NS 1x Mounting plate 1x 28mm nylon cable grommet for power cables up to 19mm diameter 1x Blanking socket for type 2 cable plug holder 1x Rubber plug (Cable NOT included) Specifications: Input Voltage: 170-265 VAC Charging current: 32 A per phase Rated power: 22 kW Charging current range: 6-32 A Adjustable max current: 10-32 A Adjustable min. current: 6-1A under max current Wifi standard: 802.11 b/g/n (2.4Ghz only) Self power consumption: 15mA@230V Operating temperature: -25°C to +50°C Data communication: Modbus TCP over WIFI, Bluetooth Connection: 6-10mm2 Waterproof: IP44 Cooling: not needed Weight: 3kg Dimensions: 372 x 292 x 122 mm
