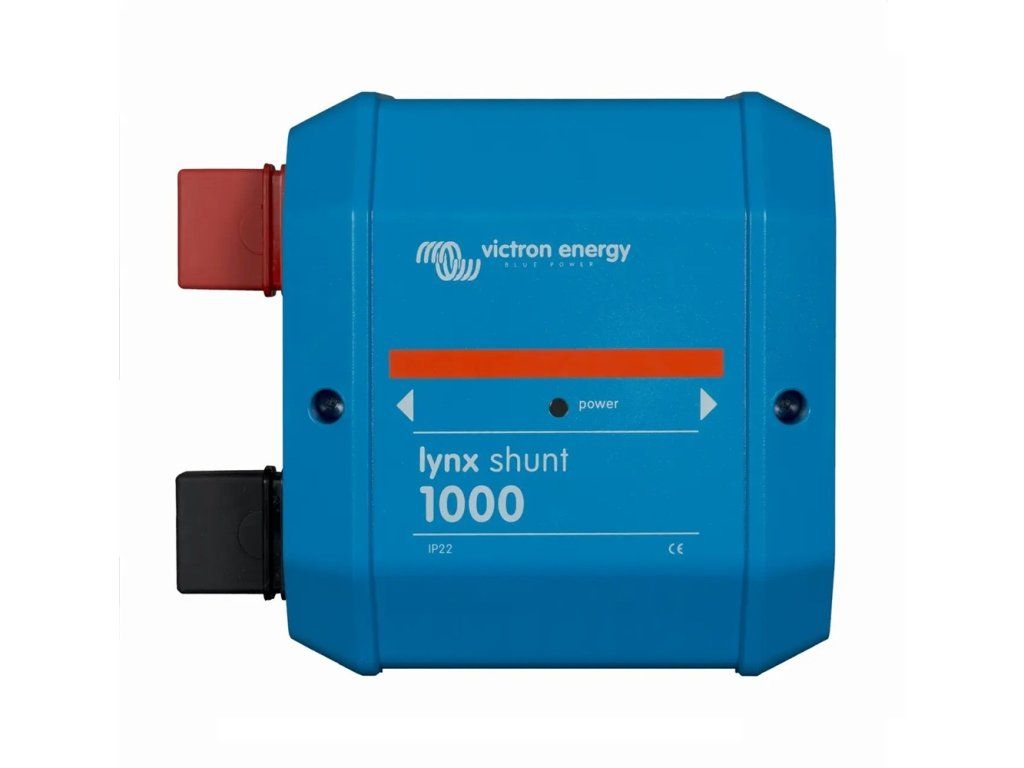

Victron Energy Lynx Shunt VE.Can (M10)

Product detailed description

The Victron Energy Lynx Shunt VE.Can is a DC distribution system module that includes a 1000A shunt and built-in electronics for accurate battery monitoring. It can monitor voltage, current, state of charge (SoC) and other battery system parameters. It is designed to be used as part of a Lynx system and connects to GX devices using the VE.Can interface. It replaces the need for a separate battery monitor (e.g. BMV-712) in advanced installations. Key Features and Functions: - Integrated 1000A shunt for measuring current to/from batteries - Accurate measurement of the voltage and state of charge (SoC) of the connected battery - Communication via VE.Can interface with GX devices (e.g. Cerbo GX) - Configurable and upgradeable via VictronConnect (using VE.Direct to USB cable) - One programmable alarm output (e.g. relay for low capacity warning) - Space for one spare fuse - Compatible with other Lynx modules (Power In, Distributor, Smart BMS) - Firmware update option via VE.Can or USB - Suitable for 12V, 24V and 48V systems Technical parameters: - Rated shunt current: 1000 A - Voltage range: 9 - 60 V DC - Interface: VE.Can, USB (via VE.Direct to USB), 1x digital output - Compatible with GX devices: Yes - Dimensions (h x w x d): 290 × 170 × 80 mm - Weight: 2.4 kg - Busbar type: M8 wires and fuses, M10 interconnection between modules - Busbar material: tinned copper (8 × 30 mm) - Protection rating: IP22 - Operating temperature: -40 °C to +60 °C - Storage temperature: -40 °C to +65 °C - Relative humidity: max. 95% (non-condensing) - Housing material: ABS plastic
