Victron Energy SolidSwitch 104

Product detailed description

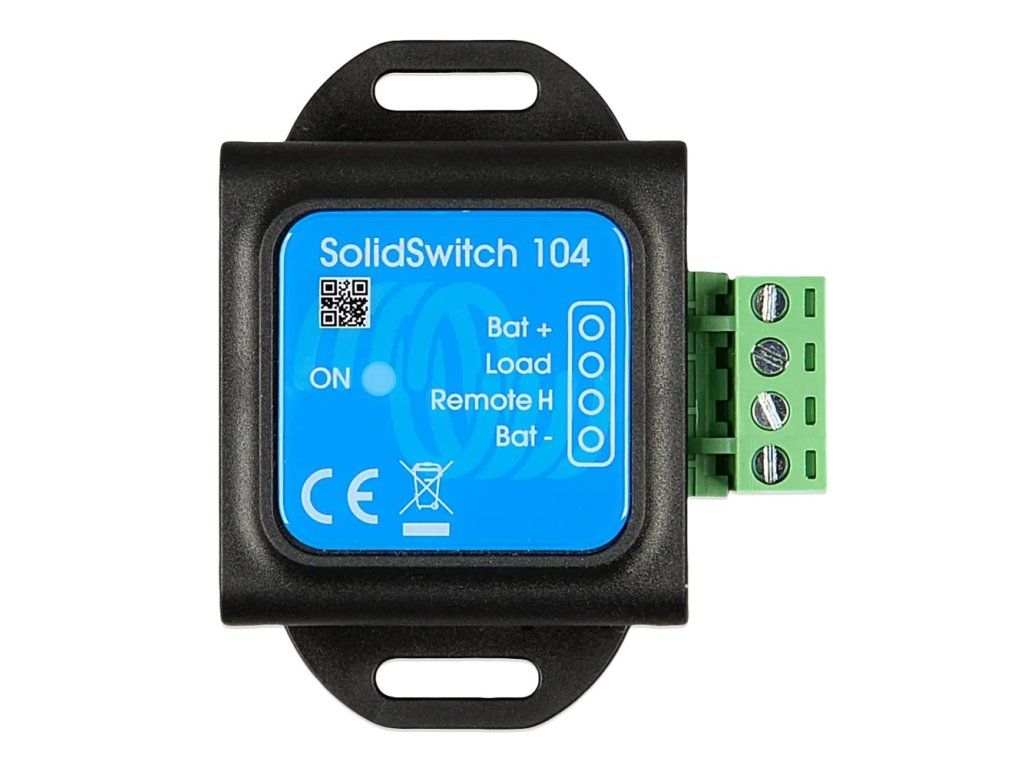

The SolidSwitch 104 is a solid-state DC switch designed for switching DC loads up to 70 V and 4 A. It is controlled by a low-power digital signal, while its own power consumption is very low. This makes it particularly suitable for use in lithium systems where minimising quiescent power consumption is key. The device is designed for integration into Victron Energy systems and finds application, for example, in controlling an external alternator controller or expanding the number of chargers connected to the ATC (allow-to-charge) output of a BMS. Main features and functions Switching DC loads up to 70 V / 4 A - Designed for resistive, capacitive and inductive loads (e.g. coils of power contactors). Very low self-consumption - Consumption of approximately 0.04 Ah per month, which significantly reduces the parasitic load on the battery system compared to a conventional relay. Three typical applications - Control of an external alternator controller (e.g. in a Victron lithium system). - Switching a DC load (e.g. lighting) using a low power control circuit. - Expanding the number of chargers connected to the ATC output of the Victron BMS. Low control current - The minimum input current for switching is 30 µA. Suitable for use with BMS - When the ATC output is permanently active, the device remains active with minimal power consumption, limiting battery discharge. Technical parameters: - Operating input voltage (Vbat): 8-70 V DC - Maximum load current: 4 A Maximum load capacitance: - Vbat up to 15 V: 1000 µF - 15 V < Vbat < 30 V: 400 µF - 30 V < Vbat < 70 V: 50 µF Maximum inductive load: - up to 1 A: 1000 mH - 1 A < I < 2 A: 100 mH - above 2 A: 10 mH Remote input (Vin): - free floating or Vin < 3 V: output off - 3.3 V < Vin < 70 V: output on - minimum input current for switching: 30 µA - Operating temperature: -20 to +50 °C - Humidity: max. 95% (non-condensing) - Protection: IP20 - Material: ABS, matte black - Dimensions (h × w × d): 58 × 66 × 23 mm
