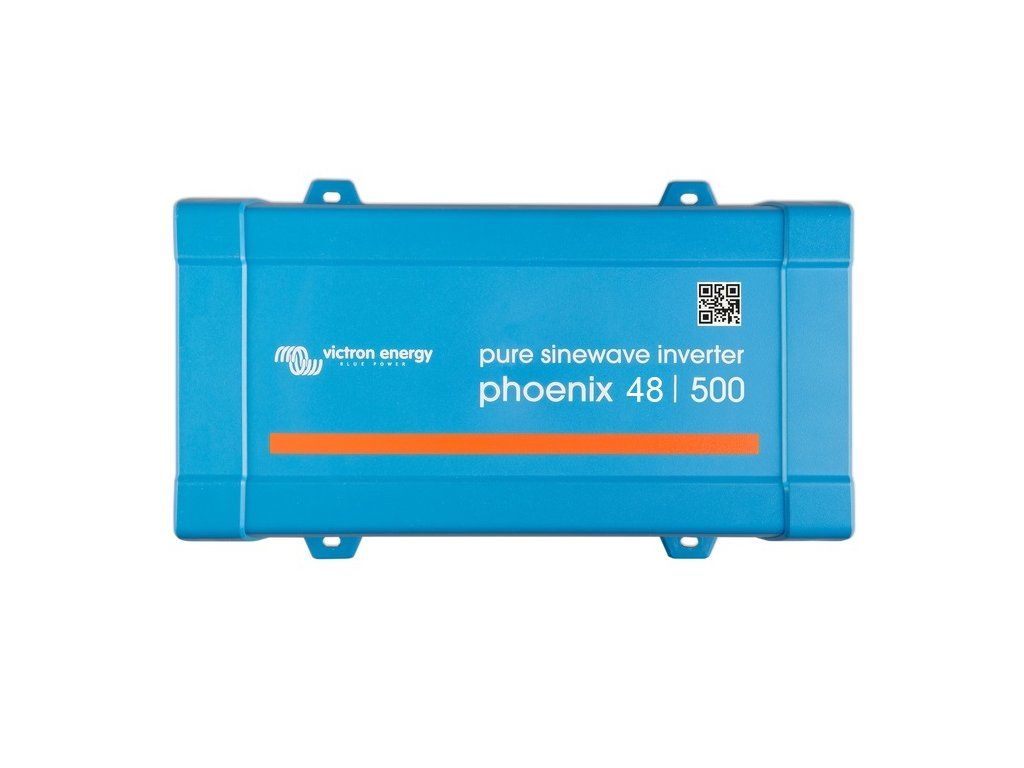

Voltage converter SINUS Victron Energy Phoenix VE.Direct 500VA 48V

Product detailed description

The proven reliability of Victron Energy professional inverters with a full 5-year warranty.

The inverter incorporates a robust toroidal transformer that has proven its reliability in Victron Energy inverters for many years.
The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.

Please read our article carefully before buying a voltage converter:
How to choose the right voltage converter?

This inverter is fully configurable - it is a completely unique feature where you can set the following parameters using your PC:
- low and high battery voltage alarm and reset level
- inverter low and high battery voltage shutdown level and reset level
- Output voltage 220/230/240V
- Frequency 50 Hz or 60 Hz
- ECO mode on/off sensitivity setting (setting the level when the inverter "falls asleep" and when it "wakes up" again)

Monitoring is also available:
- input and output voltage and current, temperature, alarms

High starting performance
Required to run loads such as power inverters for LED lamps, halogen lamps or power tools.

ECO mode
In ECO mode - when the load power falls below the preset value the inverter switches to standby mode (it falls asleep and the inverter's own consumption is then only about 1W). In standby mode with very low self-consumption, the inverter will then periodically switch on for a short time (adjustable parameter, standard: every 2.5 seconds). If the load power exceeds the preset value, the inverter will switch on again. This function saves a large amount of energy that the inverter would otherwise consume for its operation.

VE.Direct communication port that can be connected to:

- Computer (requiredvE.Direct to USB cable)
- Apple and Android smartphones, MacBooks tablets and other devices ( requiredVE.Direct Bluetooth dongle)

Free software
Current versions of the software are available on the software pagehttps://www.victronenergy.com/support-and-downloads/software

Remote on/off, LED diagnostics - see manual.

Cables for connection to the battery are not included.


Technical parameters:
Continuous power output at 25°C (VA): 500
Continuous active power at 25 °C / 40 °C (W):400/350
Peak active power (W): 900
Weight (kg): 3.9
Dimensions h x w x d (mm):86x172x275
