Wall-hung toilet SZAFIR, Tornado system

Product detailed description

The SZAFIR wall-hung toilet is suitable for modern bathrooms requiring concealed installation and high hygiene standards. The frameless ceramic bowl allows for easier cleaning compared to traditional designs with rim edges. Installers working on new builds or renovations can integrate this model into systems with concealed wall frames, ensuring a clean wall surface without visible tank or pipework. The Tornado Flush system provides even water coverage across the bowl interior, reducing the need for repeated flushing. The included SLIM seat features a quick-release mechanism for easy maintenance and soft-close functionality to prevent slamming.

For commercial and residential applications, the SZAFIR offers a compact footprint and minimal visual intrusion. The concealed mounting requires careful planning of wall cavity dimensions and plumbing access during the installation phase. The model is ideal for environments where space efficiency and aesthetic appeal are priorities, such as in small bathrooms, hotels, and office restrooms. The ceramic surface is glazed for smoothness, and the duroplast seat is resistant to wear and impact. The Tornado Flush system operates under standard water pressure levels and does not require additional pressure boosters or mechanical components beyond the standard plumbing setup.

Technical parameters

Brand	Hydroland
Model	SZAFIR
Color	White
Material	Ceramic
Bowl type	Frameless, wall-hung
Seat	SLIM duroplast, soft-close, quick-release (included)
Flushing system	Tornado (rotary)
Bidet function	No
Mounting	Concealed wall frame (sold separately)
EAN	5903887105378
Manufacturer	Hydroland
Color/surface	Polished white
Manufacturer code	CER.MI.SZAFIR.TOR
Country of origin	China
Seat material	Duroplastic

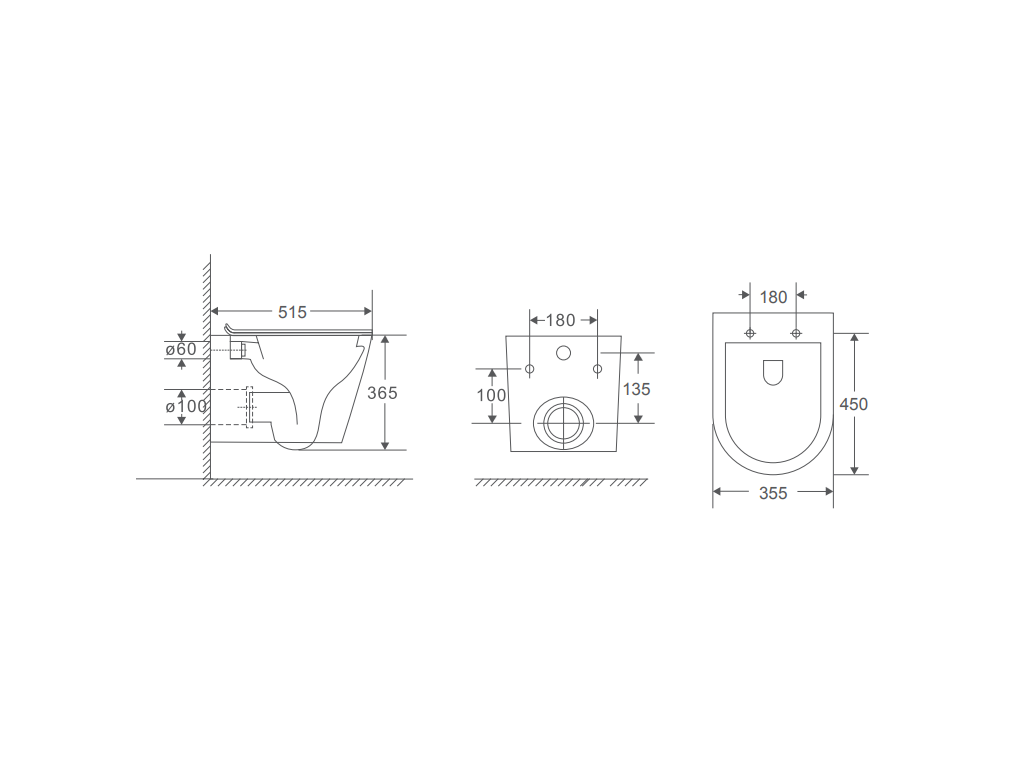

Dimensions (D×W×H)	515x355x365 mm
Flushing system	Tornado Flush
Type	Wall-hung WC bowl
Warranty	2 years
Code	CER.MI.SZAFIR.TOR
Brand	Hydroland

The technical parameters define the compatibility with existing wall frames and the integration of the Tornado Flush mechanism. The ceramic bowl dimensions ensure proper fit within standard wall cavity sizes. The SLIM seat is specifically designed to match the bowl shape and provides ergonomic support. The absence of a rim edge reduces the risk of bacterial accumulation in hard-to-reach areas. The soft-close seat mechanism operates using a controlled hinge system that prevents sudden closure.Installation and connection The SZAFIR requires a concealed wall frame for secure mounting. The installation process begins with fitting the wall frame into the prepared cavity, ensuring that the plumbing connections for water supply and waste are correctly aligned. The toilet bowl is then attached to the frame using the provided fastening hardware. The water supply connection is standard for low-flow toilets, with the inlet positioned at the back of the bowl. Installers should verify that the wall cavity provides sufficient depth for the frame and that the internal pipework is accessible for future servicing. Common installation mistakes include incorrect alignment of the bowl with the wall frame, which can cause stress on the ceramic and lead to cracks. Another issue is failing to account for the required clearance around the toilet for ease of use and cleaning. The quick-release mechanism of the seat requires that the hinge points are not obstructed by the wall frame or surrounding cabinetry. During final checks, the installer should confirm that the Tornado Flush system operates smoothly and that the soft-close seat functions without resistance.

Compatibility and accessories

The SZAFIR is compatible with standard concealed wall frames designed for low-profile wall-hung toilets. These frames are sold separately and must be selected based on the cavity size and plumbing layout. The model is also available with a standard flush system for users who do not require the Tornado Flush technology. Additional accessories include replacement seats and seals for long-term maintenance. The Tornado Flush system is not compatible with bidet functions or high-pressure flushing systems.

Technical background for designers

The Tornado Flush system works by directing water in a rotating pattern along the interior walls of the bowl. This ensures more complete coverage of the surface than a direct jet system. The ceramic material is chosen for its smooth glaze, which minimizes bacterial adhesion and facilitates cleaning. The frameless design eliminates the need for a rim, which is often a point of hygiene concern in traditional toilets. The integration into the concealed wall system requires coordination between the mechanical and architectural design phases to ensure that the cavity dimensions accommodate both the toilet and the internal plumbing. The durability of the ceramic bowl depends on the quality of the glazing and the absence of stress points caused by improper installation. The SLIM duroplast seat is resistant to UV light and temperature variations, making it suitable for use in humid bathroom environments. The soft-close mechanism relies on a controlled hinge system that reduces the force of closure without requiring additional power sources.

Service and operation

The SZAFIR requires periodic inspection of the seat hinges and the water supply connection to ensure continued smooth operation. The ceramic bowl should be cleaned regularly using non-abrasive cleaners to preserve the glaze. The SLIM seat can be removed for deep cleaning using the quick-release mechanism. No specific service intervals are defined in the technical documentation, but routine checks are recommended to identify signs of wear or damage. Installers should check the alignment of the bowl with the wall frame during initial installation and after any incidents that may have caused structural stress. The Tornado Flush system should be tested for consistent water flow and even distribution. Any leaks or irregularities in the flushing pattern should be investigated immediately to prevent water wastage or damage to the surrounding structure.

Frequently asked questions

Can the SZAFIR be installed without a concealed wall frame?
No, the model requires a concealed wall frame for secure mounting. The frame is not included with the toilet and must be ordered separately.

Is the Tornado Flush system compatible with high-pressure water supplies?
The Tornado Flush system operates under standard water pressure levels and does not require high-pressure water supplies for optimal performance.

Can the SLIM seat be replaced with another type?
Yes, the SLIM seat can be replaced with other compatible seats designed for frameless wall-hung toilets. The quick-release mechanism allows for easy removal and installation of new seats.

Does the SZAFIR model offer a bidet function?
No, the SZAFIR does not include a bidet function. The model is designed for standard flushing and does not support additional water jets for personal hygiene.

Documents for download

• Toilets and accessories (PDF)
