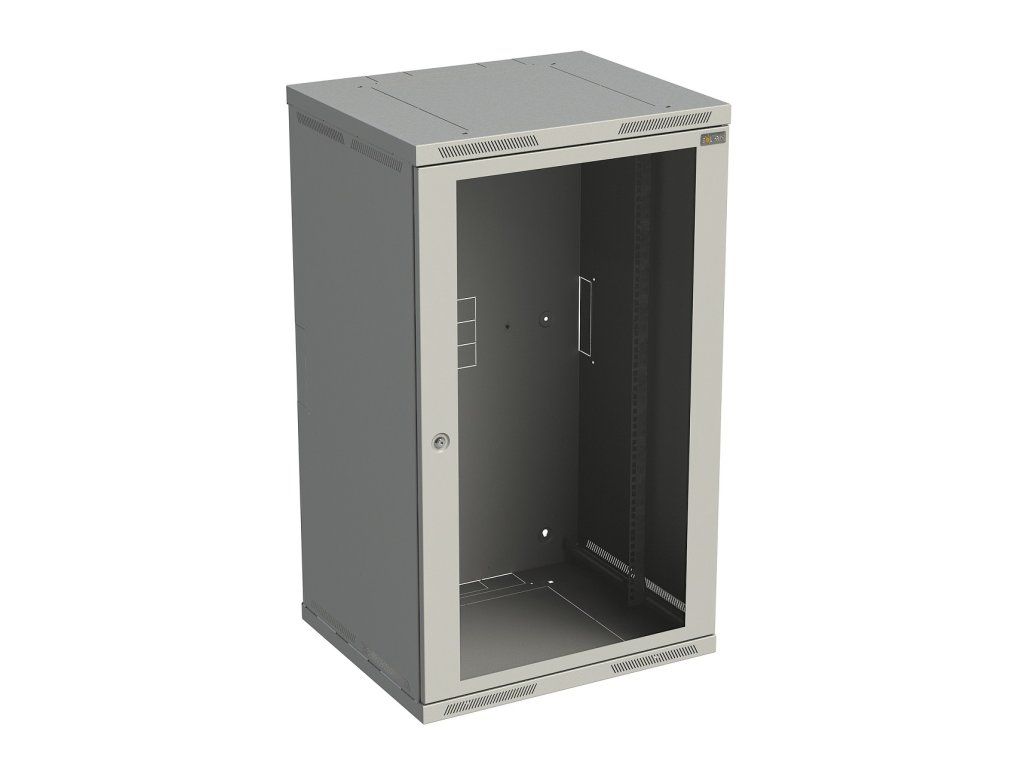

Wall switchboard SENSA 21U 600mm, glass door, RAL 7035, SENSA-21U-66-11-G

Product detailed description

The wall-mounted data cabinet SENSA of riveted construction is a switchboard whose production was focused on reliability and a favourable price. The top and bottom lid of the cabinet has perforations for easy ventilation of the internal equipment. The cable entry is provided by means of knock-out holes in the ceiling, bottom, sides and back of the cabinet. The door is fitted with a lock with two keys and concealed swing hinges. Manufactured variants Height: 6, 9, 12, 15, 18U, 21U Width: 600 mm Depth: 400, 500, 600 mm Construction: 1.3mm thick sheet metal, 1.5mm galvanized support rails Load capacity: 45 kg standard (uniform load) IP protection: iP20 standard Colour version: powder coated RAL 7035 grey Door: in sheet metal or with safety glass (EN 12150-1) Standard configuration - 1 pair of sliding 19" vertical rails (additional pair on request) - 1 door with lock and concealed hinges - perforations in the top and bottom of the cabinet for easy ventilation - ready-made cable runs in the ceiling, bottom and sides of the cabinet in the form of knock-out holes. Attachment of the cabinet to the wall is made through holes in the rear wall of the cabinet. Accessories A large number of accessories can be ordered for the cabinet, such as blanking plates, lashing panels and many others, including special accessories on request. Technical specifications: - Height: 21U - Height: 1024 mm - Width: 600 mm - Depth: 600 mm - Weight: 38 kg - Colour: RAL 7035
