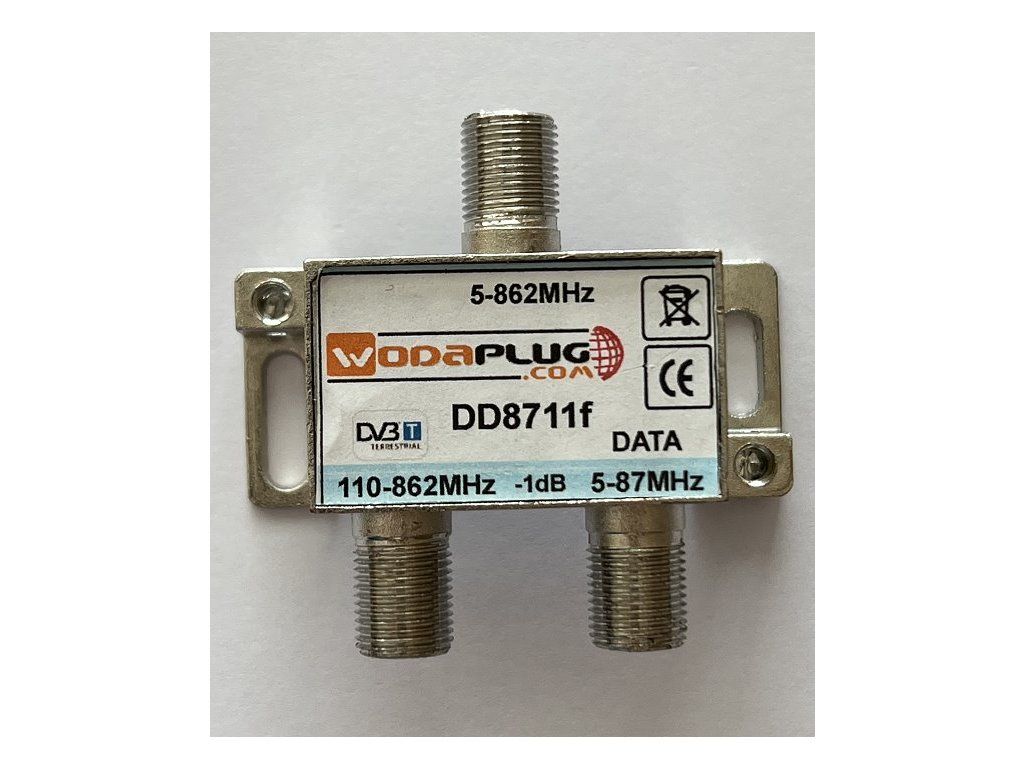

Wodaplug Diplex filter DD8711f 3xF connectors, merging DAT and TV signal (DVB-T2)

Product detailed description

It is used to merge DAT and TV signal at the input to the coaxial network and then to separate TV and DAT signal at the end location in front of the TV (the advantage is very low attenuation for the through signal -1dB and very high separation attenuation between the two inputs Suitable also for BY-PASS amplifiers in existing network, which cannot be implemented with a wideband combiner at all, because it would introduce positive feedback from the output of the amplifier to the input and thus its instability - oscillation. ATTENTION - do not use for satellite distribution systems operating on higher frequencies (1-2GHz), intended for TV distribution systems with DVBT and DVBT2. Technical parameters: high quality housing with 3* F connectors high isolation low price Insertion loss 2-87MHz 0,6dB ±0,2dB 110-170MHz 0.6dB max. 170-750MHz 0.7dB max. 750-870MHz 0.8dB max. Return loss all ports 2-87MHz 20dB min. 110-870MHz 20dB -1.5dB/oct. RFI shielding 4-1000MHz 100dB Port 2-3 isolation 2-10MHz 55dB min. 10-100MHz 43dB min. 100-700MHz 48dB min. 700-870MHz 43dB min.
