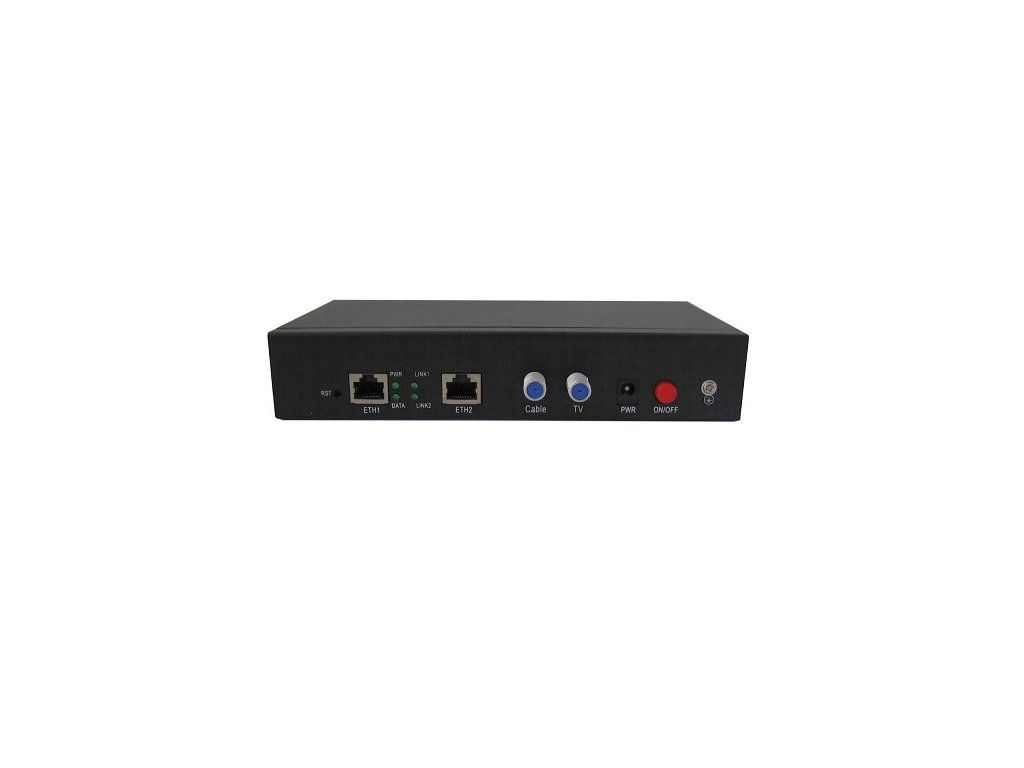

Wodaplug EOC1121L indoor MASTER, coaxial Ethernet adapter 700Mbps

Product detailed description

Wodaplug EoC products are designed to use existing cable TV (CATV/STA) infrastructure for sharing Internet access or high-speed data transmission - broadband. Data signal transmission and existing CATV (and satellite TV) occurs simultaneously over the same cable with mutual compatibility. So you don't have to change your CATV network! You just need to ensure bi-directional throughput of your active network elements.


Easy-to-use device for connecting a building to the Internet over a common coaxial cable. Allows communication of many units over a single coaxial line at signal speeds up to 700Mbps.


It is designed for building a fast Ethernet network over coaxial distribution in a building, typically on a common home TV antenna. The unit coexists with the TV signal and does not affect its reception.


Depending on the CATV outlets installed, the unit can be connected directly between the TV receiver and the outlet port. In case the attenuation of the suppression filter in older socket types does not allow such a direct connection, the socket must be replaced. It is replaced by a so-called bidirectional socket.


Wodaplug EOC series is a point-to-multipoint EoC (Ethernet over Coax) solution that effectively extends your 100/1000M Ethernet network (layer-two) by 700-1500 meters at speeds up to 700Mbps using existing coaxial cable. It allows you to extend your Ethernet (layer-two) connection in buildings or homes without the need to install new cables. It is also a suitable solution for implementing an Ethernet network e.g. in factories where slow serial communication is being upgraded to Ethernet. The Wodaplug EOC1121L is a master/bridge unit that connects multiple (up to 128) EOC1121R4 slave subscriber units. The network topology can be star or tree. Based on the Homeplug AV standard. Support 128-bit AES encryption for data security.


The device is designed for the MDU (Multi-Dwelling) system which provides the network administrator with the ability to control the bandwidth. At the same time, this system allows multiple users to be accommodated (as opposed to Ad-Hoc or Peer-to-Peer systems). However, the system must have this one powerful management unit that can connect a maximum of 128 client units.


The technology seems to be particularly suitable for IPTV transmission, which is usually sent via UDP/multicast. For this, the unit is able to achieve maximum performance. Suitable for achieving a competitive solution within the same cable distribution and coexistence with existing technology.


Characteristics:
- 2 ports 100/1000Base-TX, Auto-Negotiation (100/1000 Mbps) , IEEE 802.3u, auto-detection of straight-through/crossover cable, each independent
- 2 ports connector F (female), 75Ohm, for connection to coaxial lead and TV receiver. The port for the TV receiver is passively connected to the lead and is functional even when the device is switched off
- up to 128 units communicating with each other on a single coaxial line maximum distance between two units 1500m (valid for RG59 cable) simultaneous operation with TV
- Qualcomm Atheros 7400 family chipset, signal speed up to 700Mbps
- automatic rate and modulation adjustment, OFDM modulation, adaptive, 896 carriers
- frequency band 7,5MHz - 65MHz
- maximum line attenuation between master and slave: 65dB -output power: 116dBuV
- symmetric synchronous operation, duplex transparent Ethernet bridge, protocol independent, operating system independent, transparent, no external software required
- external power supply, 12V DC power supply
- Web management, SNMP
- Slave control:
- setting connection permissions according to their MAC address
- statistical information for each unit, attenuation, SNR, RX/TX statistics
- broadcast protection, adjustable for each slave individually
- VLAN 802.1Q parameter settings configurable for each slave individually
- upload/download bandwidth settings adjustable for each slave individually
- 802.1p priorities configurable for each slave individually
- remote upgrade of slave units, remote reboot of units
- possibility to use template for setting up slave units


Parameters adjustable for the master unit:
- transmission statistics
- VLAN 802.1Q settings for master interface management
- broadacstorm protection settings
- upgrade, remote reboot, import/export of configuration files
- logging, syslogd to remote server


Specifications:
Chipset Intellon INT7410, RTL8198
- HomePlug AV Protocol
- IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE
- 802.3x, HTTP, SNMP, TELNET
- Phisycal Speed 700Mbps
- Modulation Bandwidth 7.5 MHz~65 MHz
- Modulation Technology OFDM,1024/256/64/16QAM,QPSK,BPSK
- Max. Slave number 128
- Encryption mode 128-bit AES encrypted
- VLAN Support max. 16 VLANs
- Limitation of port speed Support minimum 64Kbps granularity
- QoS Support VLAN priority
- Working mode CSMA/CA
- Multicast support Support IGMP manage Multicast diagram
- Management mode Support SNMP, WEB, CLI multi-managed mode


Interface Features
- Ethernet Interface 2 GE(1000M) Ports
- Coax. Cable Interface : one IN one OUT


RF Performance
- Impedance 75Ohm
- Transmit Power 0±3dBm
- Reflection loss >16dB
- Insertion loss <1dB
- Receiving sensitivity -65dB


Electrical Characteristics
- Power Consumption ?10W
- Power Supply 220VAC 60VAC


Environment Features
- Working Temperature -30?~60?
- Storage Temperature -40?~70?
- Working Humidity 10%~90%, non-condensation
- Storage Humidity 5%~90%, non-condensation
- Environmental standards RoHS


Physical characteristics
Product Size 212*132*96mm
Product Weight N.W.: 1.97kgs
G.W.: 2.5kgs
C/TN Size 470*360*435mm 4pcs/carton
C/TN Weight 11.7kgs
