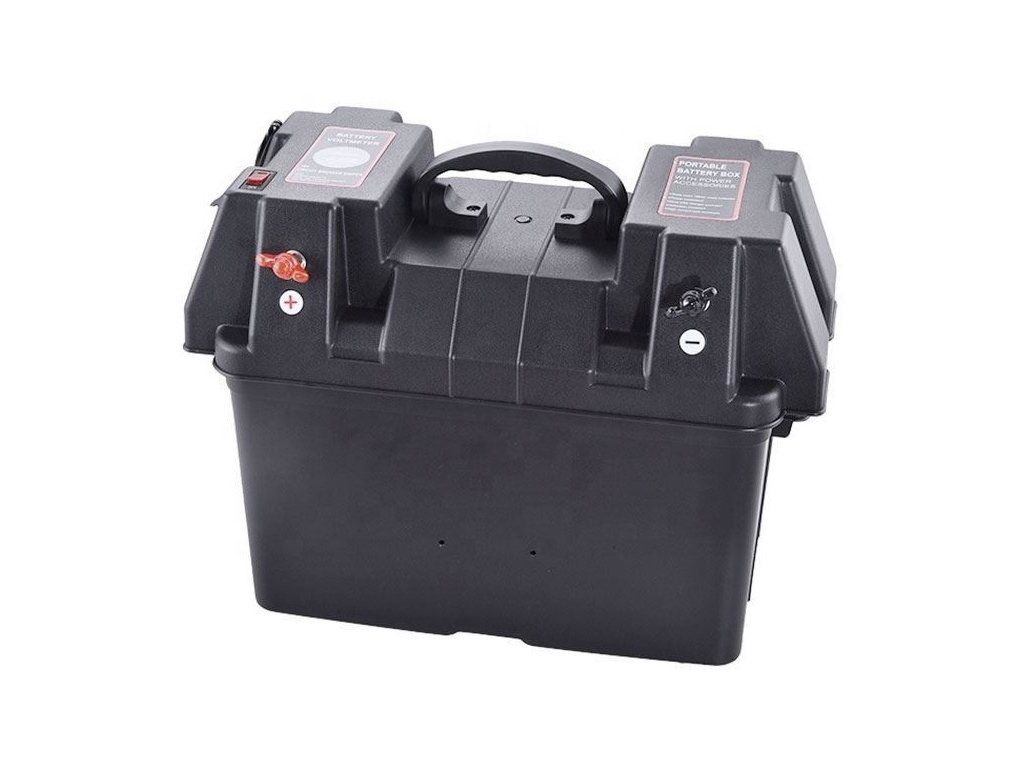

Box for battery BA880

Product detailed description

Practical 12V/100Ah battery box with wiring, terminals and 12V+USB sockets. A smaller charger, inverter or solar controller can be installed in the lid to further extend the capabilities of the device.

Specifications:

Internal dimensions: 340 × 210 × 200 - 220 mm (lid with overlap).
External dimensions: 420 × 250 × 320 mm
Material: PP
Outputs:
Outputs: -clamps + and -connected directly to the battery
-2× car socket 12V connected to the battery via a switch with 16A circuit breaker
-1× USB socket 5V/2,1+1A connected to the battery via switch with 16A circuit breaker

Other features:
Battery voltage measurement with integrated voltmeter - display when the circuit breaker switch is turned on

Accessories:
Fastening strap, 2× loop
