Bradas IBC adapter S60x6mm - 3/4" VNZ

Product detailed description

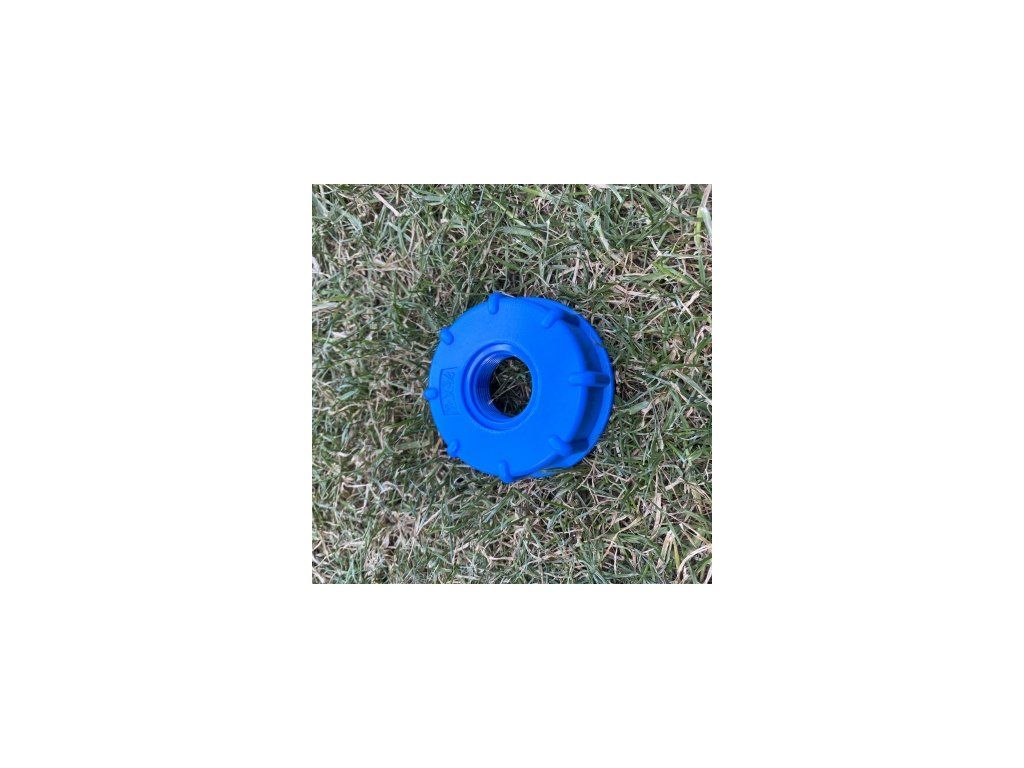

This adapter is commonly used in garden irrigation systems and workshop setups where IBC ball valves are integrated. It allows for the connection of various accessories and components to IBC ball valves, ensuring a secure and leak-free connection. The adapter is suitable for use in both residential and commercial irrigation systems, providing a reliable interface between different pipe sizes and fittings.

Installers and technicians working with irrigation systems often encounter the need to connect components with differing thread sizes. This adapter facilitates such connections, ensuring compatibility between S60x6mm and 3/4 inch VNZ fittings. It is particularly useful in systems where space constraints or design requirements necessitate the use of different thread standards.

Technical parameters

Installation and connection

To install the adapter, first ensure that the S60x6mm female thread aligns with the male thread of the IBC ball valve. Apply a suitable sealing compound or thread tape to the threads to prevent leaks. Then, screw the adapter onto the ball valve until it is fully seated. On the other side, connect the 3/4 inch VNZ female thread to the desired accessory, ensuring that the male thread is clean and undamaged. A common mistake during installation is not tightening the threads sufficiently, which can lead to leaks. Always check the connection for tightness and signs of leakage after installation.

Compatibility and accessories

This adapter is specifically designed to work with IBC ball valves that have a S60x6mm male thread. It allows for the connection of a wide range of irrigation accessories that use a 3/4 inch VNZ female thread. When ordering, ensure that the IBC ball valve and the accessory being connected have the correct thread sizes and types. No additional products are required for basic operation, but installers should verify that all components are compatible with the system's pressure and flow requirements.

Technical background for designers

The adapter functions as a mechanical interface between two different thread standards. It is typically made from durable materials suitable for outdoor and irrigation applications. The S60x6mm and 3/4 inch VNZ threads are designed to provide a secure and leak-free connection. The integration of this adapter into an irrigation system depends on the system's overall design, including pressure levels and flow rates. The longevity of the adapter is influenced by the quality of the installation, the materials used, and the operating conditions of the system.

Service and operation

Regular inspection of the adapter's threads and connections is recommended to ensure continued performance. Check for signs of wear, corrosion, or leakage, especially after periods of heavy use or exposure to harsh conditions. If any damage is detected, the adapter should be replaced to prevent system failure. No specific service intervals are provided, but routine maintenance is advised to maintain system efficiency and reliability.

Frequently asked questions

Can this adapter be used with other types of ball valves?
It is specifically designed for IBC ball valves with a S60x6mm male thread. Using it with other types of ball valves may result in compatibility issues.

What type of sealing compound should be used?
A standard thread sealing compound or Teflon tape suitable for irrigation systems is recommended to ensure a watertight seal.

Is it possible to reverse the adapter's orientation?
No, the adapter has a fixed orientation with a S60x6mm female thread on one end and a 3/4 inch VNZ female thread on the other. It cannot be reversed during installation.

Can this adapter be used in high-pressure systems?
It is suitable for use in irrigation systems, but the pressure rating should be verified according to the manufacturer's technical data sheet to ensure compatibility with high-pressure applications.
