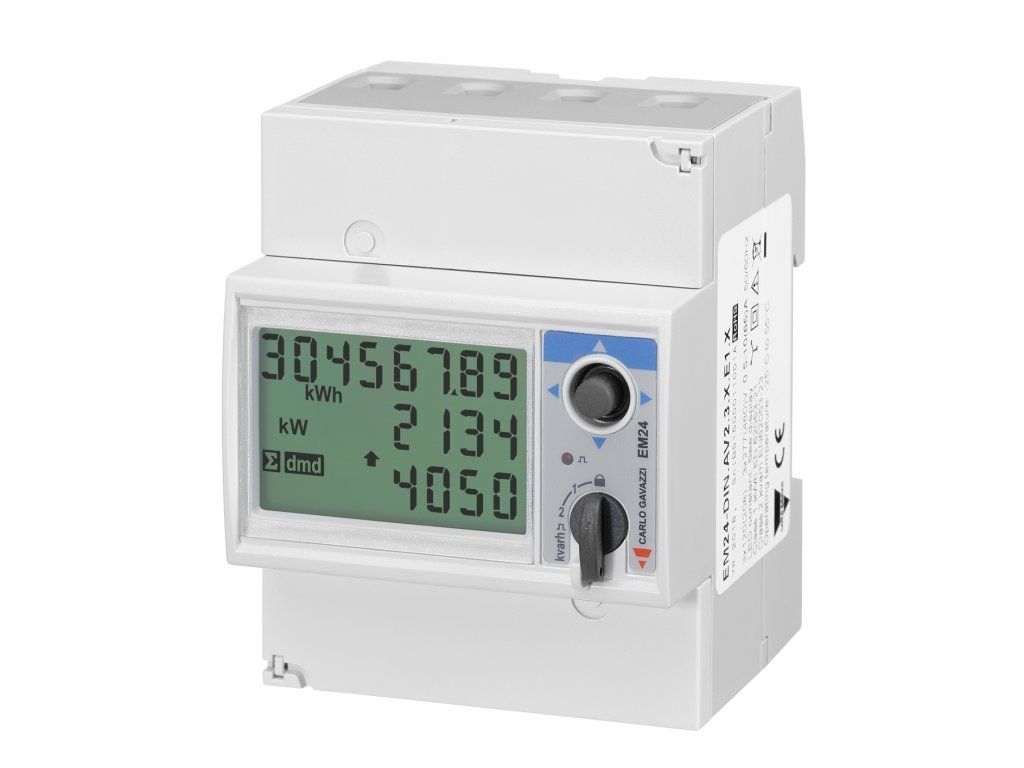

Carlo Gavazzi current meter EM24, 3 phases - max 65A/phase, Ethernet

Product detailed description

The EM24 is designed for three-phase monitoring only and displays data on the GX device and VRM portal. The EM24 is designed for three-phase monitoring only and is available in both RS485 and Ethernet models. 120 to 277 V L-N, 208 to 480 V L-L, 10 (65) A, Modbus TCP/IP (Ethernet) Functions: the Victron EM24 is a standard device for power and energy measurement of 3-phase applications, such as in a switchboard, or for measuring PV inverter, AC generator or inverter/charger performance. Its data is displayed on the GX device and our VRM portal. The meter can be configured for four different roles in the GX device (e.g. Cerbo GX ): - As a network meter and used as a control input for the ESS. - For measuring the output of a PV inverter. - For measuring the output of the AC Genset. - As an AC meter to measure the output of an inverter or inverter/charger. Product parameters: Product code: EM24DINAV23XE1X Voltage inputs 3-phase (4-wire), 220/380 V; 3-phase (4-wire), 230/400 V Frequency: 50 Hz; 60 Hz Current inputs: direct connection up to 65 A Energy measurement: Power and energy measurement Power source: Self-powered Weight: 0.2kg Communication port and protocol: Ethernet (Modbus TCP/IP)
