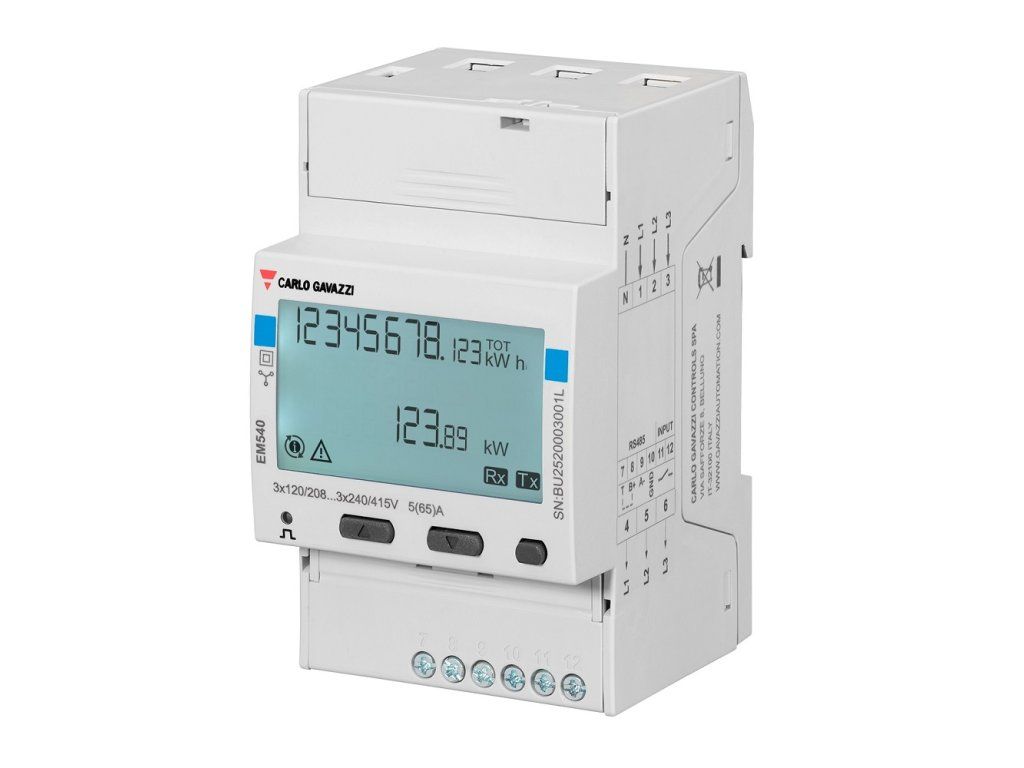

Carlo Gavazzi Current Meter EM540, 3 Phase - max 65A/phase

Product detailed description

The Carlo Gavazzi 3-phase meter EM24 RS485 has been replaced by the new model EM540 RS485. Advantages of the EM540 compared to the older EM24: - Faster measurements, making the ESS more responsive - Smaller footprint - Better access to RS485 connectors for easy installation The EM540 only communicates via RS485 and can therefore be used with our RS485 to USB cables: - ASS030572018 RS485 to USB interface 1.8m - ASS030572050 RS485 to USB interface 5m Features: The Victron EM540 is a standard device for power and energy measurement of 3-phase applications such as in a switchboard, or for measuring PV inverter, AC generator or inverter/charger power. Its data is displayed on the GX device and the VRM portal. The meter can be configured for four different roles in the GX device (e.g. Cerbo GX ): As a network meter and used as a control input for the ESS: - To measure the output of the PV inverter. - For measuring the output of the AC Genset. As an AC meter to measure the output of an inverter or inverter/charger. Product parameters: Product code: EM540DINAV23XS1X Voltage inputs 2-phase (3-wire), 120/240 V; 3-phase (4-wire), 120/208 V; 3-phase (4-wire), 127/220 V; 3-phase (4-wire), 220/380 V; 3-phase (4-wire), 230/400 V; 3-phase ( 4-wire), 240/415 V; 3-phase (3-wire), 240 V L-L; 3-phase (3-wire), 380 V L-L; 3-phase (3-wire), 400 V L-L; 3-phase (3-wire), 415 V L-L; 3-phase (4-wire delta), 120(208)/240 V Current inputs: direct connection up to 65 A Frequency: 50 Hz, 60 Hz Energy measurement: Power and energy measurement Power Source: Self-powered Weight: 0.2kg
