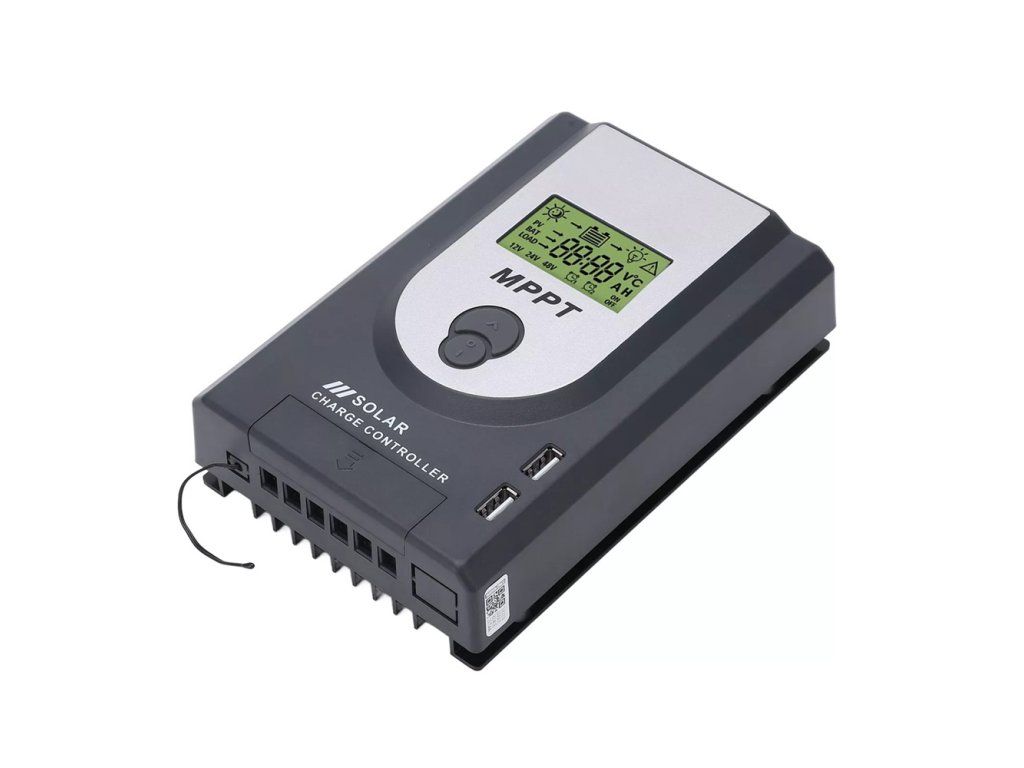

Carspa MH-P2410 solar MPPT controller 12/24V, 10A, 60V input

Product detailed description

The MPPT controller uses an internal inverter to adjust the V-A characteristic of the current source-solar panel to be optimal for battery charging. Thus, it can utilize the energy from the solar panels much better than the PWM controller, which regulates charging only by pulse limiting the direct connection between the solar panel and the battery, where the pulse width is proportional to the state of the battery being charged. In other words, the MPPT controller can generate the ideal voltage and current for charging the battery from a higher voltage and lower current source. The V-A conversion efficiency of the characteristic tends to be above 95%, so losses are minimal and the regulators can usually be adapted to different types of batteries to provide the most optimal charge. Product parameters: System voltage: 12-24 V Max. charging current: 10 A Applicable batteries: Pb AGM, Pb AGM GEL, Pb liquid, LiFePO4 Max. power of PV panels: 130 W (260W-24V) for maximum use of the controller. Max. PV panel voltage: 60V (-20°C), 92V(+25°C) Self-consumption: <50 mA LCD display for setting and monitoring operating parameters Coverage: IP30 Operating temperature: -20°C~55°C Dimensions: 120×175×47 mm Weight:0.55 kg 4-stage Pb battery charging (CC, CV-boost, CV-float, CV-equalize) CC = charging with full power of PV panels until the set value of the end of charging (CV-boost) CV-boost = charging for 1-2 hours after reaching the clamp voltage of 14-15V (adjustable) CV-equalize=charging with increased voltage to mix liquid electrolyte-optional only for batteries with liquid electrolyte CV-float = charging with a holding voltage of 13.5-13.8V (adjustable) Battery type selection: liquid dielectric, AGM, AGM GEL, LiFePO4
