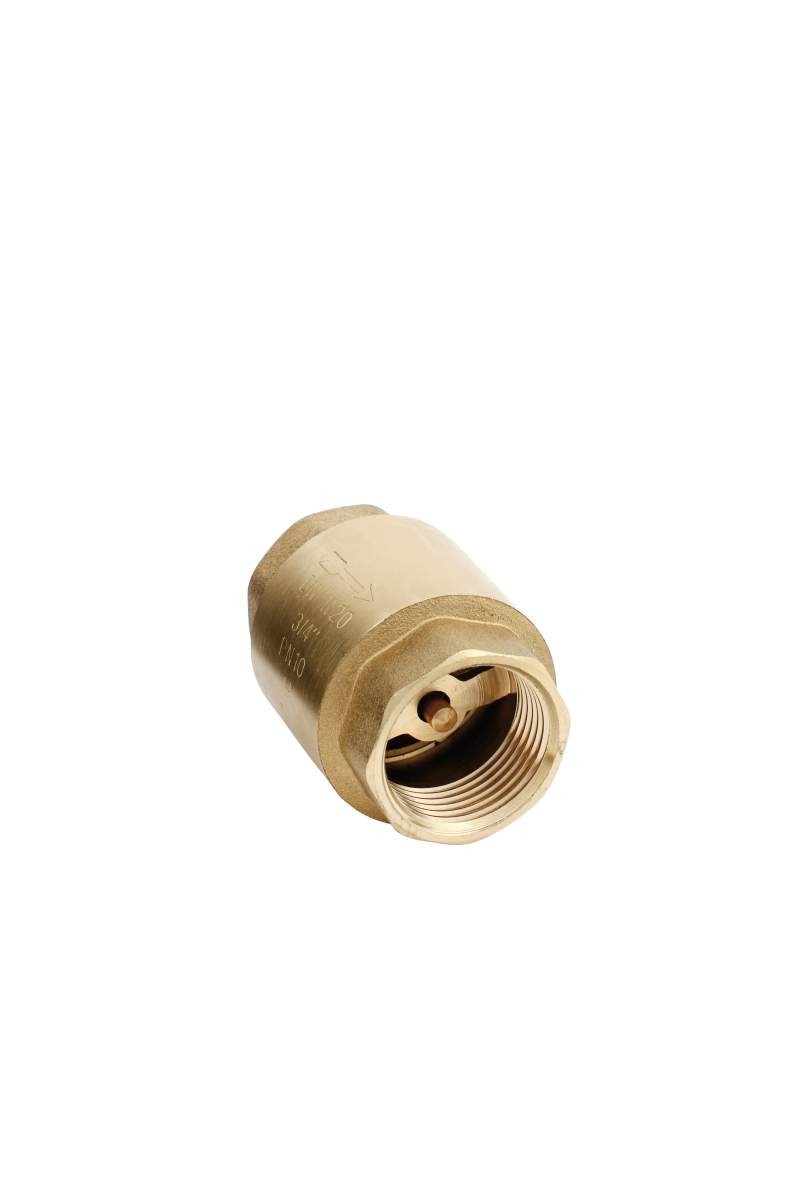

Check valve with brass spindle 2"
Code: ZZ-M50Product detailed description
At G2, this is the largest valve in the range, sized for a building's main water riser, a pump station discharge main, or another point in a larger commercial or industrial installation where a high volume of water needs to be kept from running backward.
Despite the larger bore, the operating principle is unchanged — a brass spindle keeps the disc guided so it opens freely under forward flow and closes immediately the moment flow reverses.
Key parameters:
- Nominal pressure: 10 bar (1.0 MPa)
- Max. working temperature: 100 °C
- Thread: G2

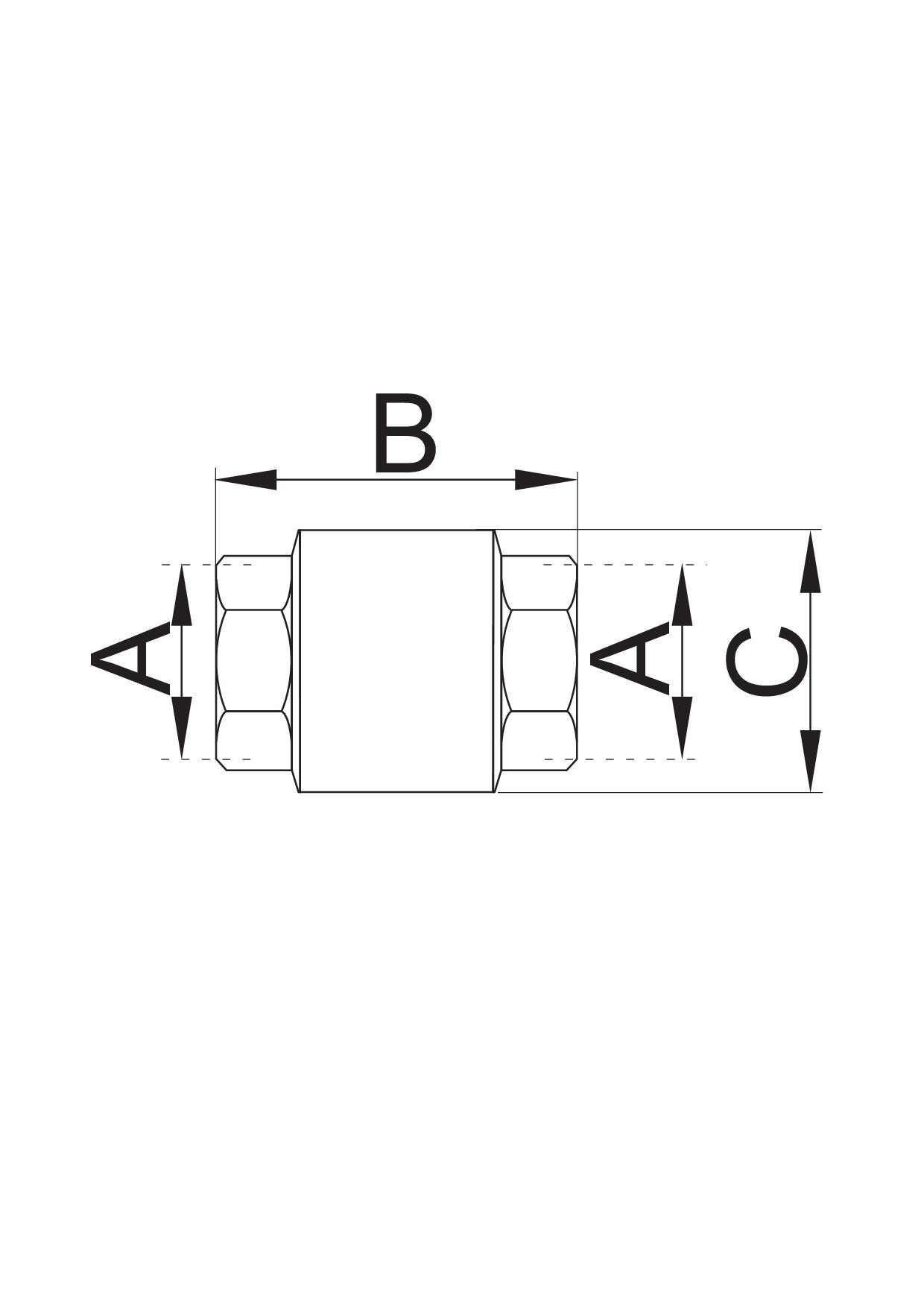

- Overall length (B): 78 mm, height (C): 79 mm
- Net weight: 0.917 kg
- EAN: 5900308736319
Material: brass
Declaration of conformity supplied for every valve
2-year warranty
Additional parameters
| Category: | Check valves |
|---|---|
| Warranty: | 2 roky |
| EAN: | 5900308736319 |
| Závit: | G2 (2") |
| Menovitý tlak: | 10 bar (1,0 MPa) |
| Max. pracovná teplota: | 100 °C |
| Rozmer B (dĺžka): | 78 mm |
| Rozmer C (výška): | 79 mm |
| Hmotnosť netto: | 0,917 kg |
| EAN: | 5900308736319 |
| Materiál: | Mosadz |
| Záruka: | 2 roky |
| Certifikácia: | Vyhlásenie o zhode |
