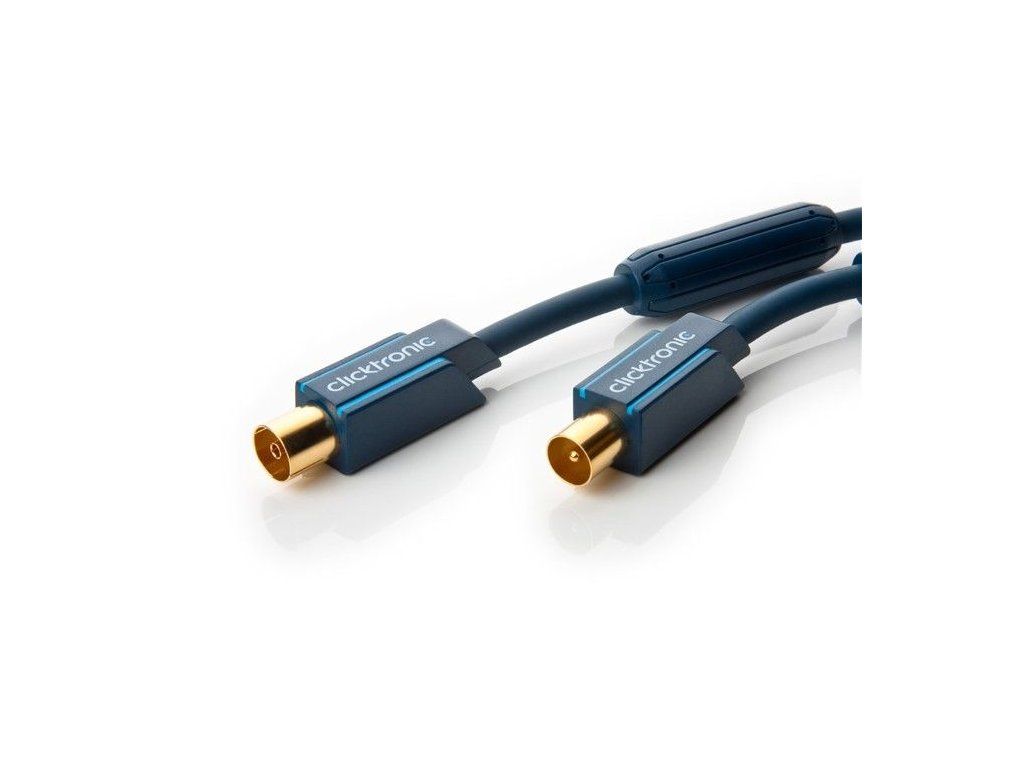

ClickTronic HQ OFC antenna patch cable M/F 75 Ohm, ferrites, 1m

Product detailed description

ClickTronic HQ OFC antenna cable M/F 75 Ohm, ferrites, 1m Distortion and noise-free TV reception is a matter of choosing the right materials. The coaxial cable is specifically designed to satisfy all requirements for high quality and high resolution image transmission. Two-stage shielding, pure materials and precision workmanship ensure HDTV and DVB signal transmission without loss of quality. The cable is guaranteed by the manufacturer for 10 years. - suitable for satellite dish distribution for digital or cable TV - pure copper conductors and double cable shielding for crystal clear picture quality - 24K gold plated connectors for maximum conductivity - ferrites fitted at both ends of the cable - cable is packaged in a paper box with a hanging system and EAN code - connector protection on both sides of the cable Surface finish: triple-layer highly flexible PVC / ABS, blue colour Connector 1: IEC antenna connector male Connector 2: IEC antenna connector female Cable profile: round cable Internal conductor material: OFC (oxygen-free copper) Conductor thickness AWG: 22 Number of shield layers: 2x First layer of shielding: aluminum foil Second layer of shielding: copper braid 96 wires x 0.12mm Impedance: 75 ohm Total cable diameter (mm): 6 Ferrites: on both ends Shielding index: 95 dB Operating temperature: -10 / +80 Length (m): 1
