Digital multifunction panel 200/200A GX

Product detailed description

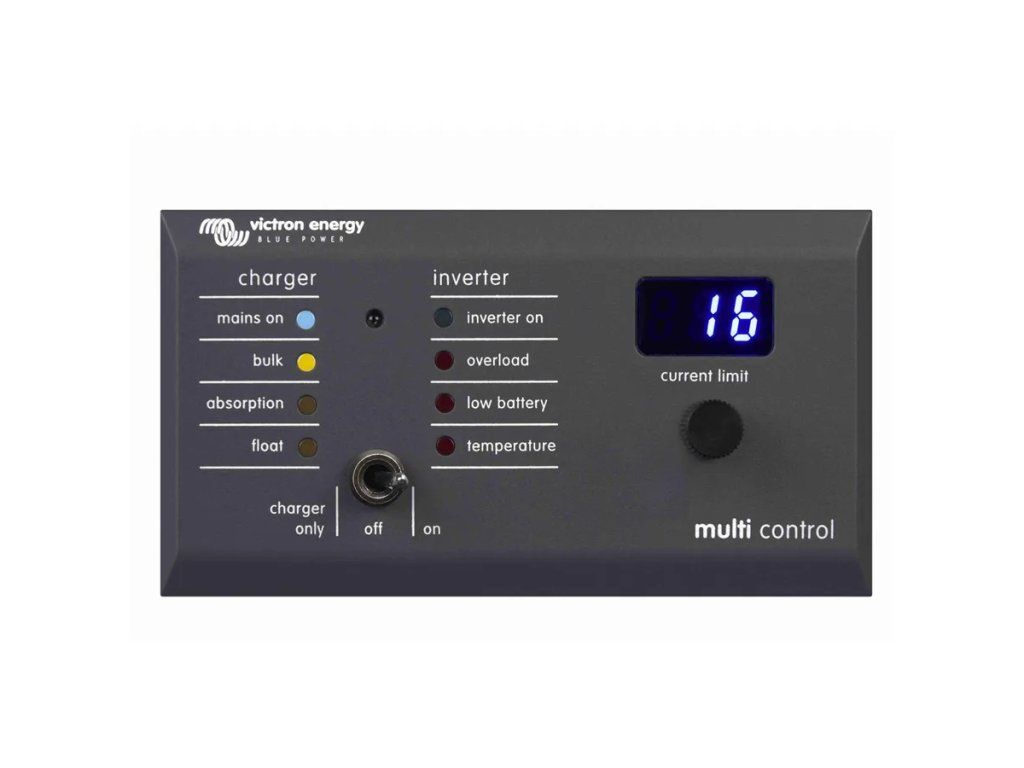

Panel for remote control and monitoring of MultiPlus and Quattro series inverter/chargers in single, parallel and three-phase carriage. It allows a lever switch to remotely switch the connected device on and off, or select "charger only" mode. It also allows to change the value of the maximum input current from the mains or other AC power source. The set value is permanently displayed on the digital display. The panel displays the operating status via LEDs. On the left, the inverter on/off, overload of the appliance, low battery charge and high temperatures of the device are displayed. On the right, the connection to the mains (generator) and the charging phase of the batteries are displayed. Connection to the controlled device is via UTP cable with RJ45 terminals (not included). The panel is designed for installation in a wall, electrical box, etc. The panel has a configuration button for individual settings. It is an optional accessory for MultiPlus and Quattro devices, which are controlled directly on the device as standard. It is similar to the Digital Multifunction Panel 200/200A, but with a different design and mounting: a mounting frame is included to allow the panel to be mounted from the front or rear. The mounting is designed without visible screws on the panel. The panel is made of plastic, making it lighter. Specifications: Supply voltage 9 to 70VDC Power supply current in Standby mode <5mA (12V, 24V) Power supply current in Active mode <30mA (12V) and <15mA (24V) Operating temperature range 0 to 50°C Dimensions 65 x 120 x 55mm Net weight 120 g Device body made of aluminium
