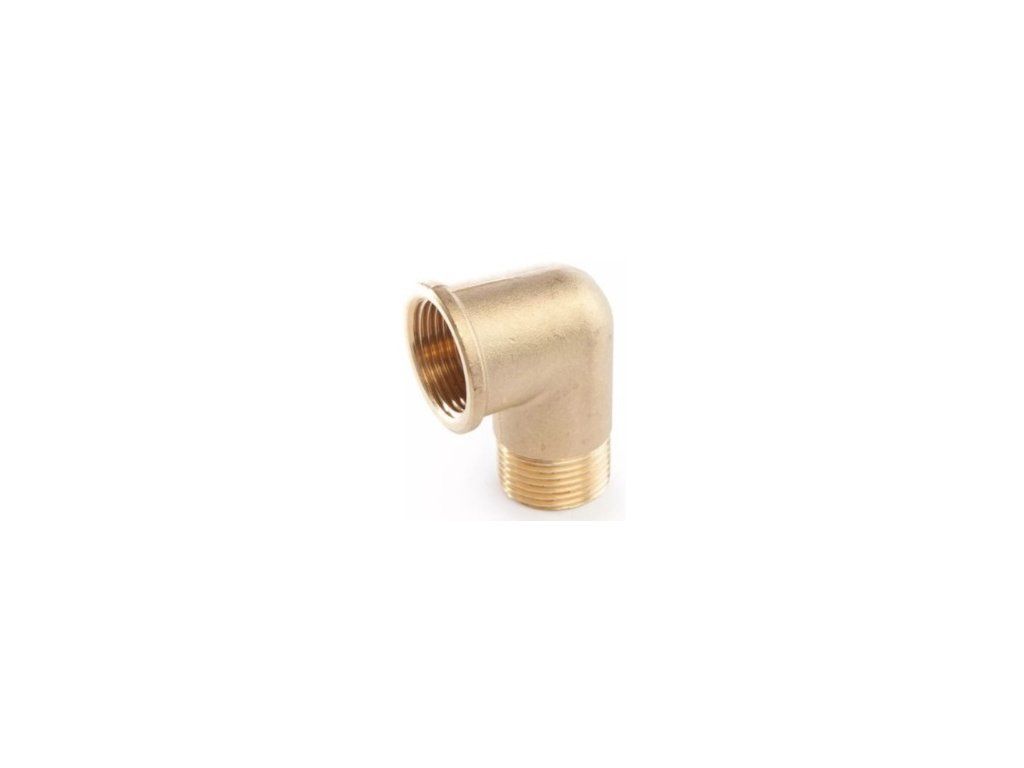

Elbow MF 92, 5/4 "x 5/4"

Product detailed description

Steel heating systems in residential and commercial buildings often require precise and durable fittings to ensure efficient operation. Installers and service technicians frequently encounter situations where a reliable elbow is needed to connect boiler components or redirect flow in the heating circuit. This brass elbow is specifically designed for such applications, providing a secure and long-lasting connection in steel-based heating systems. Its use is common in boiler rooms, underfloor heating layouts, and other central heating configurations where a 5/4 inch connection is required.

Correct selection and installation of this elbow are essential to maintain system integrity and prevent leaks. The brass construction ensures compatibility with standard steel heating components and provides resistance to corrosion and wear in typical operating conditions. The threaded design allows for straightforward installation without the need for welding, making it a preferred option for many installers working with steel heating systems.

Technical parameters

Installation and connection

Installation of this elbow involves threading it into the corresponding steel pipe or fitting. The 5/4 inch thread size must be matched with compatible components to ensure a proper fit. Installers should verify that the threads are clean and undamaged before assembly. A suitable sealing compound or tape should be applied to the male thread to prevent leaks. Common installation mistakes include over-tightening, which can damage the threads, and using incompatible sealing materials that may degrade over time. Proper alignment and support of the pipe are also important to avoid stress on the fitting.

Compatibility and accessories

This elbow is designed for use with standard steel heating pipes and fittings that feature a 5/4 inch thread. It is commonly used in conjunction with other brass or steel fittings to create a complete piping system. When installing this elbow, it is important to ensure that all connected components are compatible in terms of thread type and size. No additional accessories are typically required for basic installation, but sealing tape or compound may be needed to ensure a leak-free connection.

Technical background for designers

As a threaded elbow, this fitting operates by redirecting the flow of heated water or steam within the system. The brass material offers good thermal conductivity and mechanical strength, making it suitable for use in heating circuits. The threaded connection allows for easy assembly and disassembly during maintenance or system modifications. The performance and longevity of the elbow depend on the quality of the installation, the compatibility of connected components, and the operating conditions of the heating system. Proper sealing and alignment are essential to prevent leaks and ensure efficient heat distribution.

Service and operation

During operation, this elbow requires minimal maintenance. Regular visual inspections should be performed to check for signs of corrosion, leaks, or thread damage. If any issues are detected, the elbow should be replaced or repaired as necessary. No specific service intervals are provided for this component, but it should be inspected during routine system maintenance. Ensuring that the system operates within recommended pressure and temperature limits will help extend the service life of the elbow.

Frequently asked questions

Can this elbow be used with copper pipes?
It is not recommended to use this elbow with copper pipes, as it is specifically designed for steel heating systems. Using it with copper may lead to compatibility issues and potential leaks.

What sealing material should be used with this elbow?
A standard sealing tape or compound suitable for brass and steel fittings should be used. Avoid using materials that may degrade or cause corrosion over time.

Is this elbow suitable for high-pressure heating systems?
Yes, the brass construction and threaded design provide sufficient strength for typical heating system pressures. However, it should be used within the manufacturer's recommended operating conditions.

Can this elbow be used in a condensing boiler system?
It is not recommended for use in condensing boiler systems, as the acidic condensate may cause corrosion of the brass material over time. A more resistant material should be selected for such applications.
