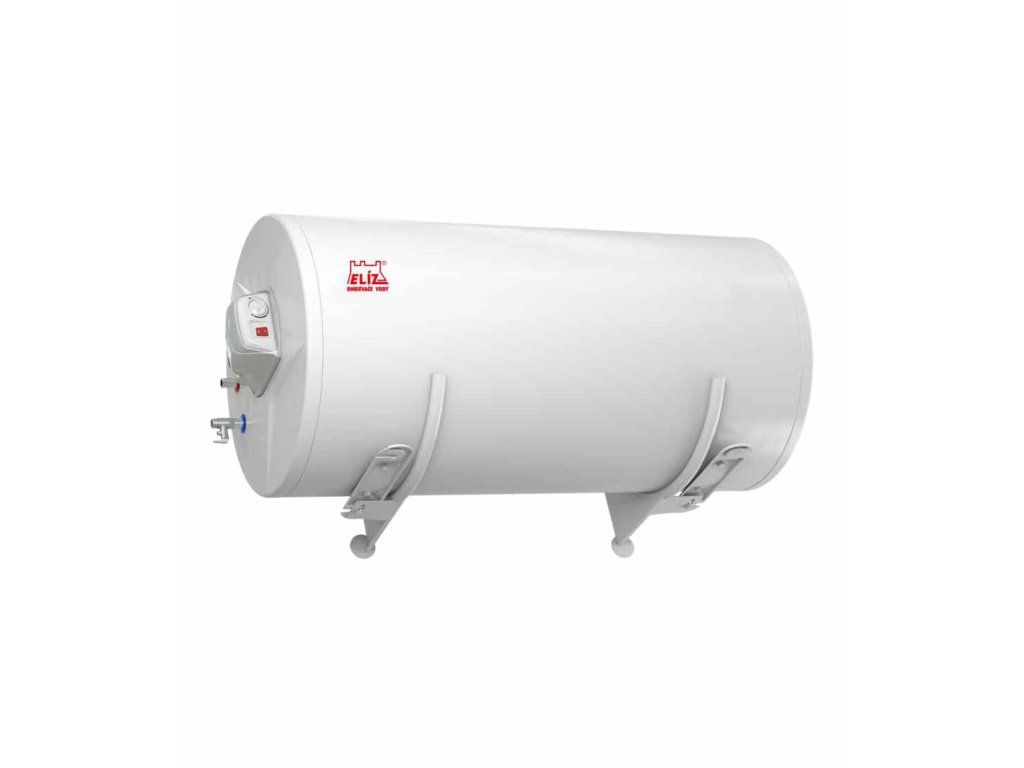

ELIZ EURO 200 X | ELZ_3312 | 200 L Electric Wall-Mounted Water Heater

Product detailed description

The ELIZ EURO 200 X is commonly used in residential and light commercial settings where compact, wall-mounted hot water storage is required. Installers typically integrate these units into domestic hot water circuits, especially in kitchens, bathrooms, or laundry areas where space is limited. The horizontal design allows for efficient use of wall space and facilitates access for maintenance. This model is suitable for systems with standard domestic water pressure and electrical supply, and it can serve either a single point of use or multiple outlets depending on demand. The unit is intended for indoor installation and should be mounted securely on a stable wall surface. The left-side connections simplify pipe routing in tight spaces and reduce the need for long pipe runs.

As a pressurised storage unit, the ELIZ EURO 200 X is designed to operate within typical domestic plumbing systems. It is not recommended for high-pressure environments such as those found in industrial or large-scale commercial buildings. The heater includes safety features such as a thermal cut-out and a built-in thermostat, making it suitable for applications where unattended operation is necessary. The unit is ideal for use with standard electrical circuits and does not require special wiring unless specified by local regulations. The ECO mode helps reduce energy consumption by limiting the maximum temperature to 55°C, which is sufficient for most domestic uses while minimising heat loss and energy waste.

Technical parameters

type	EURO 200 X
volume	200 lit.
power	3000 W
voltage	230 V
current	16 A
electrical protection	IP 24
water connection	1/2 inch
maximum tank pressure	6 bar
heating time from 12 - 65°C	4.2 hours
wall mounting	yes
safety fuse	yes
weight	57 kg
product dimensions	w / h / d: 1255 x 586 mm
tank warranty	5 years
product warranty	2 years
EAN	3800035734522
Code	ELZ_3312
Brand	ELIZ

The 200-litre capacity makes the ELIZ EURO 200 X suitable for households or small commercial premises with moderate hot water demand. The 3000 W power rating ensures rapid heating, with a warm-up time of 4.2 hours from 12°C to 65°C. The 16 A current draw requires a dedicated circuit, and the IP24 rating means the unit is protected against splashing water but not fully waterproof. The 1/2 inch water connections are standard for domestic plumbing, and the maximum working pressure of 6 bar aligns with typical household water pressure levels. These parameters help determine the correct electrical and plumbing infrastructure needed for installation.

Installation and connection

Before installation, ensure the wall is structurally sound and capable of supporting the 57 kg weight of the unit. The unit is designed for wall mounting and includes a bracket for secure attachment. The left-side water connections are 1/2 inch in diameter and require standard fittings. Connect the cold water inlet and hot water outlet using copper or PPR pipes, ensuring all joints are sealed properly to prevent leaks. The unit’s maximum pressure rating of 6 bar means it should not be installed downstream of a pump unless a pressure-reducing valve is included. The electrical supply must be 230 V and capable of handling 16 A load. A fused spur with a 16 A fuse is recommended to protect the circuit. After installation, test the unit by running water through the system and checking for leaks around the connections. Ensure the electrical connections are secure and insulated before powering the unit on.

A common mistake during installation is failing to mount the unit securely, which can lead to vibration or damage over time. Another frequent error is connecting the unit to a circuit that is shared with other high-power appliances, which can cause overloading. Always verify that the electrical supply is isolated before beginning work, and follow local electrical codes when wiring the unit. Once installed, the unit should be tested for basic functionality, including the thermostat response and the ECO mode operation.

Compatibility and accessories

The ELIZ EURO 200 X is compatible with standard domestic plumbing systems and can be integrated with central heating systems if additional controls are provided. It is not designed for use with solar water heating or other renewable sources unless a separate controller is added. No additional accessories are required for basic operation, as the unit includes a built-in thermostat, thermal cut-out, and two anodes for corrosion protection. However, in certain applications, it may be beneficial to install a pressure-reducing valve if the incoming water pressure exceeds 6 bar. The unit does not require external insulation due to its built-in 43 mm polyurethane insulation layer. There are no related products listed for this model.

Technical background for designers

The ELIZ EURO 200 X operates by heating water stored in a pressure vessel using a 3000 W electric element. The tank is constructed from high-quality steel and coated with zirconium enamel to prevent corrosion. The 43 mm thick polyurethane insulation minimises heat loss and reduces energy consumption. The built-in thermostat allows the user to set the desired water temperature between 7°C and 75°C, with an ECO mode that limits the temperature to 55°C for energy savings. The two magnesium anodes provide additional protection against internal corrosion, extending the tank’s lifespan. The unit is designed for integration into standard domestic hot water systems and does not require special controls or additional components for basic operation. The thermal cut-out prevents overheating and ensures safe operation in the event of a fault. The IP24 rating ensures that the unit is protected from accidental contact with fingers and splashing water, making it suitable for indoor use.

The service life of the unit is influenced by factors such as water quality, frequency of use, and the effectiveness of the anodes. Regular maintenance, such as checking the anodes and ensuring proper insulation, can help extend the unit’s lifespan. The 5-year warranty on the tank reflects the manufacturer’s confidence in the durability of the zirconium-coated steel construction. The unit is not designed for use in high-salinity or chemically aggressive water environments unless additional treatment is applied. The horizontal design allows for easier access to internal components during servicing, reducing the time and effort required for repairs.

Service and operation

During operation, the ELIZ EURO 200 X requires minimal maintenance. The built-in thermostat and thermal cut-out ensure safe operation, and the ECO mode helps reduce energy consumption. The unit includes an indicator light to show when heating is active, allowing users to monitor energy usage. The thermal cut-out will automatically shut off the unit if the temperature exceeds safe limits, protecting the tank from damage. The two magnesium anodes should be inspected periodically for signs of wear or depletion, as they play a critical role in preventing internal corrosion. If the anodes are found to be significantly worn, they should be replaced to maintain the tank’s integrity. The unit does not require regular service intervals beyond basic visual inspections and anode checks.

To ensure optimal performance, the unit should be installed in a location with good ventilation to prevent overheating. The electrical connections should be checked periodically for signs of wear or damage, and any loose connections should be tightened. The water connections should also be inspected for leaks or signs of corrosion. If the unit is not going to be used for an extended period, it should be drained and flushed to prevent sediment buildup and potential damage to the internal components. In the event of a fault, the thermal cut-out will activate, and the unit will need to be reset once the issue has been resolved.

Frequently asked questions

Can the ELIZ EURO 200 X be used with a central heating system?
It is not specifically designed for integration with central heating systems. Additional controls or a separate boiler may be required to manage both heating and hot water production.

Is the ECO mode sufficient for most domestic applications?
Yes, the ECO mode heats water to 55°C, which is suitable for most household uses while reducing energy consumption and heat loss.

How often should the anodes be checked?
There is no specified service interval in the technical documentation. Anodes should be inspected periodically for signs of wear or depletion and replaced if necessary.

Can the unit be installed in a location with high ambient temperatures?
The unit should be installed in a well-ventilated area to prevent overheating. Prolonged exposure to high ambient temperatures may affect the performance of the electrical components.

Documents for download

• Product datasheet (PDF)
