ELÍZ EURO 80 T | ELZ_3313

Product detailed description

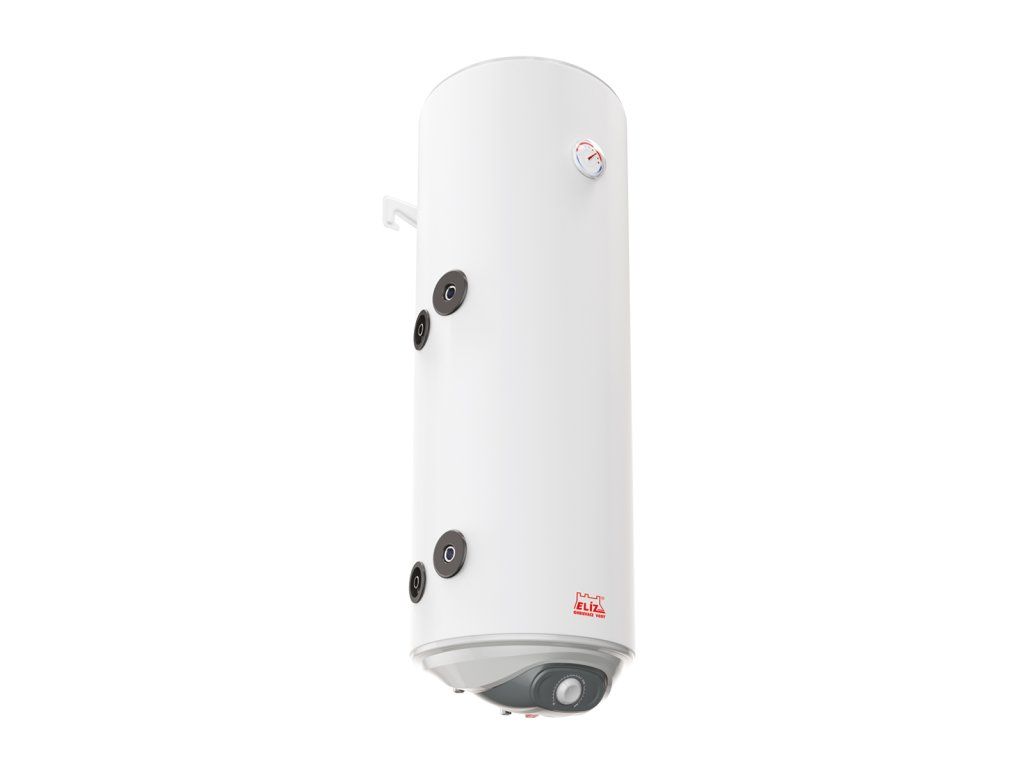

The ELIZ EURO 80 T is a compact, vertical wall-mounted water heater designed for residential and commercial installations where space is limited. It is commonly used in bathrooms, kitchens, and utility areas where both domestic hot water and space heating are required. The unit is suitable for integration into central heating systems, particularly in buildings with a boiler or heat pump as the primary heat source. The vertical orientation allows for efficient use of wall space, while the internal heat exchanger ensures simultaneous heating of water and circulation of the heating circuit. The system is ideal for single-family homes, small apartments, and service buildings where a compact solution is required.

Installers and technicians working with central heating systems will find the ELIZ EURO 80 T particularly useful in scenarios where a combined water and space heating system is needed. The unit is designed to be installed in dry, ventilated areas and is compatible with standard wall mounting systems. It is not intended for outdoor use or in environments with high humidity or temperature fluctuations beyond its operating range. The unit is pre-equipped with mounting brackets and a safety valve, simplifying the installation process and reducing the need for additional components.

Technical parameters

type	EURO 80 T
power	2000 W
voltage	230 V
current	10 A
electrical protection	IP 24
water connection	1/2 inch
maximum tank pressure	6 bar
water heating time from 12 - 65 °C	2.5 hours
pipe connection	1/2 inch
pipe surface area S1	0.49 m²
pipe power S1	14 kW
wall mounting	yes
safety fuse	yes
weight	33 kg
product dimensions	W / H / D: 387 x 1125 mm
tank warranty	5 years
product warranty	2 years
EAN	3800035731910
Code	ELZ_3313
Brand	ELIZ

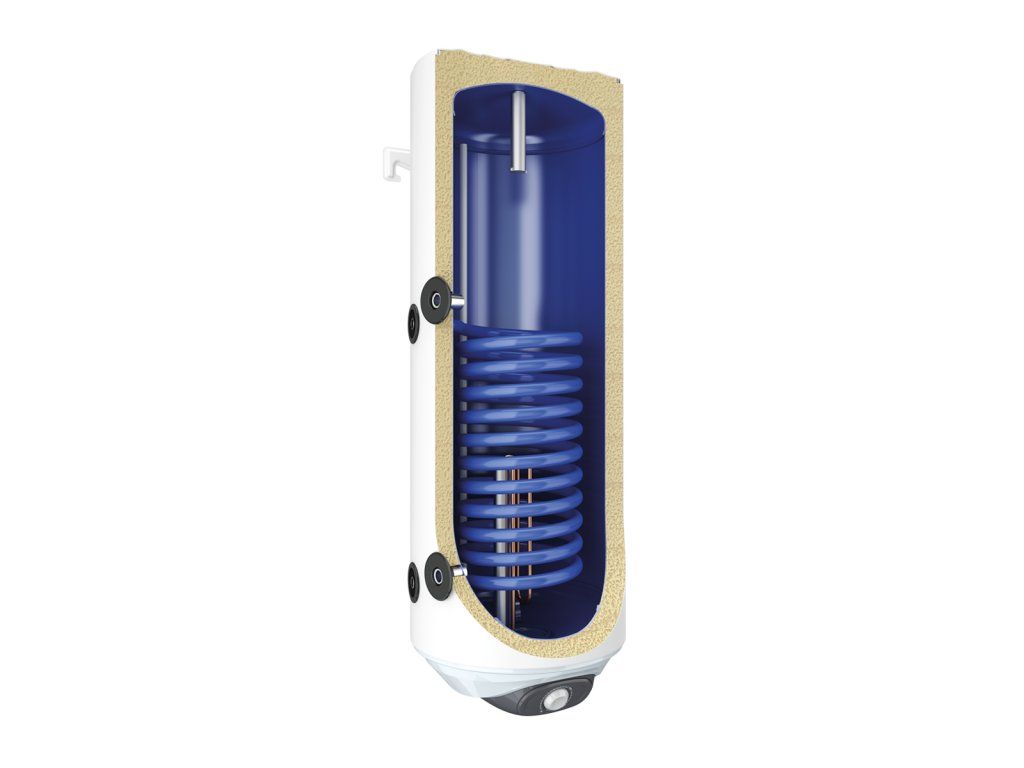

The technical parameters of the ELIZ EURO 80 T are essential for proper sizing and system integration. The 2000 W electric heating element allows for rapid heating of water from 12°C to 65°C in 2.5 hours, making it suitable for applications requiring quick hot water availability. The heat exchanger has a thermal output of 14 kW, which must be matched with the capacity of the external heat source, such as a boiler or heat pump. The maximum operating pressure of 6 bar must be considered when connecting to the central heating system to avoid overpressure conditions. The IP 24 rating ensures basic protection against dust and water splashes, but the unit is not suitable for wet environments like showers or outdoor areas.Installation and connection The ELIZ EURO 80 T is designed for vertical wall mounting and must be installed in a location that allows for proper ventilation and access to the control panel. The water inlet and outlet are 1/2 inch threaded connections, and the heating circuit connections are also 1/2 inch. The unit must be connected to a stable electrical supply of 230 V, with a 10 A fuse or circuit breaker to protect against overloads. It is important to ensure that the electrical supply is properly grounded and that the installation complies with local electrical codes. The unit includes a built-in safety valve and a mounting bracket, but the installer must verify that the wall structure can support the weight of the unit, which is 33 kg. Common installation mistakes include incorrect orientation of the unit, failure to secure the mounting bracket properly, and incorrect electrical wiring, which can lead to overheating or electrical faults.Compatibility and accessories The ELIZ EURO 80 T is compatible with a wide range of central heating systems, including boilers and heat pumps, provided that the heat source can supply the required thermal output of 14 kW. The unit is not compatible with solar thermal systems unless the system is equipped with a buffer tank and a mixing valve to regulate the temperature. The unit includes a built-in safety valve and mounting bracket, but additional accessories such as expansion vessels, pressure regulators, and temperature sensors may be required depending on the system configuration. No related products are listed for this model.Technical background for designers The ELIZ EURO 80 T operates on the principle of simultaneous heating of water and circulation of the heating circuit. The internal heat exchanger transfers heat from the central heating system to the water in the tank, while the electric heating element provides additional heating when needed. The tank is constructed from high-quality steel and is coated with a zirconium glaze to protect against corrosion and scaling. The 33 mm thick polyurethane insulation minimizes heat loss and reduces energy consumption. The two magnesium anodes provide sacrificial protection to the tank, extending its service life. The unit is designed to be integrated into a central heating system with a circulation pump and a thermostat to regulate the temperature of the water and the heating circuit. The efficiency of the system depends on the thermal output of the heat source, the insulation of the tank, and the correct sizing of the heat exchanger.Service and operation The ELIZ EURO 80 T requires minimal maintenance, but regular checks should be performed to ensure optimal performance and safety. The anodes should be inspected and replaced if necessary, as they are the primary means of corrosion protection. The safety valve should be tested periodically to ensure that it opens at the correct pressure. The electrical connections should be checked for signs of wear or overheating, and the control panel should be kept clean and free from dust. The unit is equipped with a thermostat that allows the temperature to be set between 7°C and 75°C, with an ECO mode that reduces energy consumption by limiting the maximum temperature to 55°C. The unit is also equipped with a thermal cut-out to prevent overheating in case of a fault. The manufacturer provides a 5-year warranty on the tank and a 2-year warranty on the entire unit.Frequently asked questions

Can the ELIZ EURO 80 T be connected to a heat pump?
Yes, the unit can be connected to a heat pump provided that the heat pump can supply the required thermal output of 14 kW. The heat exchanger must be properly sized to match the capacity of the heat pump.

Is the ELIZ EURO 80 T suitable for outdoor installation?
No, the unit is not suitable for outdoor installation due to its IP 24 rating, which provides only basic protection against dust and water splashes. It should be installed in a dry, ventilated indoor location.

Can the ECO mode be used for continuous operation?
Yes, the ECO mode can be used for continuous operation. It limits the maximum water temperature to 55°C, reducing energy consumption and minimizing thermal losses. However, the temperature may not be sufficient for all applications, so it should be used based on the specific requirements of the installation.

How often should the anodes be replaced?
The anodes should be inspected and replaced as needed, typically every 3 to 5 years, depending on the water quality and usage. The manufacturer does not specify a fixed service interval for anode replacement.
