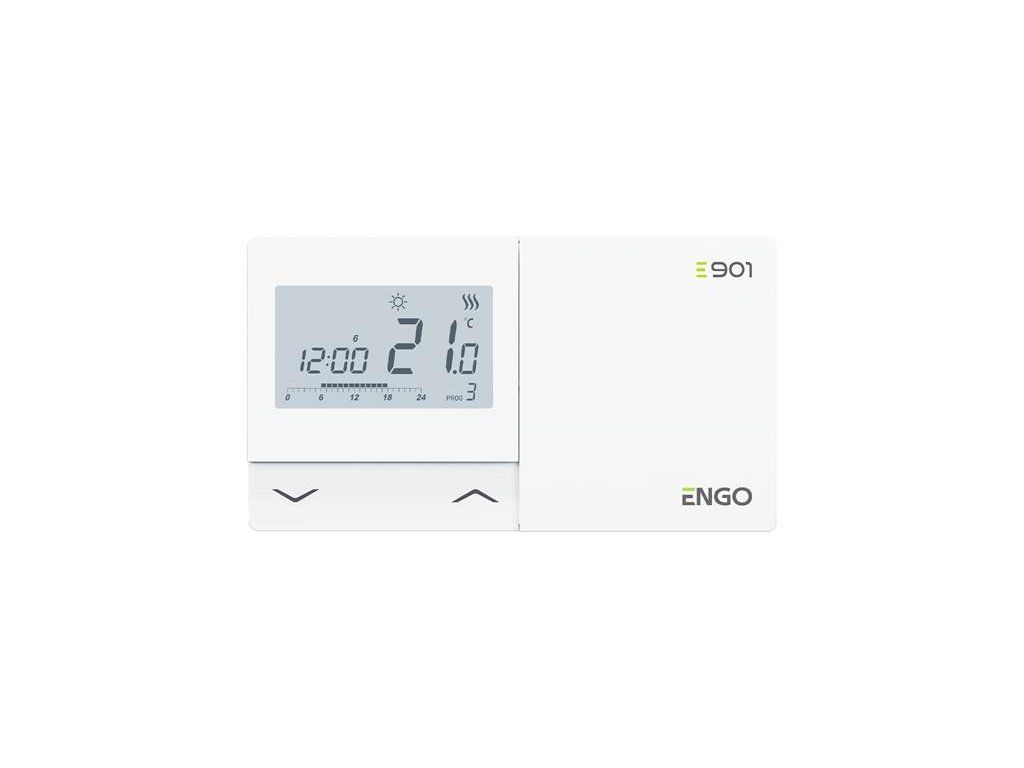

ENGO E901 thermostat

Product detailed description

The E901 is a programmable thermostat used for wired control of heating and cooling equipment. Its function is to maintain comfortable room conditions according to a schedule or constant temperature set by the user. It connects directly to the equipment.

Specifications:

Power: 2 x AA alkaline batteries.
Max. load: 5 (3) A
Output: voltage-free NO/COM relay
Temperature control range: 5 - 35 °C
Temperature setting accuracy: 0.1 °C or 0.5 °C
Control algorithm: TPI or hysteresis (±0.25 °C or ±0.5 °C)
Communication: wired
Dimensions [mm]: 150 x 84 x 22
