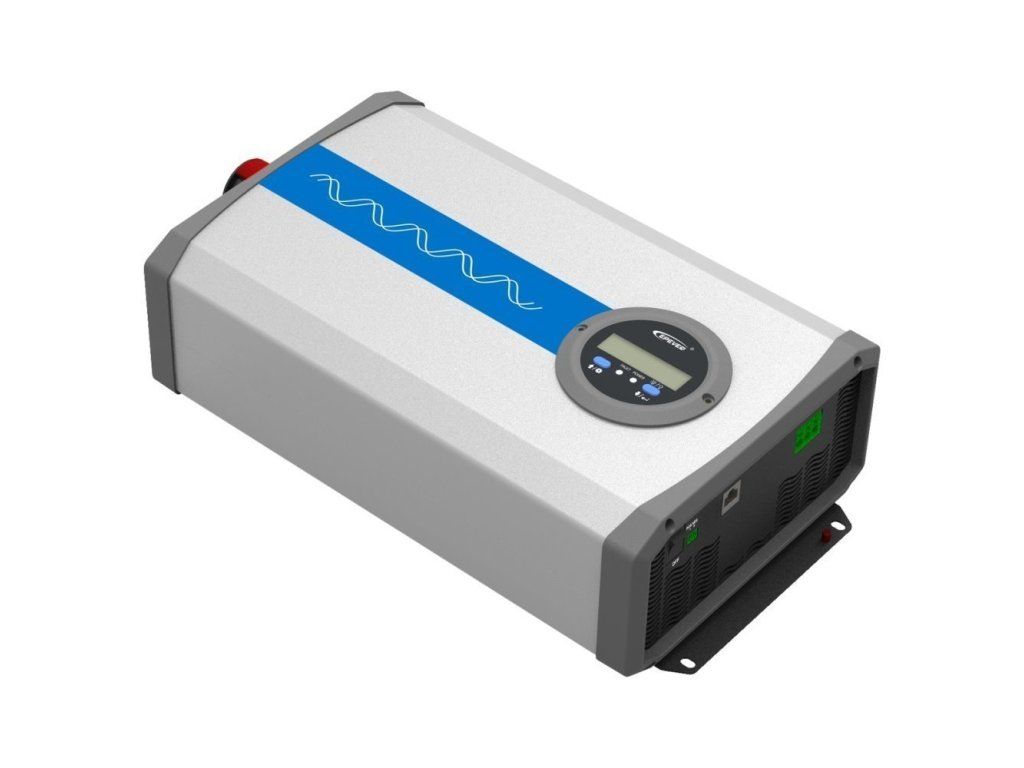

EPever IPower IP3000-42-Plus-T voltage converter 3000W 48V, pure sine wave, SPWM

Product detailed description

IPower-Plus is a new generation of powerful pure sine wave voltage converters with an integrated LCD display for easy setup and monitoring.
Compatible with lithium batteries - uses surge suppression technology to effectively prevent damage to lithium battery cells and the BMS system. Closed-loop dual voltage and current control algorithm brings faster response and better load surge resistance to the inverter. High-performance and high-quality components ensure high reliability.

Please read our article carefully before buying a voltage converter:
How to choose the right voltage converter?

Integrated LCD display and controller for easy monitoring and configuration of the following parameters:
- Output voltage
- Output frequency
- LCD backlight time
- Low Voltage Disconnection Voltage
- Low voltage connection voltage
- Surge connection voltage
- Surge Disconnection Voltage

The industrial design of this inverter has a larger operating temperature range, ease of installation and operation compared to conventional designs. The wide input voltage range is ideal for applications in solar systems as well as many other applications.

Main features:
- Completely electrically isolated input and output
- Fully digital double closed loop control
- Excellent EMC characteristic, widely used for high quality power system
- Advanced SPWM (Sine Pulse Width Modulation) technology and pure sine wave output
- Input surge current suppression technology for lithium battery system
- Very good load/appliance current surge resistance
- Powerful and high quality components for high reliability
- Output power factor up to 1
- Low loss at zero load and standby. Low THD (total harmonic distortion). High conversion efficiency
- Extensive protection: input overvoltage/undervoltage/overvoltage, output overload/short circuit/overheat
- Air cooling, temperature and load controlled
- Rotatable LCD display to simplify monitoring system installation and parameter configuration
- Remote control via phone app and computer software
- Support for various RS485 comm port connection options
- External switch contact design allows remote control
- Approved to IEC62109, EN61000, RoHS

Technical parameters:
Input voltage range: 43.2 - 64VDC
Continuous output power: 3000W
Peak output power: 6000W/5s
Voltage frequency (Hz):  50/60
Input voltage (V):  48 (DC)

Dimensions: 491x231,5x123mm
Weight: 7 kg
Recommended cross section of DC battery cables, length up to 1.5m: 25mm2
Recommended DC fuse: 125A
Operating temperature min./max. (°C):  -20/+45
