Euroster Q1

Product detailed description

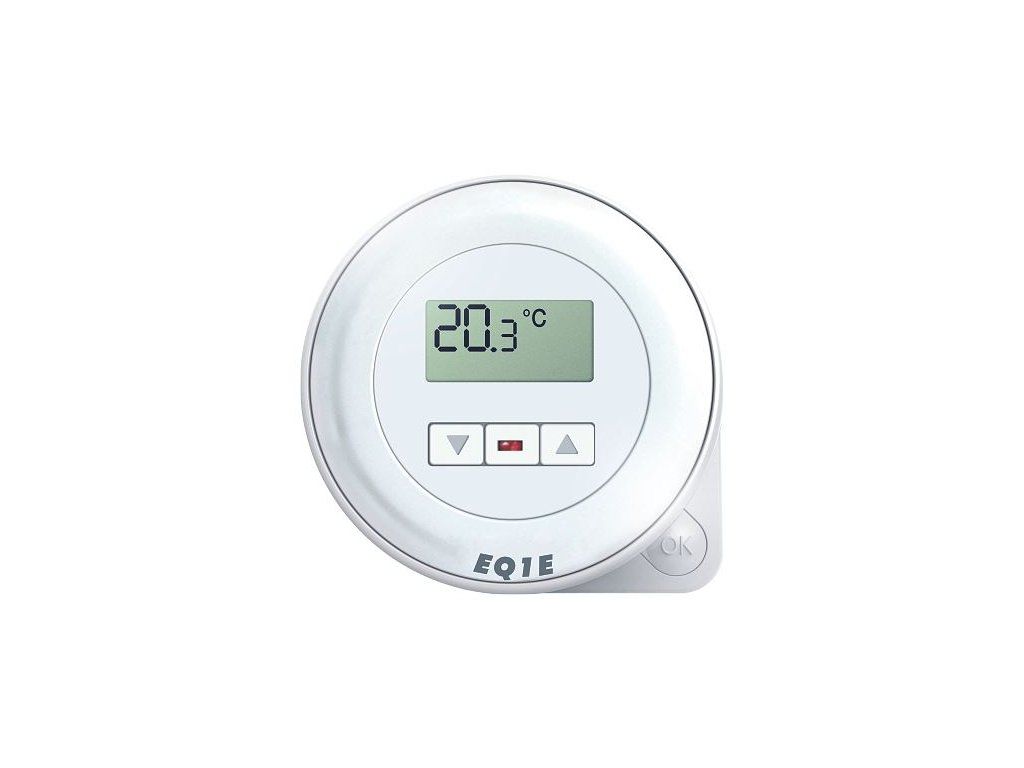

The Euroster Q1 is a compact, battery-powered room thermostat suitable for use in residential and small commercial buildings with traditional heating systems. It is commonly installed in rooms where a basic level of temperature control is required, such as living rooms, bedrooms, and offices. The thermostat supports a simple day program with two temperature settings, allowing for an automatic temperature change at a specified time. This makes it ideal for applications where energy efficiency and comfort are balanced with minimal user input. The thermostat is designed for use with conventional heating systems that operate on 230V 50Hz and require a potential-free relay output for control. It is not suitable for systems requiring advanced programming or remote control features.

Installation typically involves mounting the thermostat on a wall at a height that ensures accurate temperature sensing. The device is connected to the heating system via a relay output, which requires a compatible control system. The thermostat does not require a permanent electrical connection and is powered by two AA batteries, which are not included in the package. The installation process includes securing the device with the provided screws and using the installation template to ensure correct positioning. The user manual provides step-by-step guidance for setup and programming. The thermostat is not suitable for use in environments with high humidity or extreme temperatures, as it is rated for indoor use only with an IP20 insulation class.

Technical parameters

EAN	5903240978007
Package dimensions (mm)	70/110/110
Thermostat type	Wired
Power supply	Battery-powered
Programming	Daily program
Weight	0.15 kg
Code	EUROSTER Q1
Brand	EUROSTER

The technical parameters of the Euroster Q1 are essential for determining its suitability for specific applications. The relay output allows for integration with heating systems that require a potential-free switching contact. The maximum switching load of 5A at 230V 50Hz ensures compatibility with standard heating circuits. The temperature measurement range of -9.9 to +99°C allows for monitoring in a wide range of environments, while the control range of +5 to +45°C is appropriate for typical indoor heating applications. The adjustable hysteresis settings (0.2 / 0.5 / 1 / 2 / 5°C) provide flexibility in system response, and the control accuracy of 0.2°C ensures precise temperature regulation. These parameters are critical for ensuring that the thermostat functions correctly within the intended system and environment.

Installation and connection

Installation of the Euroster Q1 involves mounting the device on a flat, dry wall surface at a height that avoids direct exposure to heat sources or drafts. The installation template included in the package should be used to mark the mounting points before securing the thermostat with the provided screws. The device is connected to the heating system via a relay output, which requires a compatible control system. The wiring should be checked to ensure that the relay is connected correctly and that the thermostat is not wired in series with the load. The user manual provides detailed instructions for programming the day program and adjusting the hysteresis settings. After installation, the system should be tested to confirm that the thermostat responds correctly to temperature changes and that the programmed settings are functioning as intended.

Compatibility and accessories

The Euroster Q1 is compatible with heating systems that use a potential-free relay output for control. It is not suitable for use with systems that require a continuous power supply or advanced programming features. The thermostat is often used in conjunction with conventional boilers, radiators, and underfloor heating systems. When installing the device, it is important to ensure that the control system supports the relay output and that the switching load does not exceed the maximum rating of 5A at 230V 50Hz. Accessories such as batteries, mounting screws, and the installation template are included in the package, but the batteries must be purchased separately. Related products such as the Avansa 2003 offer alternative options for users requiring different features or compatibility with other systems.

Technical background for designers

The Euroster Q1 operates on a simple on/off control principle, using a relay to switch the heating system based on the programmed temperature settings. The device is powered by two AA batteries, which provide a stable 3V supply for the internal electronics. The relay output is potential-free, meaning it does not require a separate power source for operation. The thermostat uses a digital temperature sensor to measure the ambient temperature and compare it to the programmed setpoints. When the measured temperature deviates from the setpoint by the selected hysteresis value, the relay is activated to turn the heating system on or off. The device is constructed with a plastic housing that provides insulation and protection against dust and minor impacts. The IP20 rating indicates that it is suitable for indoor use only and should not be exposed to water or high humidity. The service life of the thermostat is influenced by factors such as battery life, environmental conditions, and the frequency of temperature changes. Proper installation and regular maintenance can help ensure long-term reliability and efficiency.

Service and operation

The Euroster Q1 requires minimal maintenance due to its simple design and battery-powered operation. The device should be checked periodically to ensure that the temperature readings are accurate and that the relay is functioning correctly. If the thermostat fails to respond to temperature changes, the batteries should be replaced with new AA batteries. The user manual provides instructions for replacing the batteries and resetting the device if necessary. There are no scheduled service intervals specified for the device, and no internal components require regular cleaning or adjustment. In the event of a malfunction, the thermostat should be disconnected from the heating system and inspected for signs of damage or wear. If the issue persists, the device should be replaced with a new unit. The user manual also includes troubleshooting tips for common issues such as incorrect temperature readings or failure to activate the heating system.

Frequently asked questions

Can the Euroster Q1 be used with a condensing boiler?
Yes, the Euroster Q1 can be used with a condensing boiler as long as the boiler is compatible with a potential-free relay output. The thermostat does not require a continuous power supply and operates independently of the boiler's control system.

Is it possible to adjust the hysteresis manually?
Yes, the hysteresis can be adjusted manually using the settings on the thermostat. The available hysteresis values are 0.2, 0.5, 1, 2, and 5°C, allowing for fine-tuning of the system's response to temperature changes.

Can the Euroster Q1 be programmed for more than two temperature settings per day?
No, the Euroster Q1 is designed for a single temperature change per day. It supports two temperature settings with one automatic switch between them. For more complex programming, a different thermostat model would be required.

Does the Euroster Q1 require a permanent electrical connection?
No, the Euroster Q1 is powered by two AA batteries and does not require a permanent electrical connection. The batteries are not included in the package and must be purchased separately.
