Flush Valve for Standard Concealed Cistern

Product detailed description

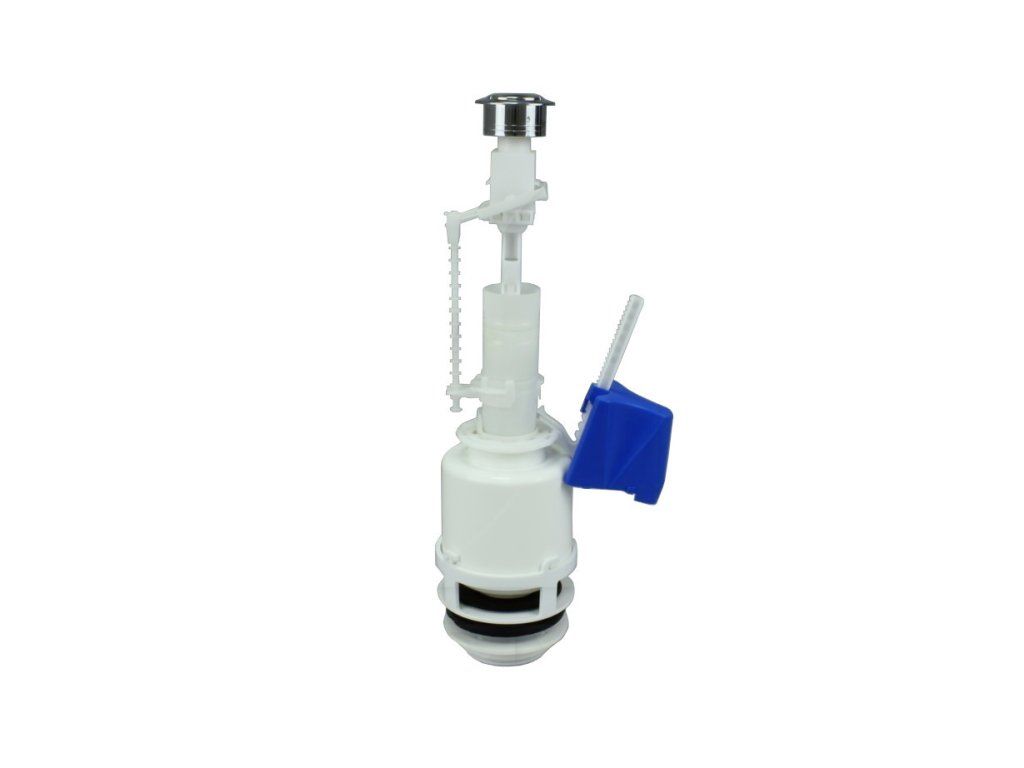

This flush valve is used in concealed cisterns of compact toilet units commonly found in residential and commercial bathrooms. It is installed beneath the floor or wall surface and operates by releasing stored water into the toilet bowl when triggered manually. Installers working on maintenance or repair tasks in older buildings or during system upgrades will frequently encounter this component. Common issues include incomplete flushing, continuous water flow after flushing, or reduced performance due to wear of internal seals. This part is specifically designed for the Standard model and ensures compatibility with its mechanical and hydraulic layout.

The flush valve is typically integrated into low-flow or standard-volume systems and functions within standard domestic water pressures. It is not intended for high-pressure or industrial applications. Installers should verify the model of the cistern before replacement and ensure that all internal components such as the float and inlet valve remain functional. This part does not require electrical power and operates purely through mechanical action.

Technical parameters

Installation and connection

To replace the flush valve, the cistern lid must be removed and the internal assembly disassembled. The old valve is detached from its mounting points and replaced with the new unit. No special tools are required for this process, though a basic screwdriver and pliers may be useful for removing retaining clips or fasteners. Care should be taken to avoid damaging the cistern body during removal.

Installers should check the alignment of the new valve with the existing mounting points and ensure that the rubber seal is properly seated against the cistern outlet. A common mistake is improper sealing, which can lead to continuous water flow or leakage. After installation, the system should be tested by filling the cistern and triggering a flush to confirm that the valve closes fully and stops water flow.

Compatibility and accessories

This flush valve is specifically designed for the Standard compact toilet unit with a concealed cistern. It is not compatible with other models or cistern types. When replacing this part, it is advisable to inspect and replace other internal components such as the inlet valve and float mechanism if signs of wear are present. No additional accessories are required for installation, and the part is supplied as a standalone replacement.

Technical background for designers

The flush valve operates via a mechanical linkage that opens the valve when the toilet handle is depressed. As water is released, the weight of the valve and the decreasing water level in the cistern cause it to close again. The sealing surface is made of rubber or similar material and is subject to wear over time. Proper integration into the system depends on correct positioning and sealing against the cistern outlet. The performance and longevity of the valve depend on the quality of the seal and the absence of grit or debris in the water supply.

The material of the valve body is typically durable plastic or metal, chosen for resistance to corrosion and long-term use. The design allows for easy replacement without requiring major modifications to the cistern or surrounding structure. Designers should consider the mechanical forces involved in the opening and closing cycle when planning system layout and ensuring that the valve is accessible for future maintenance.

Service and operation

Regular inspection of the flush valve is recommended to identify early signs of wear, such as leakage or reduced sealing effectiveness. No scheduled service intervals are specified for this part, but it should be replaced when performance issues arise. During routine maintenance, the valve should be checked for blockages or mineral deposits that could interfere with its operation. If the cistern continues to fill after a flush, the most likely cause is a worn or damaged seal, and replacement of the valve is advised.

Frequently asked questions

Can this flush valve be used with other cistern models?
No, it is specifically designed for the Standard compact cistern and will not fit other models.

Why is my cistern still filling after I flush?
This is usually caused by a worn or damaged seal on the flush valve. Replacing the valve should resolve the issue.

Do I need any special tools to install this part?
No, basic hand tools such as a screwdriver and pliers are sufficient for installation.
