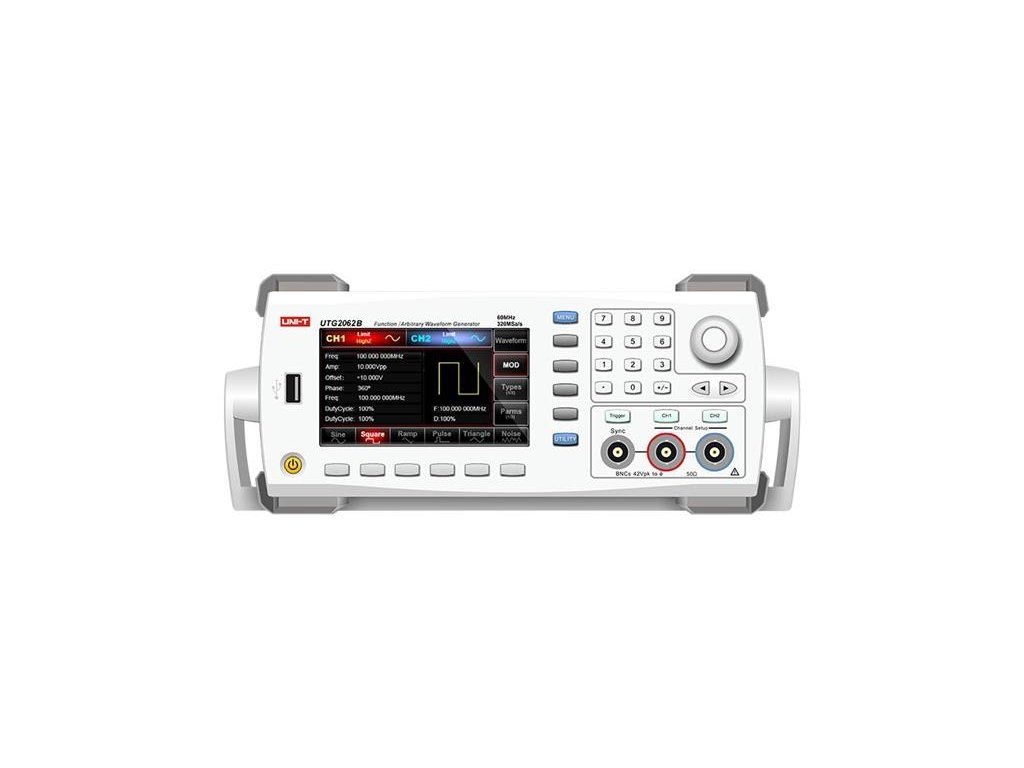

Generator UNI-T UTG2062B

Product detailed description

Generator UNI-T UTG2062B
The UTG2062B feature/arbitrary waveform generator is an advanced dual-channel generator using direct digital synthesis technology to produce accurate and stable output of arbitrary waveforms with 1μHz resolution, maximum output frequency of 60MHz, sampling rate of 320 MS/s. There is signal modulation by various modulations such as AM, FM, PM, ASK, FSK, PSK, PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM, Sweep, etc. From internal or external source, linear and logarithmic oscillation. The panel is ergonomically designed for easy operation. The use of the generator is envisaged in the design, development, testing, troubleshooting and for repair of electronic and electroacoustic equipment such as testing circuits and devices in cellular and wireless systems, radio and television systems; testing of semiconductor components, etc. Thanks to DDS technology, it is able to generate signals that are accurate and clean with minimal distortion. The user-friendly panel with easy operation and clear display allows you to work much more efficiently and quickly. It has a USB interface and powerful software for transferring data to your computer. More than 160 waveforms are stored in the internal hard memory, e.g. mathematical, bioelectrical, medical, trigonometric, anti-trigonometric, transient phenomena in automobiles, etc. It has an excellent price/performance ratio and a multitude of functions. It can be used in university laboratories, research institutes, etc. This instrument meets the safety requirements for electronic measuring instruments GB4793 and IEC 61010-1/2 safety standards, meets the safety standards for CAT II 300V isolated voltage.


Product Parameters :

- dual channel generator - 2 equivalent, independent channels
- the possibility of linking both channels
- digital signal synthesis DDS
- generation of sinusoidal signals with a frequency of 1μHz to 60MHz
- generation of rectangular signals with a frequency of 1μHz to 60MHz
- generation of various other waveforms (sine, rectangle, ramp, triangle, pulse, noise, DC, arbitrary)
- modulation types AM, FM, PM, ASK, FSK, PSK, PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM, Sweep
- use of modulation signal from internal and external source
- the possibility of entering the shape of the signal by mathematical formula
- possibility to enter the phase of the signal in degrees or radians
- support for output sweep and burst signals
- supports internal/external/manual trigger
- 6-bit high-precision frequency measurement up to 200MHz of external TTL compatible signals
- output signal amplitude up to 10Vpp at 50Ω impedance or up to 20Vpp in high impedance mode
- protection of terminals against overvoltage
- 320MS/s sampling rate and 16 bit vertical resolution
- ability to store up to 16 groups of variable digital waveforms
- front panel USB interface for inputting waveforms
- uSB Host interface on rear panel, powerful PC software
- lAN connector on the rear panel for firmware updates
- multi-function knob and numeric keypad for easy operation
- system help
- 4.3" high resolution TFT LCD colour display


Technical parameters :

- output channels: 2
- sampling rate: 1.28 GS/s (interpolation), 320 MS/s (DDS mode)
- output frequency: up to 60MHz
- frequency resolution: 1μHz
- vertical resolution: 16 bits (including symbols, inscriptions)
- wavelength of any waveform: 8pts to 16Mpts
- non-volatile memory: up to 160 groups of arbitrary curves can be stored
- types and frequencies of generated signals:
sinusoidal: from 1μHz to 60MHz
rectangular: from 1μHz to 60MHz
ramp (sawtooth): from 1μHz to 3MHz
pulse: from 1μHz to 20MHz
arbitrary: from 1μHz to 15MHz
Gaussian noise: up to 60MHz (-3dB)
- DC signal offset (peak AC+DC): ±5V (50 Ω), ±10V (high resistance)
- minimum rise/fall time of any signal: typically < 7ns
- amplitude range: 1mVpp to 10Vpp (50Ω), 2mVpp to 20Vpp (High Z)
- modulation types: AM, FM, PM, ASK, FSK, PSK, PWM, BPSK, QPSK, OSK, DSB-AM, SUM, QAM, Sweep
- operating modes: output on/off, continuous, modulation, sweep, series
- tTL compatible signal frequency measurement: yes, in the range of 100mHz - 200MHz with an accuracy of ± 51 ppm
- output impedance: adjustable from 1Ω to 1kΩ, or High Z, factory setting 50Ω
- output short-circuit protection: yes
- terminal surge protection: at input voltage > ± 12.0V, frequency < 10kHz, amplitude > 100mVpp
- terminal surge protection: at input voltage > ±2.0V, frequency <10kHz, amplitude ≤100mVpp
- overall harmony. distortion 20kHz, 1Vpp (typical value): <0.2%
- accuracy: ±0.5ppm 25℃
- aging rate in the first year: 1 ppm
- temperature coefficient: ± 0.5 ppm/℃
- temperature coefficient: <2 ppm/℃
- display: 64K TFT LCD, 4.3" diagonal, WVGA (480 x 272 pixels)
- uSB Device Interface: yes
- power supply: AC 100 V to 240 V, 45 Hz to 440 Hz, CAT II
- power consumption: <50W
- fusing: fuse 250 V, T2 A
- weight: 3.2 kg
- dimensions: 305 x 230 x 93mm
- product colour: white and grey


Contents of the individual package :

- function generator UTG2062B: 1pc
- power cord: 1pc
- uSB interface cable: 1pc
- bNC-BNC cable (1m): 2pcs
- czech and English manual: 1pc


Packaging for wholesalers :

- standard quantity per carton: 2pcs
- standard carton dimensions: 380 x 330 x 320 mm
- gross weight of carton: approx. 8.5 kg


MANUFACTURER: UNI-TREND
