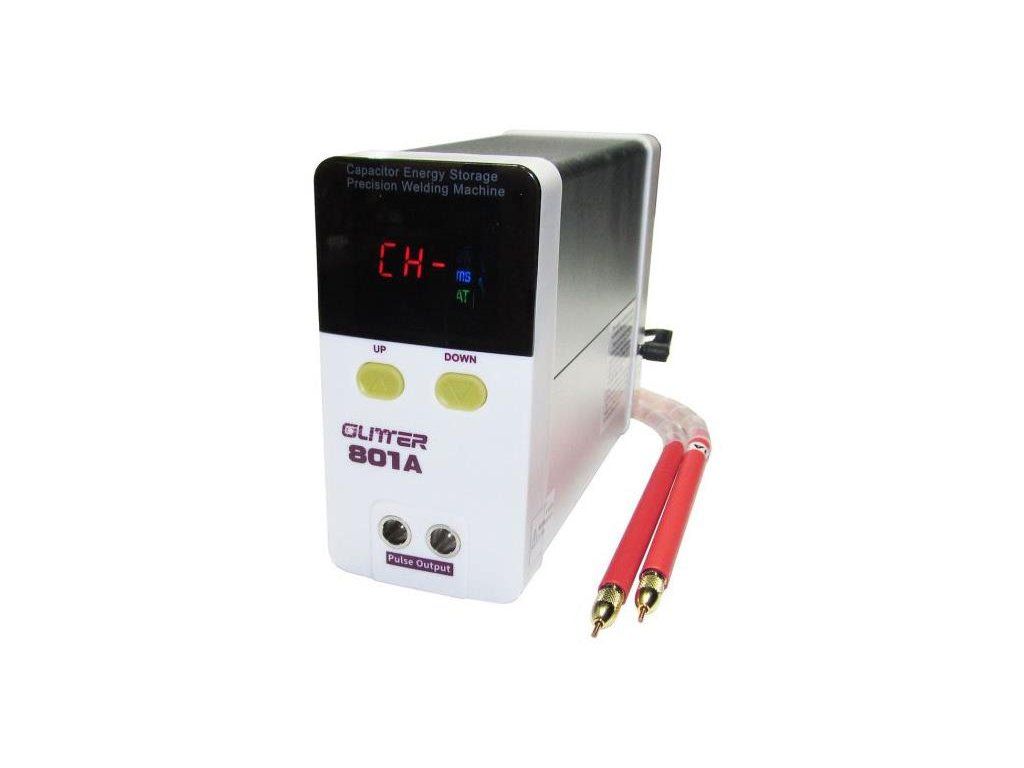

GLITTER 801A battery spot welder

Product detailed description

The GLITTER 801A is a capacitor spot welder for spot welding of battery packs into battery packs using nickel clad plates. A welding pen or integrated arm can be attached to the station. Compared to conventional transformer welders, it offers lower weight and dimensions and higher pulse energy. The welder also allows the welding of nickel strips on an aluminium substrate. The welder is activated 20ms after the tips are applied to the seals.


Technical parameters.

- power supply: 15V / 1.5 A, 230V AC adapter included
- first charging time: 5-15min
- output welding voltage: 5.5 - 5.8 V
- output welding current: 500-3500A
- max. welding power: 11,6 kW
- max. welding energy: 60 J
- pulse time: 0.5 - 5 ms
- welding power setting range: 0 - 99 t
- welding mode: AT
- recovery time: 100 - 500 ms
- nickel strip thickness: 0.2 - 0.15 mm
- size: 125 × 65 × 162mm
- weight: 1.8 kg

Contents of the package:
- welding machine GLITTER 801A
- welding tips
- 4× spare tips
- 20× nickel pins 0,15 × 8 × 100 mm
- 20× nickel pins 0,15 × 10 × 100 mm
