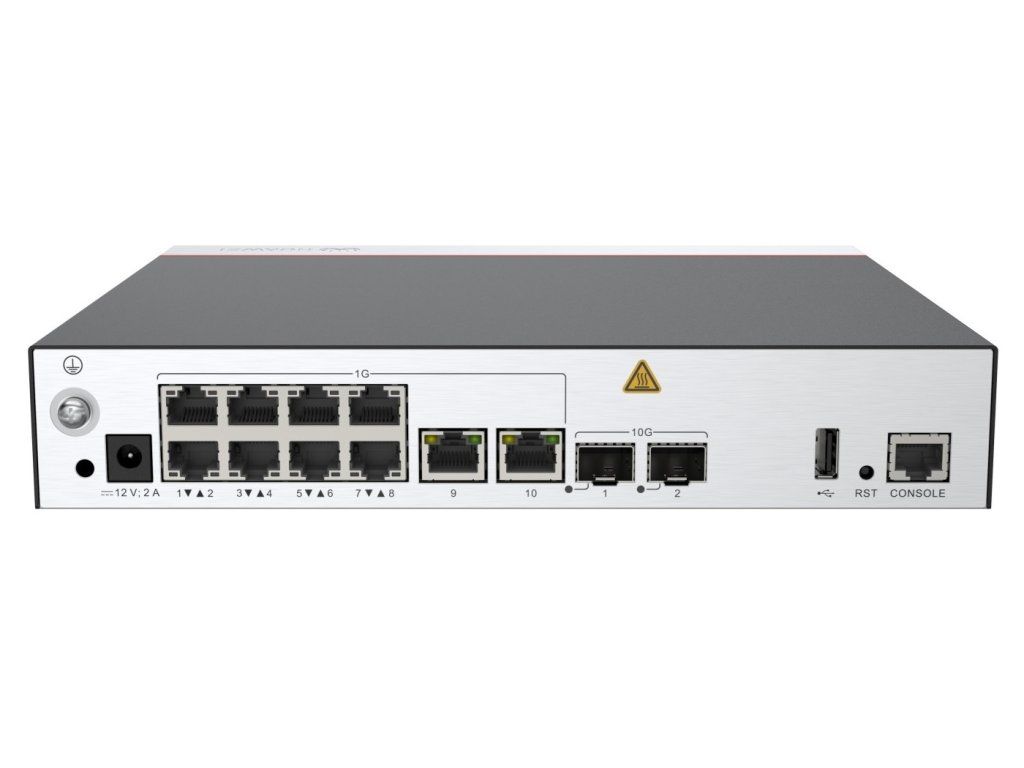

Huawei AC650-128AP Wireless Access Controller 10x GB ETH, 2x 10GB SFP

Product detailed description

The AC650-128AP is a high-capacity wireless access controller (WAC) for small office and home (SOHO) environments. It can manage up to 128 access points (APs) and integrates GE Ethernet switch functionality to achieve integrated access for wired and wireless users. Also, the AC650-128AP features high scalability and offers users considerable flexibility in configuring the number of managed APs. With these strengths, this WAC can be used to build small and medium campus networks, enterprise office networks, wireless metropolitan area networks (MANs), and hotspot coverage networks High-capacity, high-performance design Manages up to 128 access points, meeting campus and SOHO requirements. Provides 2 x 10GE optical interfaces and 10 x GE electrical interfaces that support transmission rates up to 10 Gbps. SmartRadio for WiFi optimization Load balancing for smart roaming: A load balancing algorithm allows the detection of load balancing between access points in the network after STA roaming to adjust the STA load on each access point, improving network stability. Intelligent Dynamic Frequency Allocation (DFA) technology: the DFA algorithm is used to automatically detect adjacent and common channel interference and identify redundant radios in the 2.4 GHz band. Through automatic negotiation between APs, the redundant radio is automatically switched to another mode (AP models with dual 5G support switching from 2.4G to 5G) or turned off to reduce 2.4GHz co-channel interference and increase system capacity. Intelligent Conflict Optimization Technology: Dynamic Enhanced Distributed Channel Access (EDCA) and airtime scheduling algorithms are used to schedule each user's channel occupancy time and service priority. This ensures that each user is allocated a relatively equal amount of time to use the channel resources and user services are scheduled in an orderly manner, which improves service processing efficiency and user experience. Different roles WAC has a built-in Portal/AAA server and can provide user authentication using Portal/802.1X protocol, thus protecting the customer. investment. Flexible networking WAC can be deployed in in-path, off-path, bridge or mesh network mode and supports both centralized and local forwarding mode. WAC and access points can be networked at Layer 2 or Layer 3. In addition, network address translation (NAT) can be deployed when APs are deployed on a private network and the WAC is deployed on a public network. The WAC is compatible with Huawei 802.11n, 802.11ac, and 802.11ax APs and supports hybrid networking of 802.11n, 802.11ac, and 802.11ax APs for easy scalability. Built-in application identification server Supports Layer 4 to Layer 7 application identification and can identify more than 6,000 applications, including common office applications and P2P download applications such as Lync, FaceTime, YouTube, and Facebook. It supports application-based policy management technologies, including traffic blocking, traffic throttling and priority adjustment policies. Supports automatic extension of applications in the application signature database without the need for software updates. Comprehensive reliability design Supports WAC 1+1 HSB and N+1 backup, ensuring uninterrupted services. Supports port backup based on Link Aggregation Control Protocol (LACP) or Multiple Spanning Tree Protocol (MSTP). Supports WAN authentication leakage between access points and WAC devices. In local forwarding mode, this feature keeps existing STAs online and allows new STAs to access when APs are disconnected from the WAC, ensuring continuity of service. Built-in visualised network management platform The AC650-128AP has a built-in web-based system that is easy to configure and provides comprehensive monitoring and intelligent diagnostics. Dashboard A single page integrates real-time summary and statistics. KPIs are displayed in graphs, including the performance of users, radio stations and access points, allowing users to gain useful insights from the vast amount of data while having an instant overview of the status of the device and network. One-click diagnostics solve 80% of common network problems The web-based system supports real-time intelligent diagnostics and periodic one-click diagnostics from user, access point and WAC device dimensions, providing actionable suggestions for troubleshooting. Basic technical specifications: Number of managed APs 128 Number of users 1024 Maximum number of access users varies depending on authentication mode. Number of MAC address entries 8192 Forwarding capability 10 Gbps Number of VLANs 4096 Number of IPv4 routing entries: 4096 IPv4: 2048 Number of ARP entries 4096 Number of multicast forwarding records 2048 Number of DHCP IP address ranges 64 IP address ranges, each containing a maximum of 8192 IP addresses Number of ACLs 4096 Dimensions (h x d x h) 43.6 x 210 x 250 (mm) Interface: 2x 10 GE optical port + 10 x GE RJ45 1x Console (RJ45), 1x USB Max. power consumption: 21 W Weight: 1.47 kg Operating conditions: -60 m to +1800 m 0°C to 45°C 1800 m to 5000 m: Temperature decreases by 1°C with every 220 m altitude. Relative humidity: 5% ~ 95% non-condensing Power Module: AC/DC adapter
