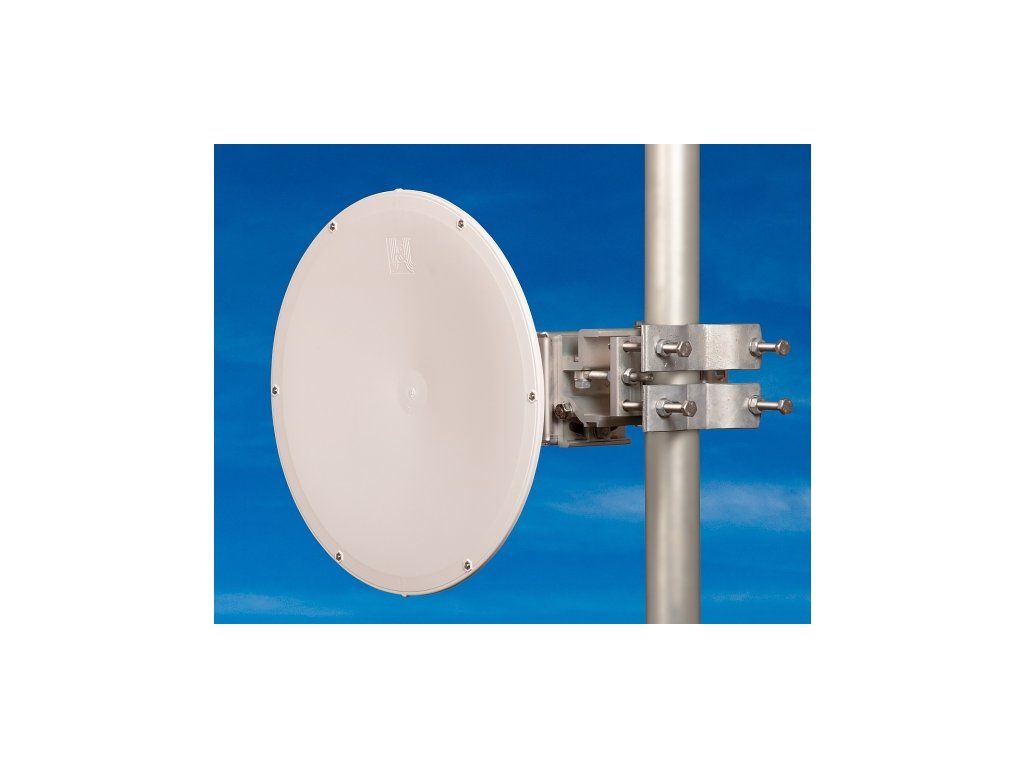

J&J Jirous dual-polarization parabolic antenna, 5 GHz, 24dB gain JRC-24DD MIMO Precision SMA

Product detailed description

Parabolic antenna JRC-24DD MIMO Precision dual-polarization, 5 GHz, gain 24dB, SMA connector Product Features: - Dual-polarization MIMO antenna, horizontal/vertical or 2x45° polarization - Precision, solid mount JDMW-900 developed for professional microwave links - Fine and easy elevation and azimuth adjustment - Extra high corrosion resistance - Deep parabola increases isolation between antennas on the mast and improves radiation pattern - New concept with extended frequency band - High pre-attenuation ratio - Easy installation of JR-200 or JR-250 Alu - Directional links or client connections for medium or short distances in difficult conditions - You can determine the achievable link distance in the link calculation - Radom (plastic dish cover) is included with the antenna at no extra charge Technical parameters: - Gain 24.5 ±1 dBi - PSF 5.1 - 5.9 GHz 1.4 - Parabola diameter 400 mm, aluminum alloy with baked-on paint - UV stabilized ABS radome The radiator is internally treated with high frequency "Hydrophobic coating" technology to increase moisture resistance. Recommended accessories: - For the use of GentleBOX JR-200 and JR-250 Alu we recommend the model with R-SMA connectors. - GentleCLIP vapor mount for mounting Ubiquiti Rocket M5 - Pigtail R-SMA/MMCX - Pigtail R-SMA/UF.L Package: - 1 piece assembled, holder in separate box
