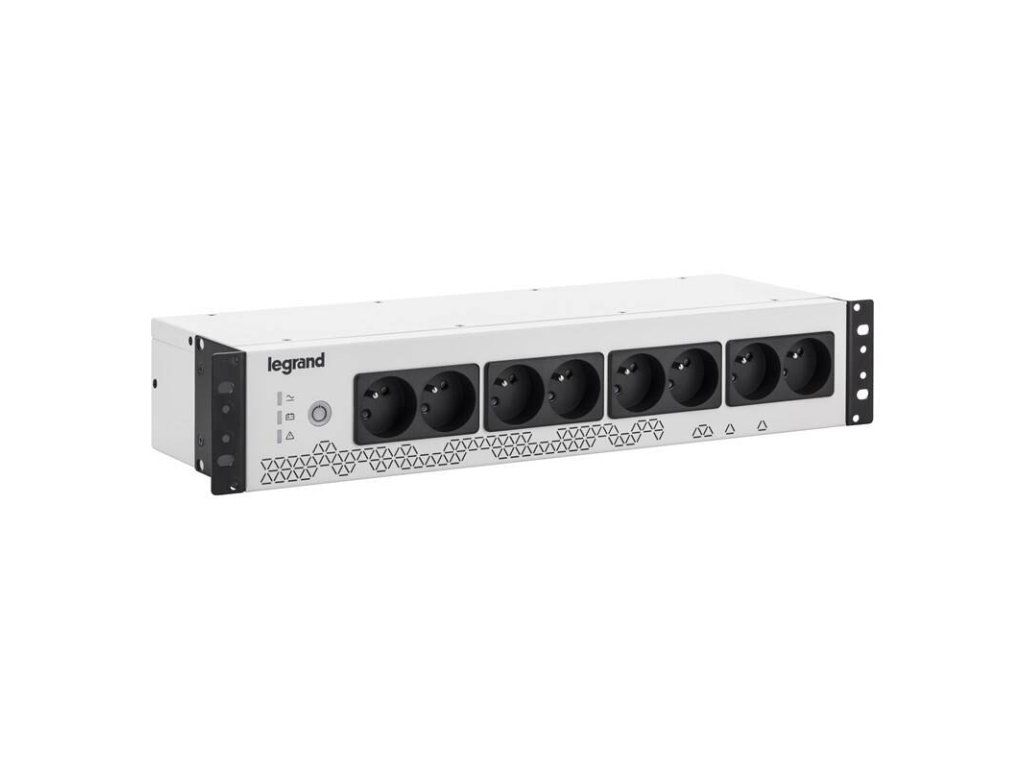

LEGRAND UPS Keor PDU 800VA/480W FR, Off-Line, Rack 2U, output 8x FR (CZ), USB

Product detailed description

Keor PDU is a new UPS specifically designed for installation in 19 inch panels and racks . Its ultra-compact PDU-style design provides 8 outlets with up to 15 minutes of autonomy in just 2 rack units. Characteristics 3 LEDs for real-time UPS status monitoring Low power consumption Cost-effective solution Multiple outlets with complete protection Up front installation and maintenance Quiet operations Less space occupied inside the cabinet Lower installation weight Ease of wiring and installation KEOR PDU 800 model General Features: Rated power (VA) 800 Active power (W) 480 Off-line VFD technology Waveform Simulated sine wave Input: 1 IEC 10A input socket Rated voltage (V) 230 Voltage range (V) 180 - 270 Frequency (Hz) 50 - 60 } 5Hz Output: Socket type: - French version - Backup: 8*CEE 7/5 Voltage (V) 230 } 10% Frequency (Hz) 50 - 60 } 1Hz Protection: Full protection Protection against deep discharge, overload and short circuit Type Fuse Battery: Number of batteries 1 Battery series Type / Voltage VRLA 9 Ah Communication and Control: LED interface bar (green/orange/red) Alarms USB HID type B visual (LED strip), audible (buzzer) Mechanical Features: Dimensions W x D x H (mm) 19" x 150 mm x 2U Net weight (kg) 5.5 Environmental Assumptions: Operating temperature ('C) 0 . 40 Relative humidity (%) < 95 (non-condensing) Noise level (dB) . 40 certification: Standards and marks EN 62040-1, EN 62040-2, CE
