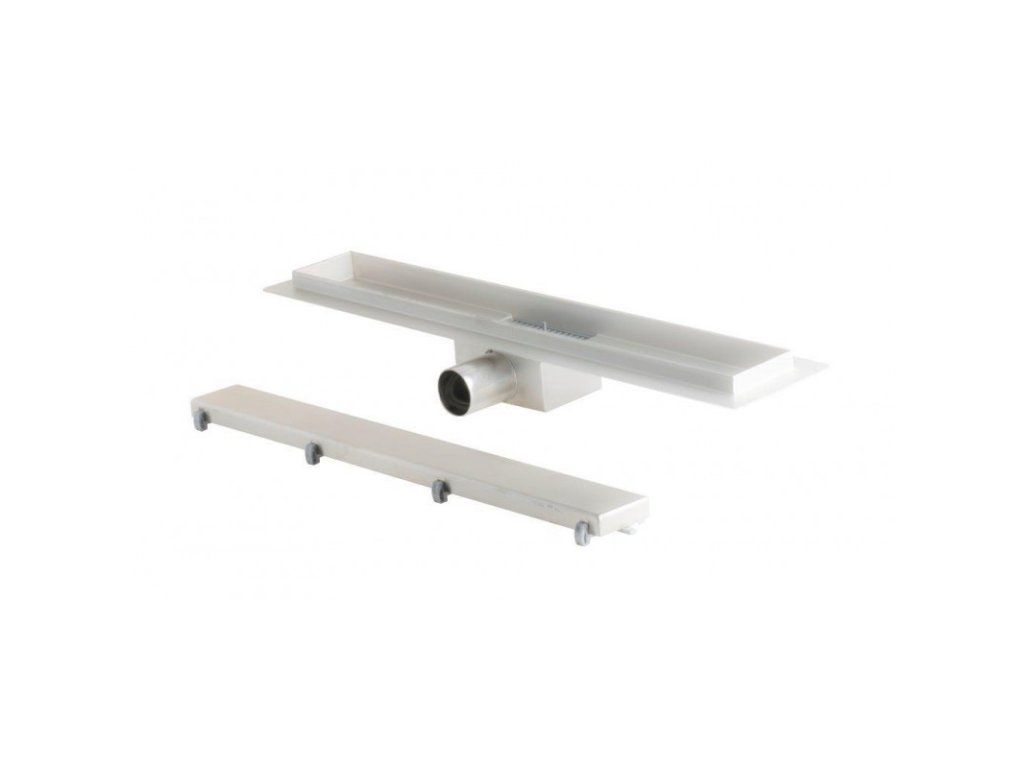

Linear shower drain SLEEK 80 cm

Product detailed description

Linear shower drains are essential components in modern wetroom and bathroom installations, ensuring efficient water removal and preventing pooling. These systems are commonly integrated into tiled enclosures, walk-in showers and spa environments where surface drainage is required. Installers must consider factors such as slope, surface material and connection compatibility to ensure optimal performance and compliance with building standards.

Correct sizing and positioning are critical for maintaining the integrity of the waterproofing layer and ensuring long-term functionality. The SLEEK model is designed to accommodate standard tiling and surface finishes, with an installation depth of 52 mm to allow for proper sealing and adjustment. The inclusion of adjustable feet and a 40 mm siphon ensures flexibility in installation across different floor types and system configurations.

Technical parameters

The technical parameters of the SLEEK 80 cm model are specifically tailored for use in wetroom applications. The 1.2 mm thick trough ensures structural rigidity while maintaining a low profile. The 40 mm siphon allows for easy cleaning and maintenance. The 52 mm installation depth is suitable for standard tiling systems, and the 62 mm width ensures compatibility with standard shower pan dimensions. These parameters are essential for determining the correct model for a given installation.

Installation and connection

Installation begins with preparing the subfloor and ensuring a consistent slope towards the drain. The drain is positioned using the included adjustable feet, which allow for fine-tuning of the level. The 40 mm siphon is connected to the waste line using standard plumbing fittings. The 40/50 mm drainage pipe must be securely connected to prevent leaks. Installers should verify that the drain is level and that the sealing compound is applied correctly around the perimeter. Common mistakes include incorrect slope, inadequate sealing and improper connection of the siphon.

Compatibility and accessories

The SLEEK 80 cm linear drain is compatible with standard 40 mm waste systems and can be integrated with conventional plumbing layouts. It is recommended to use standard 40 mm drainage pipes and fittings for the connection. No additional accessories are included with the model, but installers may need to source sealing compounds and tiling materials separately. The drain is designed for use with standard wetroom waterproofing membranes and is suitable for both residential and commercial applications.

Technical background for designers

The SLEEK model operates on a gravity-fed principle, allowing water to flow from the surface into the trough and through the siphon into the waste system. The use of AISI 304 stainless steel ensures resistance to corrosion and long-term durability. The material also allows for seamless integration with tiling and surface finishes. The design minimises noise from falling water through the use of sound-dampening spacers. The efficiency of the system is influenced by the slope of the surface, the quality of the waterproofing layer and the integrity of the siphon seal.

Service and operation

Regular inspection of the siphon and drainage connections is recommended to ensure continued performance. The siphon can be cleaned from the top, allowing for easy access without the need to remove tiles. Any signs of leakage or blockage should be addressed promptly to prevent water damage. The drain requires no scheduled service intervals but should be checked during routine maintenance of the plumbing system.

Frequently asked questions

Can the SLEEK 80 cm drain be used with a standard 40 mm waste system?
Yes, the drain is designed to connect to a 40 mm siphon and is compatible with standard waste systems.

Is it possible to adjust the height of the drain during installation?
The included adjustable feet allow for fine-tuning of the installation height to ensure a level surface.

Can the drain be installed in a tiled surface?
Yes, the drain is suitable for use with standard tiling systems and requires a minimum installation depth of 52 mm.

Is the siphon accessible for cleaning after installation?
Yes, the siphon is designed for top cleaning, allowing for maintenance without the need to remove tiles or flooring.
