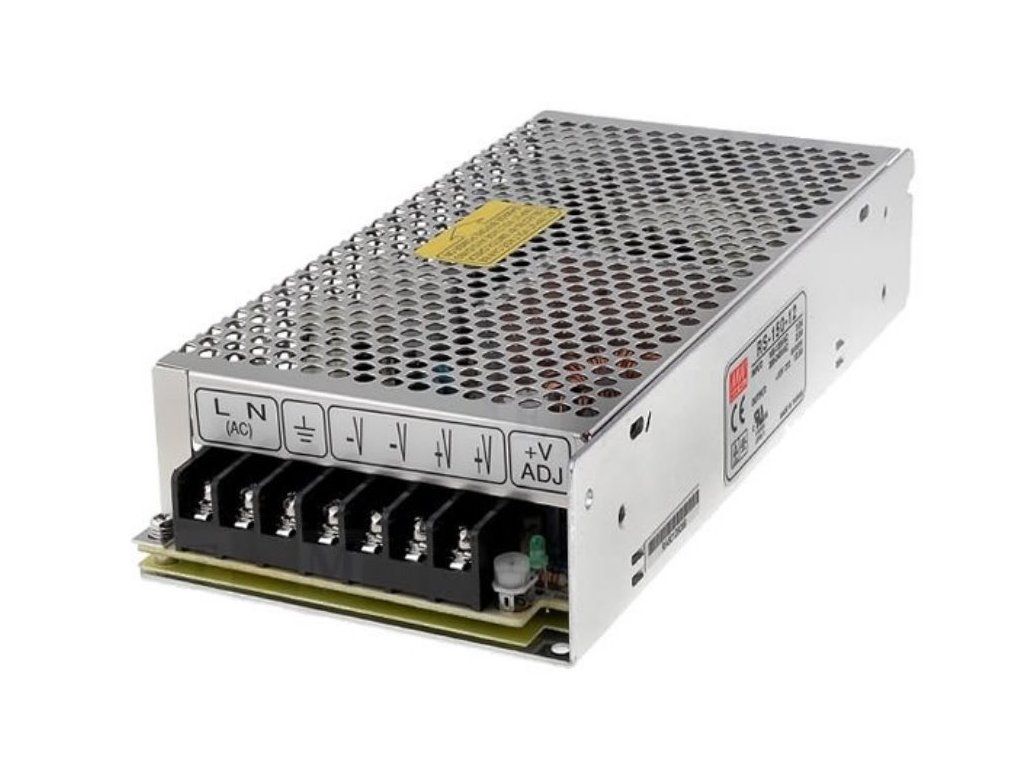

MEAN WELL RS-150-24 Switching power supply 150W 24V / 6,25A

Product detailed description

MEAN WELL RS-150-24 Switching power supply 150W 24V / 6,25A Case Single output LED status indication Passive cooling 105°C electrolytic long-life capacitors used Tested for 5G vibration Input voltage range: 88...132/176...264V AC47...63Hz and 248...373V DC Input Voltage Switch: 115V/230V Automatic shutdown on overload, re-power-on Short-circuit resistant 100% burn-in-test at full load Built-in suppression filter, low residual ripple 2.0A rated input current 230V 40A cold start shock current 230V Operating temperature range from -25 to +70°C (higher temperatures tested) Overload protection: 110...150% Overvoltage protection: 115...135% Insulation voltage from input to output 3000V AC Insulation voltage from input to ground cable 1500V AC Insulation voltage from output to ground cable 500V AC Insulation resistance from input to output: 100M? Insulation resistance from input to ground cable 100M? Insulation resistance from output to ground cable 100M? 28 ms - bridging time for 230V mains failure Dimensions: 199x98x38 Weight: 700g Technical parameters Physical characteristics Construction Power input and output Operating Temperature [°C]: -25 to 70 Weight [g]: 700 Depth [mm]: 200 Width [mm]: 98 Height [mm]: 38 Power supply Power [W]: 150 Output voltage [V]: 24 Output current [A]: 6.5
