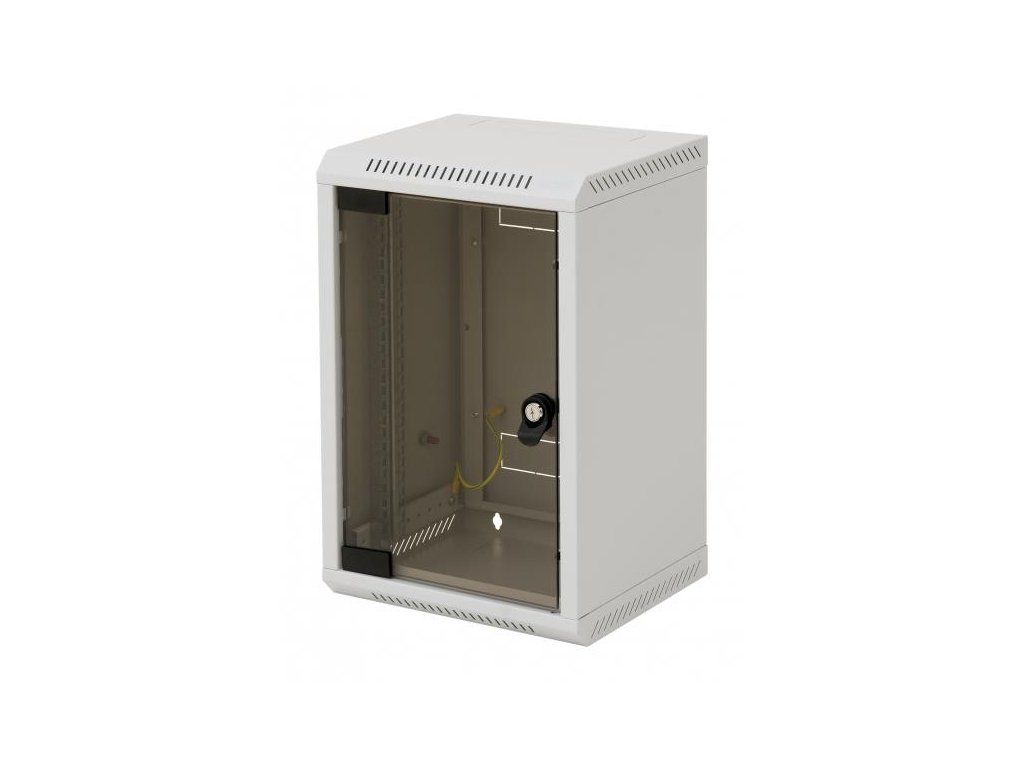

Rack Triton 10" one-piece 6U/260mm glass door, grey

Product detailed description

The RACK TRITON 10" is a wall-mounted rack that can be used for small projects. It can carry a maximum load of 20 kg and is available in neutral grey. The cabinet doors are made of 5 mm safety tempered glass as standard, but can be made of steel sheet or perforated on request. For easy access, the hinge system allows the door to be opened at an angle of almost 180° or the door can be easily removed. - 10" wall-mounted cabinet with IP 30 protection - The switchboard is directly mounted on the wall. - Two adjustable vertical rails are included. - Panel construction: - Compact welded switchboard - All-glass door with 4 mm safety tempered glass. On request, all-panel or perforated. - The permissible load for each door is max. 10 kg. - The minimum thickness of the surface finish is 65 µm. - The switchboards are designed for the installation of data and telecommunications equipment and its distribution systems. - The frame of the switchboard and all separable parts (side and rear covers, doors, etc.) are connected by means of interconnecting cables which must be thoroughly attached and inserted into the connectors throughout the use of the switchboard. - There is an M5 screw on the side wall of the enclosure for connecting the interconnection. - Cable entries covered with breakaway plugs are located at the top and bottom of the rear wall of the switchboard, others are on the top and bottom wall of the switchboard. Technical parameters: Type: wall-mounted, two-piece Pitch: 10" Protection: IP30 Door: glazed Height. 6 U Dimensions wxh: 310x260 mm Colour: grey Weight: 6,9 Kg Max. load: 20 Kg Included with the rack: 2 x front door key 4 x 6x50 screws 4 x washer 6,6 4 x dowel 10 8 x floating nuts M6 Conditions of use - Operating environment: - Office - The switchboard is not intended for outdoor installations and for installations in environments that may adversely affect the functionality of the switchboard and installed equipment (e.g., explosive or wet and humid environments) - Must be protected against: - Mechanical damage - Improper handling - Use other than that for which the enclosure is intended - Improper handling is in particular: - Overloading (exceeding the maximum recommended load capacity) - Installation of equipment that may adversely affect the operation and function of the switchboard or installed equipment - Interference with the construction and design of the switchgear Installation of the switchboard - This type of switchboard is hung directly on the wall using screws, dowels and washers (supplied). The spacing of the holes for hanging is marked with "R" on the switchboard diagram. - To ensure the maximum recommended load capacity, it is essential that the enclosure is mounted on a wall of adequate load capacity (brick, concrete or similar) and that the installed load is evenly distributed in the enclosure. Environmental protection - All parts are made of recyclable materials and must be disposed of in accordance with the applicable regulations when the enclosure is discarded. Certificates and Conformity - This product is certified by ITI TÜV, certificate number 06.140.500, revision No. 1, dated 3 January 2013 and fully complies with EN 62208 ed.2:2012(EN 62208:2011).
