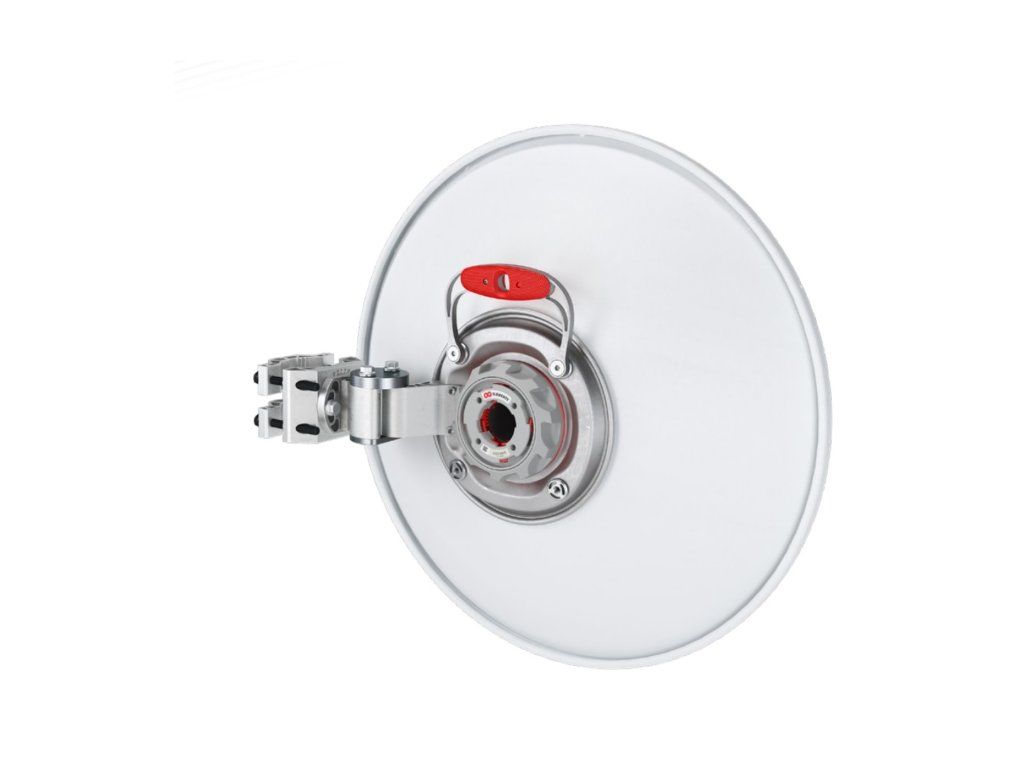

RF elements UltraDish UD29WB Directional parabolic antenna with TwistPort, 5/6GHz, 29 dBi

Product detailed description

RF elements UltraDish UD29WB Directional parabolic antenna with TwistPort, 5/6GHz, 29 dBi The UltraDish™ 29 WB has been manufactured for CPE in the 5 & 6 GHz band with higher gain requirements. Key Features Suitable for 5 & 6 GHz unlicensed band Gain 29 dBi Excellent VSWR TwistPort™ connector. Connect directly or use TPA with coaxial connectors High-end design with innovative materials Constructed from high quality aluminum for extreme outdoor durability including saltwater environments Aluminum construction for reduced weight UBR mounting bracket with two-pole clamp for better attachment Coated stainless steel Superior ergonomics with integrated handle for easy gripping Optional side strut for increased wind resistance Optional cover Technical parameters Wireless featuresMIMO, SISO: 2 x 2 - Polarization: VH - Forward Backscatter Ratio [dB]: 40 - Wireless frequencies: 5 GHz, 6 GHz - Elevation angle (-6dB) [°]: 7.6 - Beam angle in azimuth plane (-6dB) [°]: 7.6 - Antenna type: Directional - Antenna gain [dBi]: 29 Physical characteristics - Designed for mast diameter [mm]: 40 to 80 - Wind resistance [km/h]: 160 - Degree of protection: IP65 - Application: outdoor - Material: Aluminium, UV stable ABS plastic, Stainless steel - Operating temperature [°C]: -35 to 60 - Weight [kg]: 4.2 - Width [mm]: 618 - Height [mm]: 618 - Depth [mm]: 263
