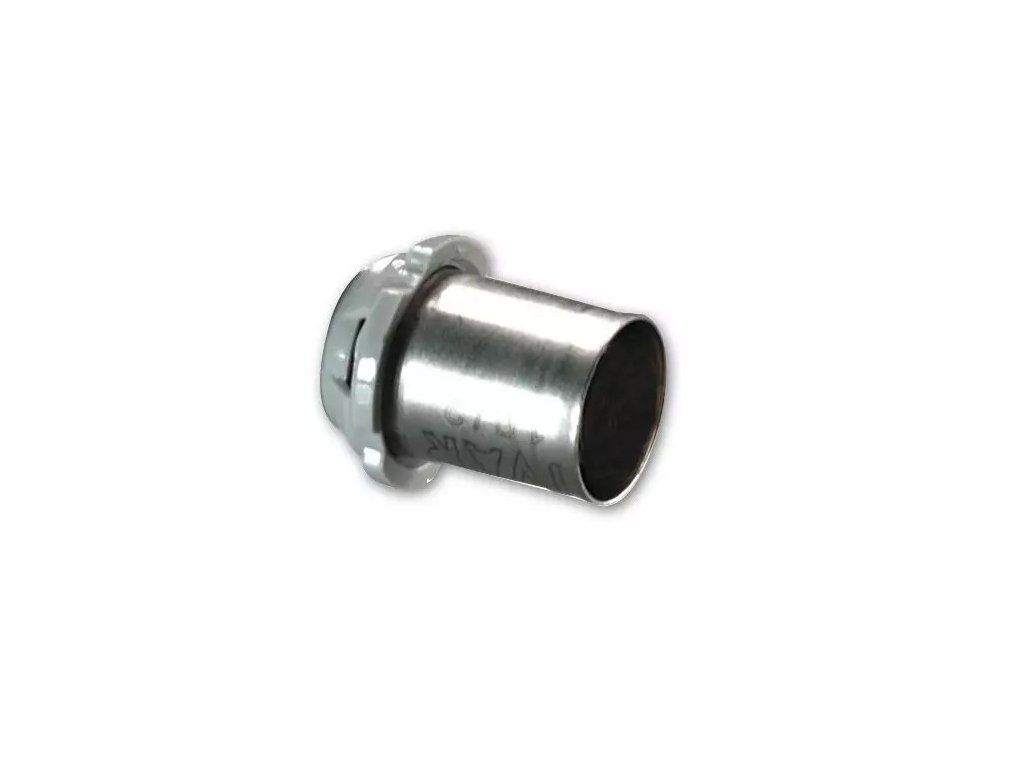

Sleeve - for PRESS fittings brass - 40x3,5 IVAR.O-PRESS

Product detailed description

This sleeve is commonly used in industrial and irrigation systems where reliable and durable connections are required. It is suitable for applications involving non-potable water and dry compressed air. Installers working in industrial facilities, agricultural irrigation systems, and pneumatic systems will find this component useful for ensuring secure and leak-free connections. The sleeve is designed to work with brass PRESS fittings and is selected based on the system's hydraulic requirements and the type of media being transported.

Correct selection of the sleeve ensures compatibility with the system's operating conditions and the materials used in the piping network. The stainless steel construction provides resistance to corrosion and mechanical stress, making it suitable for environments with high humidity or chemical exposure. The sleeve is sized to fit specific fitting dimensions and is used in conjunction with other components to create a secure and long-lasting connection.

Technical parameters

The material of the sleeve is stainless steel, which provides high durability and resistance to corrosion. The dimensions of the sleeve are 40x3.5 mm, which is essential for ensuring compatibility with the corresponding fittings. These parameters are critical for selecting the correct sleeve for the intended application and ensuring proper system performance.

Installation and connection

During installation, the sleeve should be carefully positioned over the pipe before the fitting is applied. The sleeve must be aligned with the fitting to ensure a secure and leak-free connection. The connection size is 40x3.5 mm, and it is important to verify that the sleeve fits correctly with the fitting. Common installation mistakes include misalignment of the sleeve and improper positioning, which can lead to leaks or reduced system efficiency. Installers should also check that the sleeve is not damaged and that the fitting is applied with the correct force to avoid over-tightening or under-tightening.

Compatibility and accessories

This sleeve is specifically designed for use with IVAR brass PRESS fittings. It is compatible with systems that use non-potable water and dry compressed air. To complete the installation, additional components such as the fitting and pipe may be required. Installers should ensure that all components are from the same manufacturer and are compatible with each other to avoid issues with system performance.

Technical background for designers

The sleeve functions as a reinforcement component in the connection between the pipe and the fitting. It is made of stainless steel, which provides high strength and resistance to corrosion. The sleeve is designed to withstand the mechanical stresses and environmental conditions typical of industrial and irrigation systems. The integration of the sleeve into the system ensures a secure and long-lasting connection. The service life and efficiency of the sleeve are influenced by the quality of the installation, the operating conditions, and the compatibility of the materials used in the system.

Service and operation

Regular inspection of the sleeve is recommended to ensure that it remains in good condition and continues to function effectively. Installers should check for signs of wear, corrosion, or damage that could affect the connection. If any issues are detected, the sleeve should be replaced to maintain system integrity. No specific service intervals are provided in the brief, but it is advisable to inspect the sleeve during routine maintenance checks.

Frequently asked questions

Can this sleeve be used with other types of fittings?
This sleeve is specifically designed for use with IVAR brass PRESS fittings. It is not recommended for use with other types of fittings as it may not provide a secure connection.

Is this sleeve suitable for use with potable water?
No, this sleeve is not suitable for use with potable water. It is intended for use with non-potable water and dry compressed air.

What are the key advantages of using stainless steel for this sleeve?
Stainless steel provides high durability and resistance to corrosion, making it suitable for environments with high humidity or chemical exposure. It also ensures a long service life and reliable performance.

How can I ensure that the sleeve is correctly installed?
Ensure that the sleeve is aligned with the fitting and that the fitting is applied with the correct force. Check for any signs of misalignment or damage before completing the installation.
