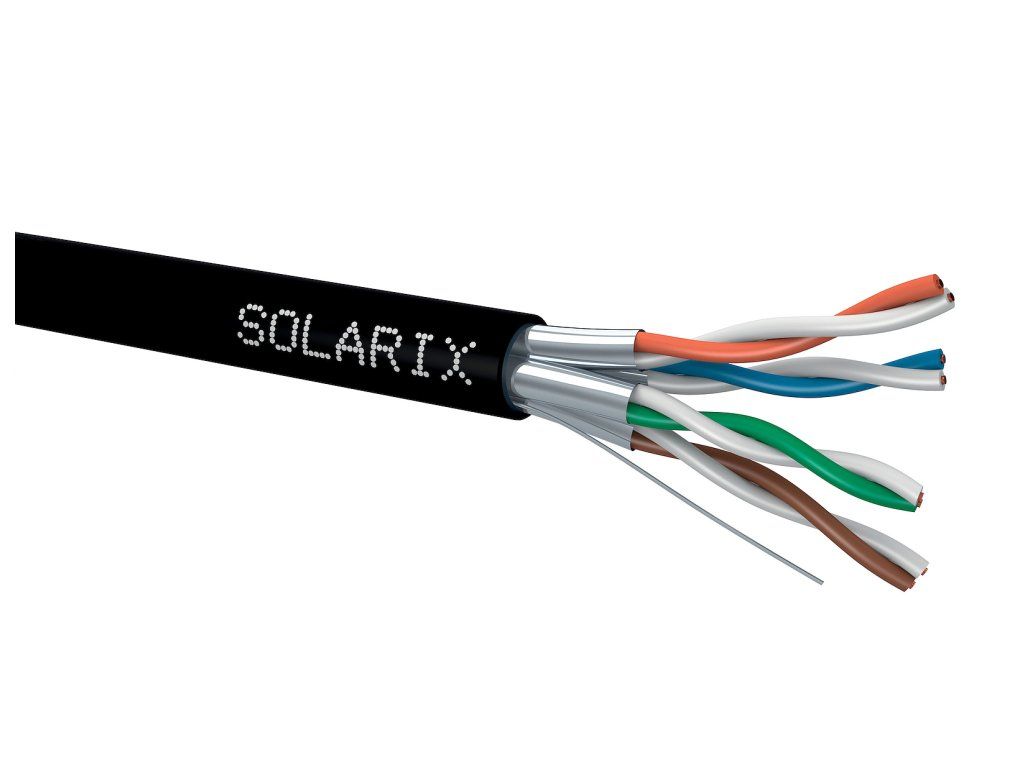

Solarix cable CAT6A STP wire 500m coil PE Fca outdoor, SXKD-6A-STP-PE

Product detailed description

The Solarix installation cable, labeled SXKD-6A-STP-PE, is a high quality Category 6A shielded cable designed for high-speed Ethernet protocols, including 10GBASE-T. The construction of the cable is U/FTP, UV stable PE jacket type with Fca reaction to fire class and IP67 rating. The conductors of the cable are made of high quality copper wire with 99.97% copper purity. The cable easily meets the requirements of the international standards ISO/IEC 11801, EN 50173 and ANSI/TIA 568.2-D. Like other Solarix cables, the SXKD-6A-STP-PE cable is marked with meter gauges in 1 m increments ranging from 0 to 500 m. The cable is supplied on a high-strength wooden spool that displays all necessary product information, including barcodes, production lot, description and key technical parameters. This cable is not intended for permanent installation in water or in the ground without adequate proper protection. Key features of the Solarix Category 6A cable Specifications: CAT6A Supported protocols: 10GBASE-T and below Shielding: foil around each pair Bandwidth: 500 MHz Conductor type and size: copper wire 0.56 mm ± 0.005 mm Insulation and conductor diameter with insulation: skin-foam-skin PE 1, 33 mm Class of reaction to fire; sheath type: Fca; PE Sheath colour: black RAL 9005 Nominal cable diameter: 7, 3 mm Weight: 46, 2 kg/km NVP: 75 % Propagation delay: 480 ns/100 m Delay skew: 45 ns/100 m Storage temperature: -20 °C to 70 °C Operating temperature: -20 °C to 70 °C Installation temperature: 0 °C to 50 °C Packaging: 500 m, wooden coil Package dimensions (diameter x height): 380 mm x 390 mm Number of packs per pallet: 27 coils
