Solarix cable CAT7 SSTP wire 500m coil LSOHFR B2 ca s1 d1 a1 1000 MHz, SXKD-7-SSTP-LSOHFR-B2ca

Product detailed description

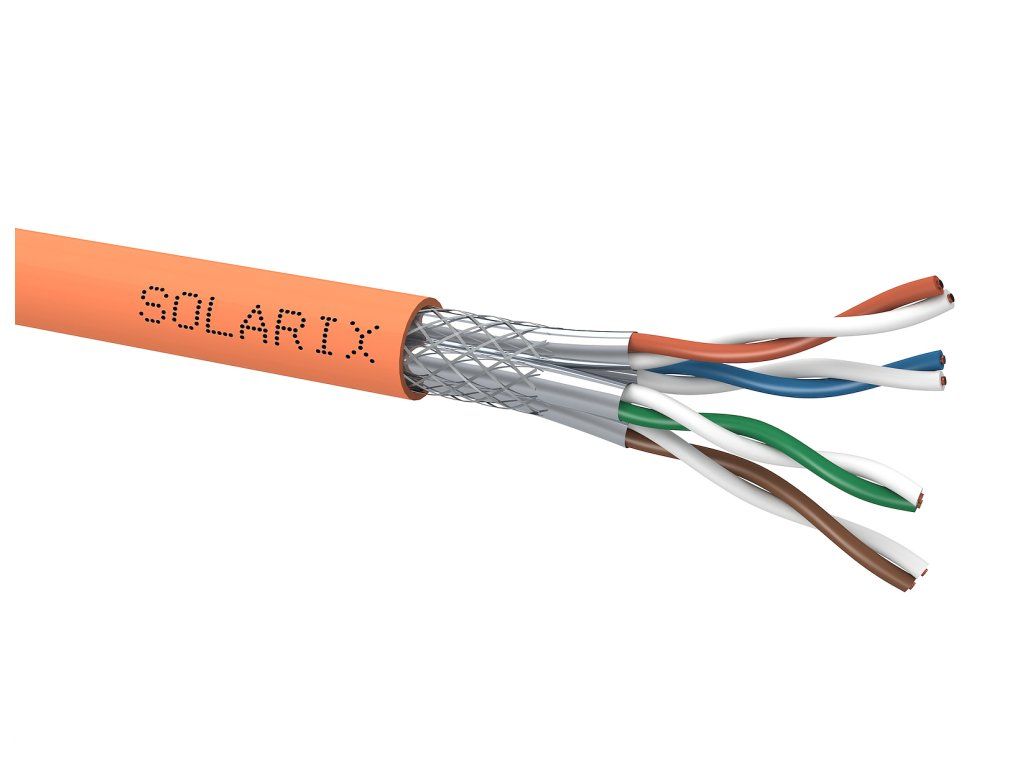

The Solarix installation cable, labeled SXKD-7-SSTP-LSOHFR-B2ca, is a high quality Category 7 double shielded cable that is tested up to 1000 MHz bandwidth and is designed for high speed Ethernet protocols, including 10GBASE-T. The cable construction is S/FTP, LSOHFR jacket type with a reaction to fire class B2ca-s1,d1,a1. The cable conductors are made of high quality copper wire with 99.97% copper purity. The cable easily meets the requirements of the international standards ISO/IEC 11801 and EN 50173. The performance parameters of this cable have been tested by the independent testing laboratory FORCE TECHNOLOGY within the EC Verified program to the highest level, the Component Level. The certificate is available here on the website under "Downloads" or directly on the FORCE laboratory website. In the case of CPR (EU Regulation No. 305/2011), the cable is tested in the AVCP 1+ performance assessment system and also complies with Decree No. 23/2008 of the Ministry of the Interior of the Czech Republic and Decree No. 268/2011 on technical conditions for fire protection of buildings and is suitable for the uses corresponding to the cable with this class of reaction to fire, which are defined in Annex 2 of these decrees. The SXKD-7-SSTP-LSOHFR-B2ca cable has also passed the vertical flame propagation test on cable bundles according to EN 60332-3-22 Category A (also known as IEC 60332-3A) Like other Solarix cables, the SXKD-7-SSTP-LSOHFR-B2ca cable is marked with a metre gauge in 1 m increments ranging from 0 to 500 m. The cable is supplied on a high-strength wooden spool, on which all necessary product information is provided, including barcodes, production lot, description and the most important technical parameters. Key features of Solarix Category 7 cable Specifications: CAT7 Supported protocols: 10GBASE-T and below Shielding: foil around each pair and braid Bandwidth: tested up to 1000 MHz Conductor type and size: copper wire 0.57 mm ± 0.005 mm Insulation and conductor diameter with insulation: skin-foam-skin PE 1, 33 mm Class of reaction to fire; sheath type: B2ca-s1,d1,a1; LSOHFR according to EN 60332-3-22 Sheath colour: orange RAL 2003 Nominal cable diameter: 7, 8 mm Weight: 58 kg/km NVP: 79 % Propagation delay: 480 ns/100 m Delay skew: 25 ns/100 m Storage temperature: -20 °C to 60 °C Operating temperature: -20 °C to 60 °C Installation temperature: 0 °C to 50 °C Packaging: 500 m, wooden coil Package dimensions (diameter x height): 380 mm x 390 mm Number of packs per pallet: 27 coils
