Solarix industrial universal RJ45 CAT6A STP connector, SXRJ45-6A-STP-BK-SA

Product detailed description

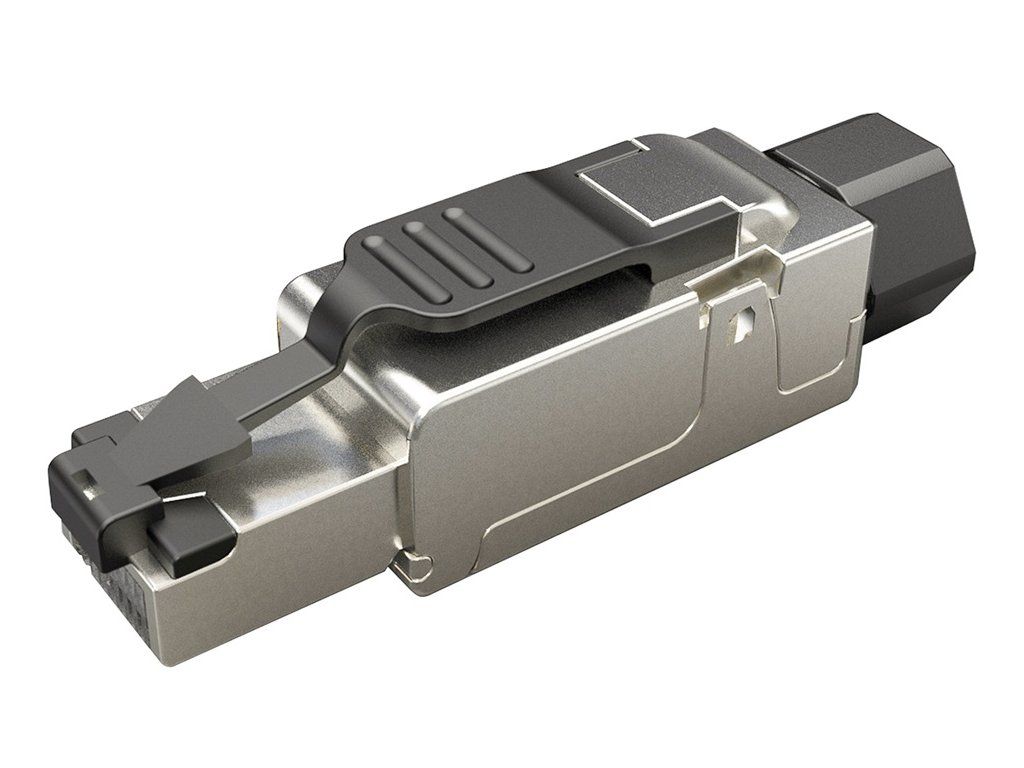

The Solarix self-tapping connector SXRJ45-6A-STP-BK-SA is a universal RJ45 industrial connector designed for both wire and stranded cables. It is characterized by easy and quick installation, which does not require crimping pliers. The high reliability and robust metal design of this connector allows it to be used even in the most demanding conditions. This Solarix connector seamlessly meets all the requirements defined in the international standards TIA 568, ISO/IEC 11801 and EN 50173, including all the latest additions for category 6A. The Solarix Category 6A self-tapping connector can be used to terminate cables up to 8.0 mm in overall diameter with conductors up to 1.50 mm in diameter (including PE insulation). The connector is disassembled and is therefore also designed for reuse. Key features CAT6A Supported Protocols: 10GBaseT Connector Type: RJ45 self-tapping Shielding: yes Wire Type: For wire and stranded (AWG 26-23) Folded: yes Contact positions: 8p8c Contact cover: 50 µ gold Storage temperature: -40 to 70°C Operating temperature: -25°C to 70°C Max. operating humidity: 93%
