Solarix patch panel 24xRJ45 CAT5E UTP with tie bar black 0,5U SX24HD-5E-UTP-BK

Product detailed description

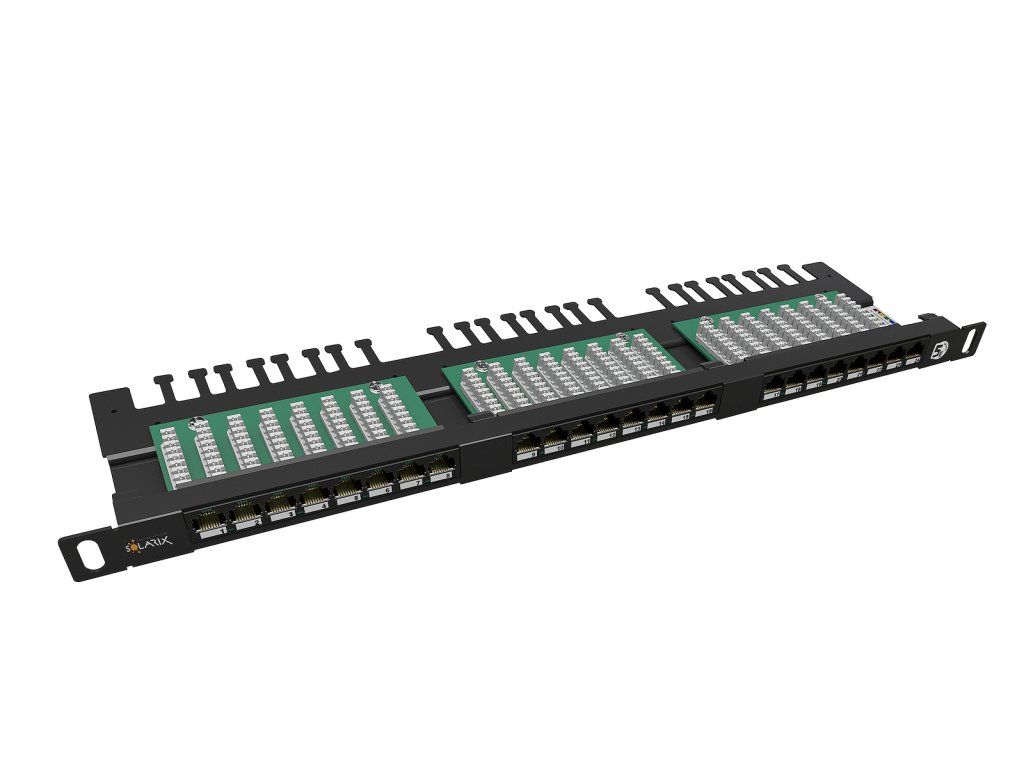

The Solarix patch panels, labeled SX24HD-5E-UTP-BK, are high-density 19" patch panels with a height of 0.5U that are equipped with 24 RJ45 ports and dual 110/Krone IDC terminals. The emphasis with these panels is on maximum space saving in the rack, where up to 48 ports can be easily installed in a 1U height. These high-density Solarix panels are available in both shielded and unshielded versions and seamlessly meet the requirements defined in the international standards ANSI/TIA 568, ISO/IEC 11801 and EN 50173 including all the latest additions for Category 5E and Class D wiring. The body of these panels includes a tie bar that allows for a tight fit and a clear arrangement of the data cable. The color of the Solarix unshielded high-density patch panel is black. Key features of Solarix 0.5U patch panels Specifications: CAT5E Supported protocols: 2.5/5GBASE-T and below* Number of ports: 24 Shielding: no Tie bar: yes Min. port life: 1000 connections/disconnections Contact Coverage: 50 µ gold and 100 µ nickel Terminal block: dual 110/Krone 8p8c Min. terminal life: 200 notches Wire size and type: AWG 26 - 22, wire Material of non-metallic parts: FR plastic according to UL94-0 Color: Black Size: 0, 5U Height: 22 mm Width: 484 mm Depth: 100 mm Storage temperature: -40 to 70°C Operating temperature: -10 to 60°C Max. operating humidity: 93% Packing: 1 piece, carton Package dimensions (height x width x depth): 35 mm x 540 mm x 125 mm Shipping Package: 14 pcs, carton box Shipping package dimensions (height x width x depth): 240 mm x 550 mm x 270 mm Mounting kit included: 2 x M6
