Solarix rack LC-18 LITE, 3U and 4U rails, 540x540x180mm, grey RAL7035

Product detailed description

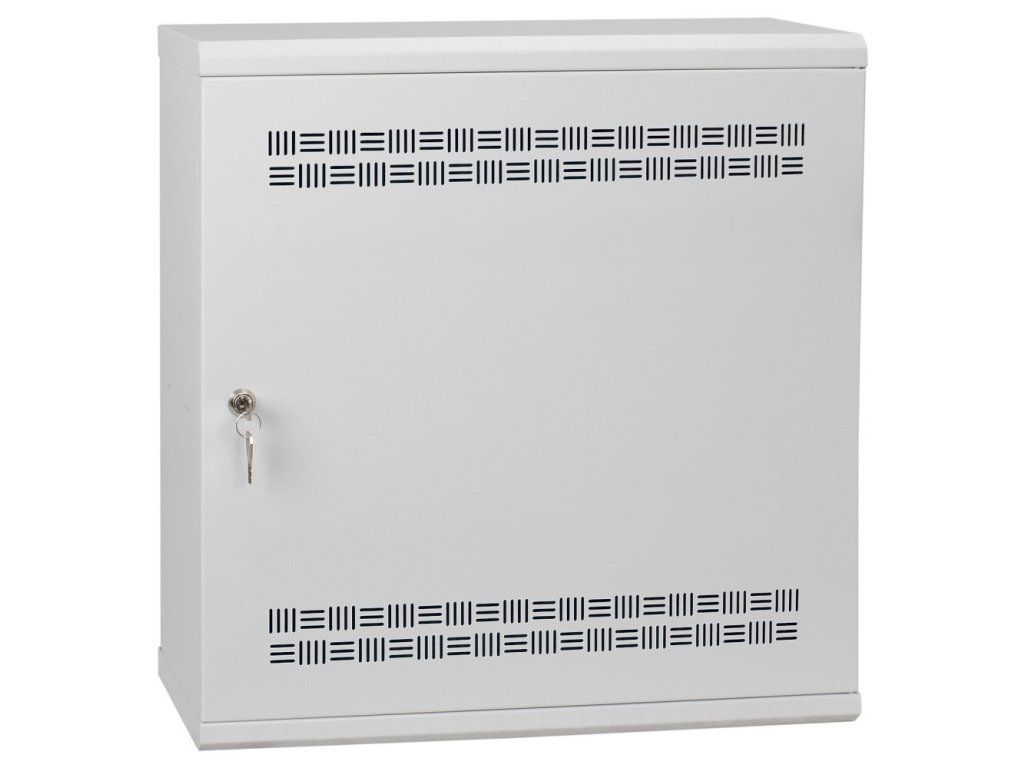

The modern wall-mounted data cabinet Solarix LC-18 LITE is designed for installation of small-scale network cabling elements or for installation of telecommunication distribution elements. The Solarix LC-18 LITE switchboard consists of a skeleton that is characterized by high strength and rigidity. From the front side, the switchboard is equipped with a metal door and a metal lock with a patent key. the 19" fixed rails have 3U and 4U dimensions. The sheet metal door is complete with perforations for passive ventilation of the equipment located in the cabinet. Cable entry is provided by pre-punched holes in the top and bottom of the cabinet and in the back of the cabinet. The rear wall of the cabinet contains ready-made breakaway loops for cable spares. The rear wall contains holes for mounting the enclosure on the wall. Standard design: outside dimensions (W x H x D) 540 x 540 x 180 mm 2 pairs of vertical 19" rails included, 3U and 4U 180° opening door, choice of right or left closing perforated front door with single-point click lock cable gaps at the bottom, top and rear 4 holes with a diameter of 6,5 mm at the rear for fixing degree of protection IP 20 Colour version: powder coated in light grey RAL 7035 Technical parameters - Height: 3U horizontally, 4U vertically - Height: 540 mm - Width: 540 mm - Depth: 180 mm - Weight: 7.5 kg - Colour: RAL 7035
