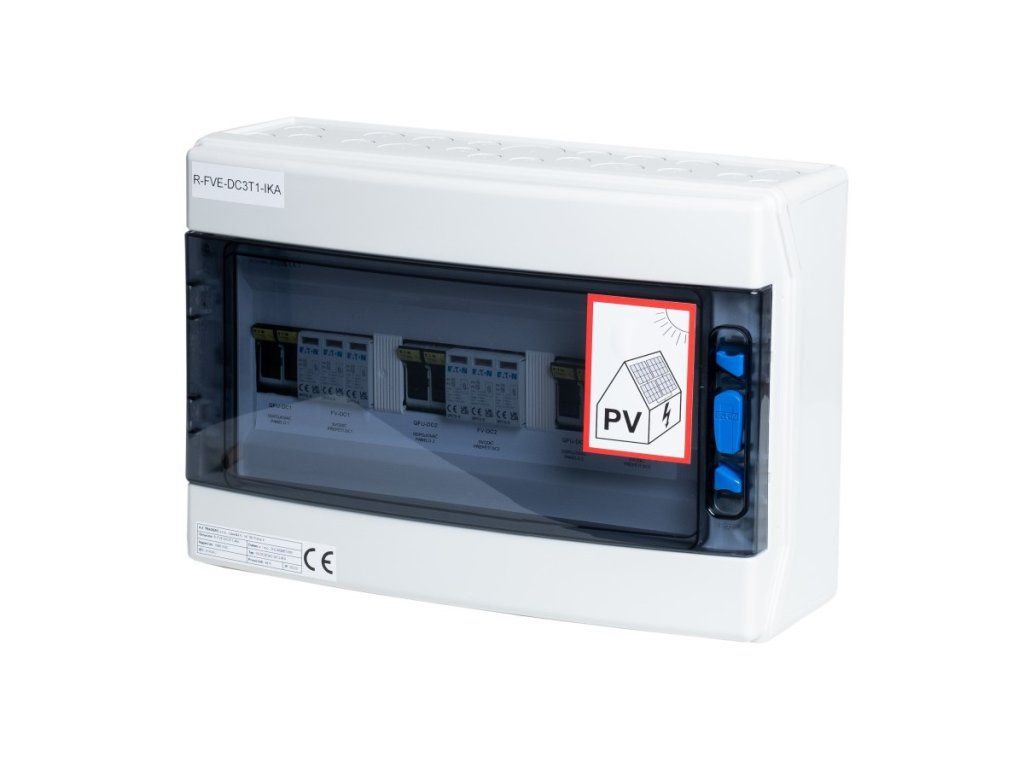

Switchboard AZT DC3, T1+T2 IKA (1000V DC / 32A) for 3 strings IP65 certified

Product detailed description

Complete certified DC switchboard including test report for wall mounting, IP65, serving as an input switchboard from PV panels (to inverter) for the entire portfolio of PV power plants. Its advantage is its small size, the possibility to "stack" with other AC switchgear side by side or underneath, making it possible to install it even in a space-challenged area. The switchgear is fitted with a DC surge arrester with fuse disconnectors including gPV fuses to protect the DC input to the inverter. Component list 1x EATON, IKA-1/18-ST, Switchgear for plasterboard IP65, transparent door, 1 row, 18 modules 2x EATON, SPPVT12-10-2+PE, Surge arrester T1+T2 (I+II, B+C), photovoltaic applications 1000V DC, max.short-circuit current 1000A 4x EATON/ETI/OEZ, CH10x38 gPV 15A/1000V DC, Ultra fast cylindrical fuse for photovoltaic applications, (UL standard), 10x38mm, 1100V DC, 15A 2x EATON, CHPV2U, Fuse disconnector, photovoltaic applications, 2-pole, 1000V AC / 30A, C10 (10x38mm) Notice: The device must only be installed by an authorised person with an electrical qualification. Incorrect wiring/setting of the product and other components in the installation may lead to damage and irreversible damage and electric shock. Claims due to incorrect wiring/setting cannot be accepted. We are not responsible for improper wiring and any damage caused by it.
