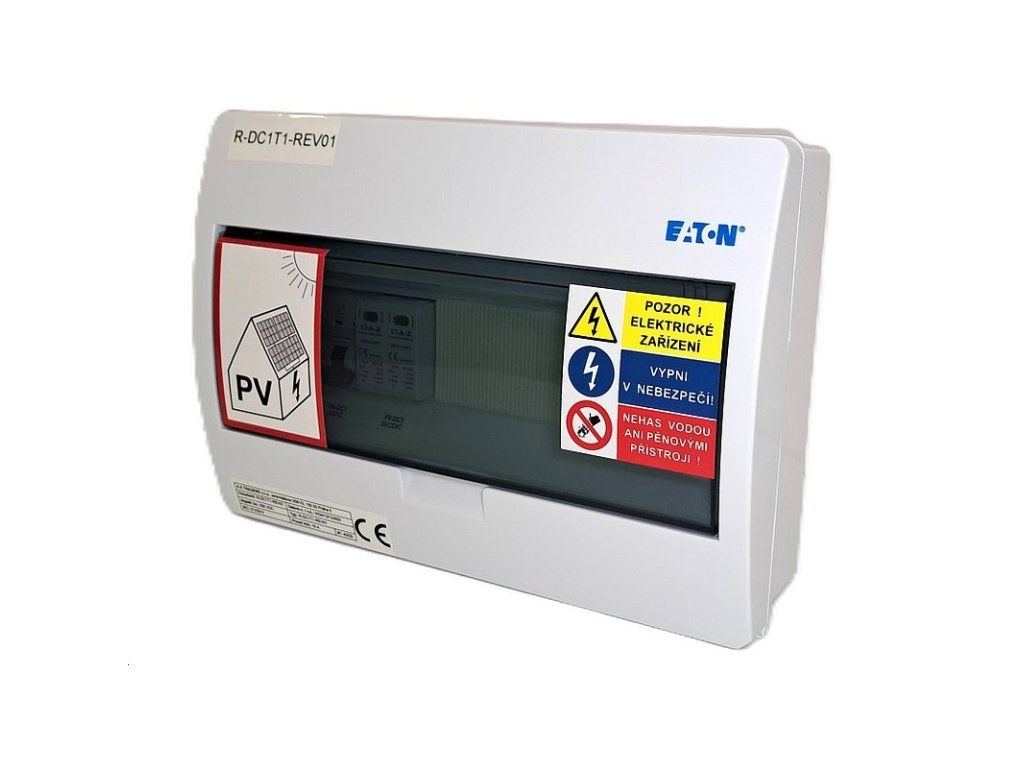

Switchboard EATON R-DC1T1-Rev01, T1+T2 (500V DC / 15A) for 1 string IP40 certified

Product detailed description

Certified EATON T1+T2 switchboard up to 500 V DC for 1 string including test report for wall mounting with IP40 protection. It serves as an input switchboard from PV panels (to the inverter) when using water heating technology or PV strings. Complete certified EATON DC switchboard including test report for wall mounting, IP40 serving as input switchboard from PV panels (to inverter) when using technology for water heating or PV strings up to 500 V DC. The switchboard is equipped with a DC surge arrester of class T1+T2 and a two-pole DC circuit breaker to protect the DC input to the WATER INVERTOR or other inverter for water heating. Component list - 1x EATON, BC-O-1/12-ECO - Switchboard for plasterboard, transparent plastic door, 1 row, 12 modules - 1x AZT, GSP9-C40PV - Surge arrester T1+T2 (I+II, B+C), photovoltaic applications 600V DC, In 20kA, Imax 40 kA - 1x AZT, GYM9-DC B15 6kA - Circuit breaker, photovoltaic applications, 2-pole, 500V DC / 15A, short circuit resistance 6kA Notice: The device may only be installed by an authorised person with an electrical qualification. Incorrect wiring/setting of the product and other components in the installation can lead to damage and irreversible damage and electric shock. Claims due to incorrect wiring/setting cannot be accepted. We are not responsible for improper wiring and any damage caused by it.
