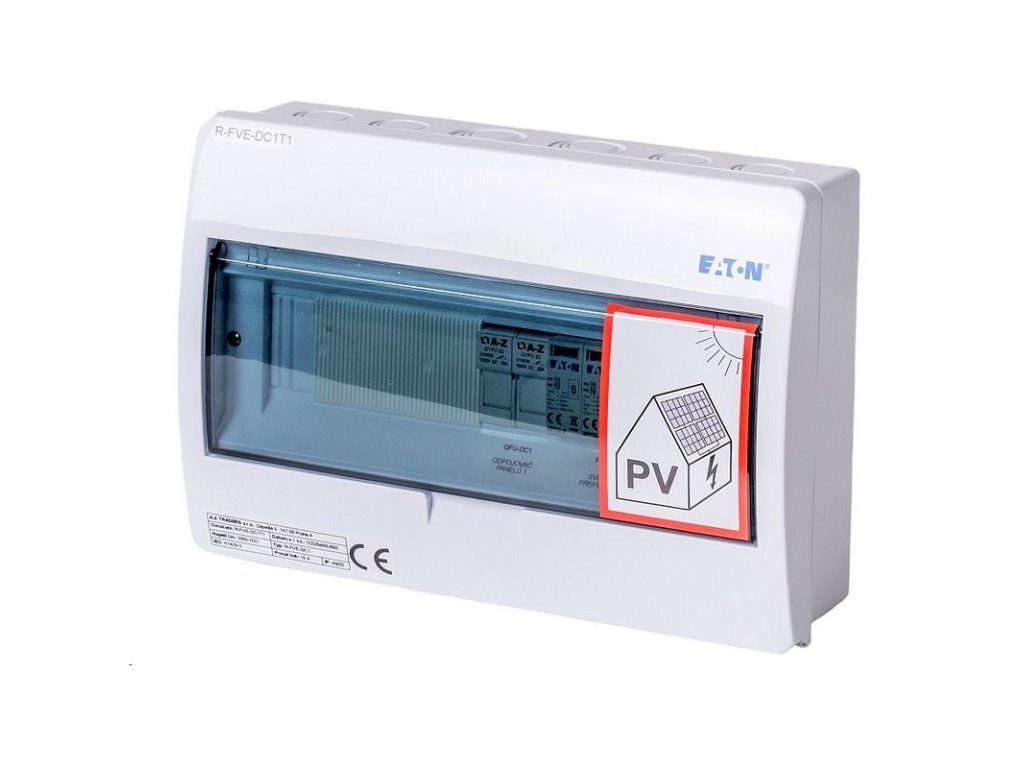

Switchboard R-FVE-DC1T1 EATON, T1+T2 (1000V DC / 32A) for 1 string IP40 certified

Product detailed description

Certified DC1 switchboard EATON T1+T2 (protection class I+II) for 1 string including test report for wall mounting, IP40 serving as input switchboard from PV panels (to inverter) for the entire portfolio of PV power plants. Complete certified DC switchgear including test report for wall mounting, IP40, serving as an input switchgear from PV panels (to inverter) for the entire PV power plant portfolio. The switchboard is equipped with a DC surge arrester with fuse disconnectors including gPV fuses for DC input protection to the inverter. The individual components mounted on the DIN rail are already interconnected, which ensures time-saving installation. Component list - 1x EATON, BC-O-1/12-ECO - Switchboard for plasterboard, transparent plastic door, 1 row, 12 modules - 1x EATON, SPPVT12-10-2+PE - Surge arrester T1+T2 (I+II, B+C), photovoltaic applications 1000V DC, max.short-circuit current 1000A - 2x EATON/ETI/OEZ, CH10x38 gPV 16A/1000V DC - Ultra fast cylindrical fuse for photovoltaic applications, (UL standard), 10x38mm, 1100V DC, 15A - 1x EATON, CHPV2U - Fuse disconnector, photovoltaic applications, 2-pole, 1000V AC / 30A, C10 (10x38mm) Notice: The device may only be installed by an authorized person with an electrical qualification. Incorrect wiring/setting of the product and other components in the installation may lead to damage and irreversible damage and electric shock. Claims due to incorrect wiring/setting cannot be accepted. We are not responsible for improper wiring and any damage caused by it.
